PLAN 84-397
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Full Specs & Features
Dimension
Depth : 71'
Height : 27' 4"
Width : 89'
Height : 27' 4"
Width : 89'
Area
First Floor: 3082 sq/ft
Garage: 793 sq/ft
Porch: 189 sq/ft
Garage: 793 sq/ft
Porch: 189 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 10'
Roof
Primary Pitch : 10:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Shingle
Framing : 2"x4"
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Hobby Rec Room Game Room
Master Sitting Area
Storage Area
Master Sitting Area
Storage Area
Garage Features
Oversized Garage
Rear Entry Garage
Rear Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch
More
Jack & Jill Bath

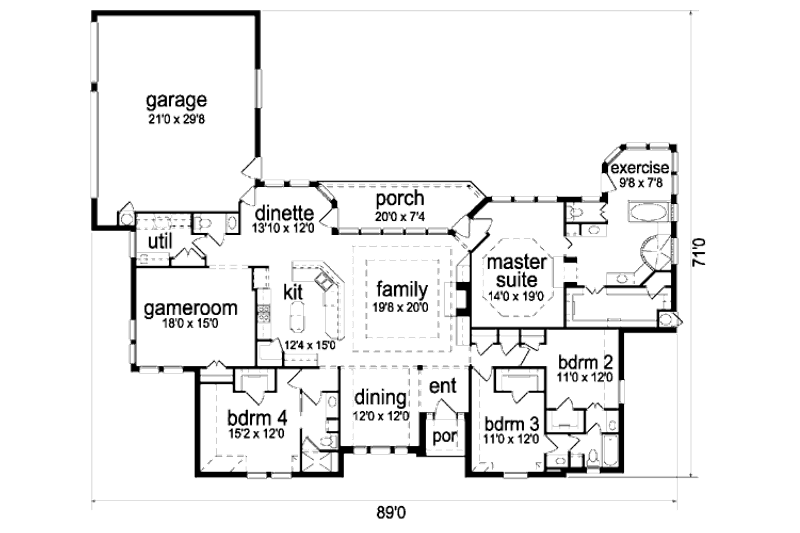

Rooms
Bedroom 2:
132 sq/ft width 11' x depth 12'
Bedroom 2 closet:
19 sq/ft width 5' 8" x depth 3' 4"
Bedroom 3:
132 sq/ft width 11' x depth 12'
Bedroom 3 closet:
24 sq/ft width 7' 4" x depth 3' 4"
Bedroom 4:
182 sq/ft width 15' 2" x depth 12'
Bedroom 4 closet:
20 sq/ft width 6' x depth 3' 4"
Dinette:
166 sq/ft width 13' 10" x depth 12'
Dining:
144 sq/ft width 12' x depth 12'
Exercise:
74 sq/ft width 9' 8" x depth 7' 8"
Family Room:
393 sq/ft width 19' 8" x depth 20'
Game Room:
270 sq/ft width 18' x depth 15'
Garage:
623 sq/ft width 21' x depth 29' 8"
Kitchen:
185 sq/ft width 12' 4" x depth 15'
Master bath:
203 sq/ft width 16' x depth 12' 8"
Master Bedroom:
266 sq/ft width 14' x depth 19'
Master WIC:
96 sq/ft width 16' x depth 6'
Utility Room:
83 sq/ft width 10' 4" x depth 8'
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale
- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.

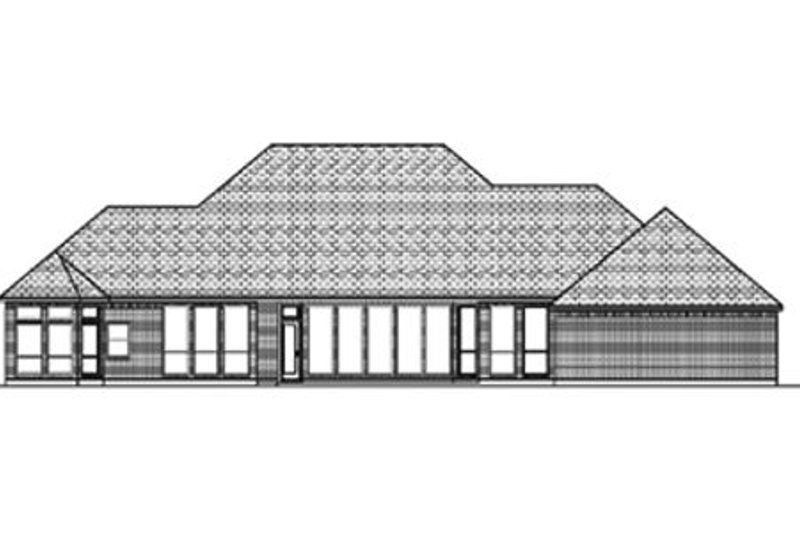

- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
