PLAN 1016-16

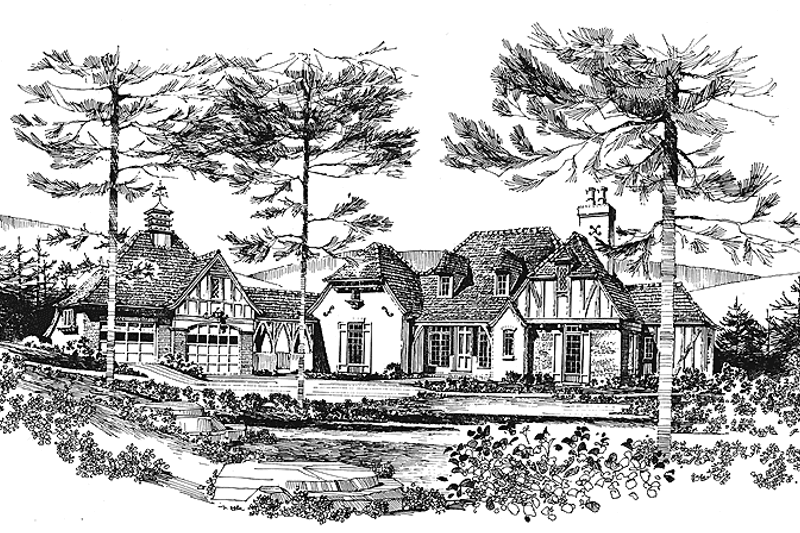

Tudor Exterior - Front Elevation Plan #1016-16

Select Plan Set Options

What's included?
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
Printed sets showing plan in reverse, text and dimensions will be backwards.
NOW $846.00
You save $94.00
(10% savings)
Sale ends soon!
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 1016-16

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

The informal ambiance of English Tudor style is reflected in this European mini-estate. A brick, stucco and half-timber exterior, combined with shake shingles on a roof with dramatically curved eaves, provides the appropriate finish materials. Add to this the multi-pane windows and a pigeonnaire on the garage, and the beauty of this Old World-style home is complete. Elegance prevails inside as well, beginning with the wide entry gallery and continuing through the spacious living room, beam-ceilinged dining room, kitchen and morning room. The main-level master suite enjoys a quiet study nearby for reflective moments. Designed for a rear sloping lot, this home includes a lower-level game room, two bedrooms, a full bath and lots of storage space.

Floor Plans

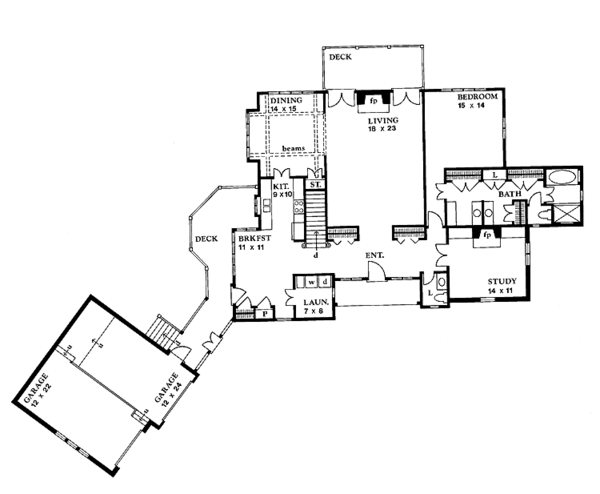

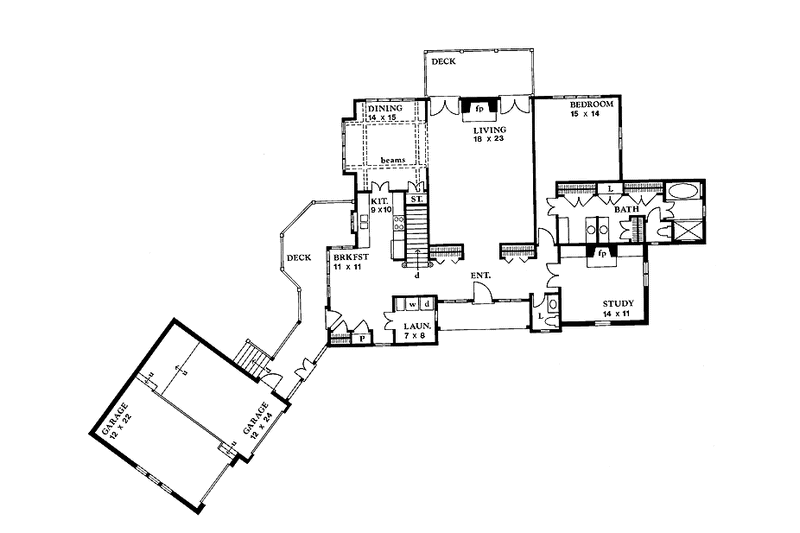

Floor Plan - Main Floor Plan

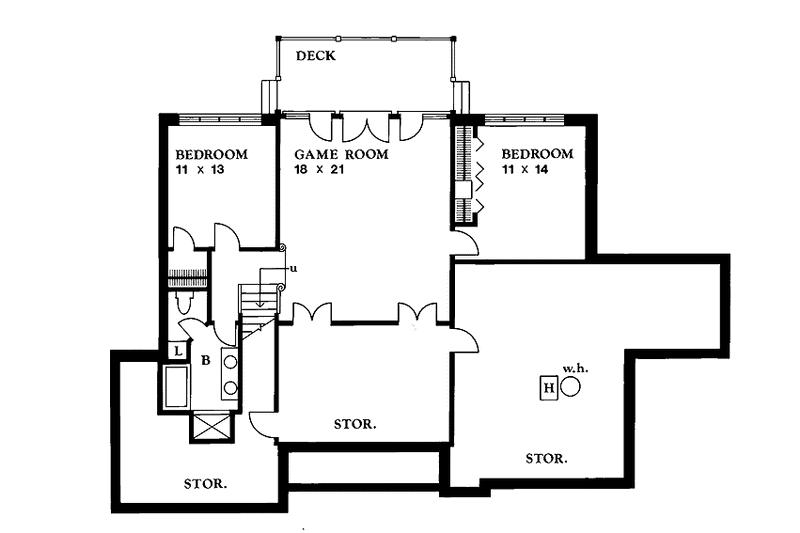

Floor Plan - Upper Floor Plan

Full Specs & Features

Depth : 71' 9"
Height : 28'
Width : 107' 2"
Basement Living: 1027 sq/ft
First Floor: 2087 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 16:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Outdoor Spaces
Covered Front Porch

3rd BR Closet:

16 sq/ft width 4' x depth 4'

Bedroom 3:

145 sq/ft width 13' x depth 11' 2"

Bedroom 4:

158 sq/ft width 14' 2" x depth 11' 2"

Bedroom 4 Closet:

20 sq/ft width 2' x depth 10' 4"

Breakfast Room:

147 sq/ft width 13' 10" x depth 10' 8"


149 sq/ft width 8' x depth 18' 8"

Dining Room:

186 sq/ft width 15' 5" x depth 12' 1"


114 sq/ft width 6' x depth 19'

Game Room:

186 sq/ft width 13' x depth 14' 4"


513 sq/ft width 22' x depth 23' 4"

Gathering Room:

383 sq/ft width 21' 4" x depth 18'


width 3' 6" x depth 0"

Hall Bathroom:

104 sq/ft width 13' x depth 8'

Hall Closet:

11 sq/ft width 2' x depth 5' 8"


93 sq/ft width 11' 4" x depth 8' 3"

Laundry Room:

56 sq/ft width 8' x depth 7'

Living Room:

445 sq/ft width 24' 9" x depth 18'

Master Bathroom:

70 sq/ft width 7' x depth 10'

Master Bedroom:

207 sq/ft width 14' 4" x depth 14' 6"

Master Closet:

36 sq/ft width 2' x depth 18'

Powder Room:

28 sq/ft width 6' x depth 4' 8"


576 sq/ft width 16' x depth 36'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-888-447-1946
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.


Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.


Wood 2x4:
Wood 2x4

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
