PLAN 928-56
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 61'
Height : 31' 3"
Width : 72'
Area

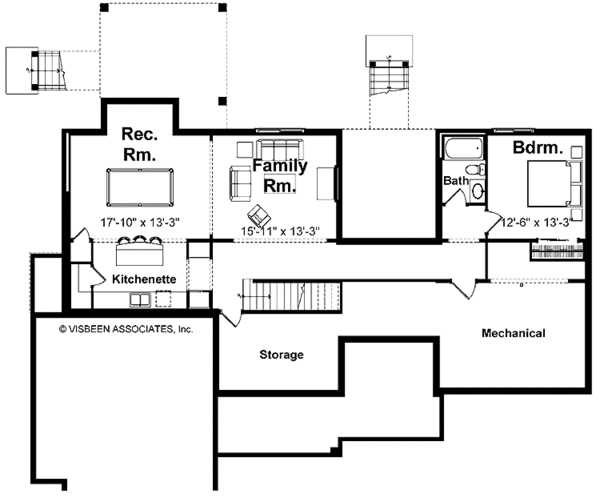

Basement Living: 1224 sq/ft

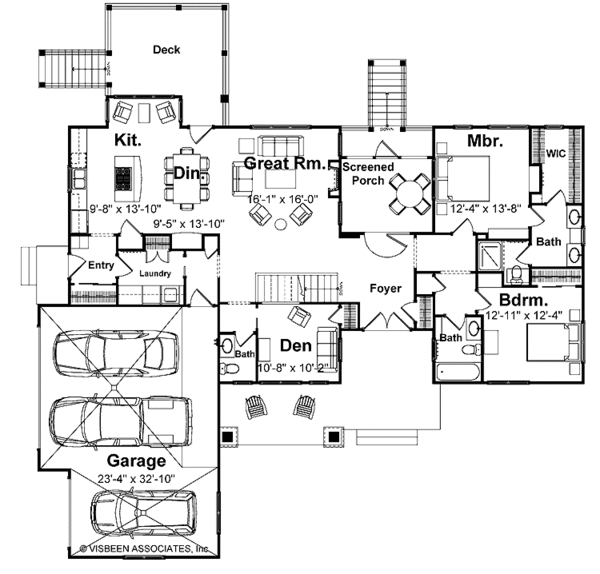

First Floor: 1900 sq/ft
Roof
Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Open Floor Plan
Sunroom
Unfinished Future Space
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Deck
Screened Porch
Rooms
Bedroom 2:
159 sq/ft width 12' 11" x depth 12' 4"
Bedroom 3:
165 sq/ft width 12' 6" x depth 13' 3"
Den:
108 sq/ft width 10' 8" x depth 10' 2"
Dining Room:
130 sq/ft width 9' 5" x depth 13' 10"
Family Room:
210 sq/ft width 15' 11" x depth 13' 3"
Garage:
766 sq/ft width 23' 4" x depth 32' 10"
Great Room:
257 sq/ft width 16' 1" x depth 16'
Kitchen:
133 sq/ft width 9' 8" x depth 13' 10"
Master Bedroom:
168 sq/ft width 12' 4" x depth 13' 8"
Recreation Room:
236 sq/ft width 17' 10" x depth 13' 3"
What's Included In This Plan Set
Please note: If you are building this plan in the state of Michigan, please give us a call to confirm availability. The designer has some geographic restrictions in Michigan.
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
-
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Important: If you are ordering a CAD set, or Right-Reading Reverse on this plan, please allow two weeks for delivery based on the current design schedule.
Plan Set
$1495.00
$3495.00
Foundation
$0.00
Framing
$0.00
Additional Options
$195.00
$165.00
$395.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
