Plan Description

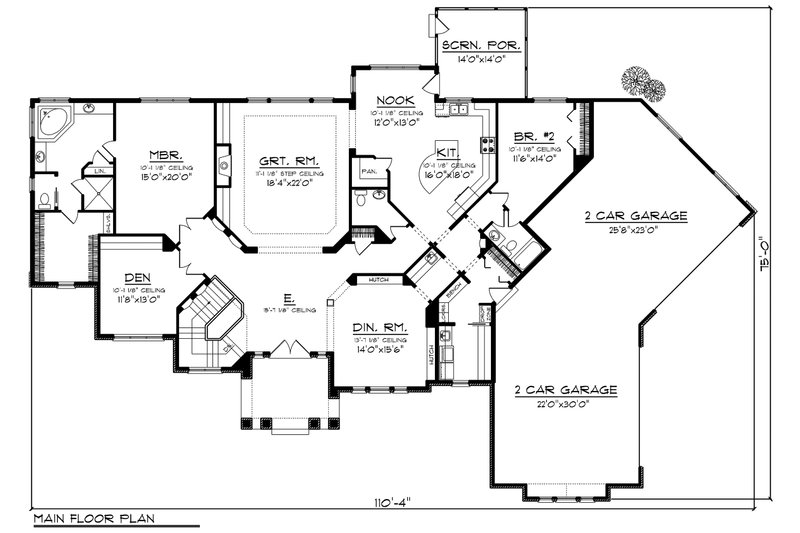

This traditional ranch home features an all brick front with stone details for an updated modern look. Double doors great you into the entry where a formal dining room, defined by a column lies to the right. Directly ahead, a spacious great room with detailed ceiling and fireplace flanked by built-ins is sure to please. The kitchen is found to the right of the great room and includes a unique angled island with breakfast bar that overlooks the adjacent nook. The master suite lies to the left of the home along with a den that can easily double as a third bedroom. To the back of the home off the kitchen, you’ll find the second bedroom that has direct access to the hall bath. A four stall, side angle loaded garage completes this home.

Full Specs & Features

Depth : 75'
Height : 31' 2"
Width : 110' 4"
First Floor: 3126 sq/ft height 10' 1"
Garage: 1352 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Entry 15'-7", Grt Rm 11' Step, Din 13'-7"
Lower Ceiling : 9'
Main Ceiling : 10'
Primary Pitch : 12:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick, Siding
Framing : 2x6
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Unfinished Future Space
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Screened Porch
Empty Nester

Bedroom 2:

width 11' 6" x depth 14'

Bedroom 2 Closet:

width 2' 1" x depth 8' 1"

Butler's Pantry:

width 5' 10" x depth 5' 10"

Covered Front Porch:

width 15' x depth 11' 4"


width 11' 8" x depth 13'


width 11' 8" x depth 13'

Dining Room:

width 14' x depth 15' 6"


width 13' 9" x depth 12'

Garage 1:

width 22' x depth 30'

Garage 2:

width 25' 8" x depth 23'

Great Room:

width 18' 4" x depth 22'


width 3' 7" x depth 4' 9"

Hall Bath:

width 5' x depth 8' 6"

Hall Closet 1:

width 3' 7" x depth 2' 1"

Hall Closet 2:

width 2' 1" x depth 6' 1"


width 16' x depth 18'

Laundry Room:

width 8' 1" x depth 8' 4"

Master Closet:

width 9' 8" x depth 10' 8"

Master Bath:

width 12' 1" x depth 16' 5"

Master Bedroom:

width 15' x depth 22'

Mud Room:

width 8' 1" x depth 6'


width 12' x depth 13'


width 5' 7" x depth 4' 7"

Powder Room:

width 5' 7" x depth 5' 7"

Screened Porch:

width 14' x depth 14'

What's Included In This Plan Set

  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.
