PLAN 137-103
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

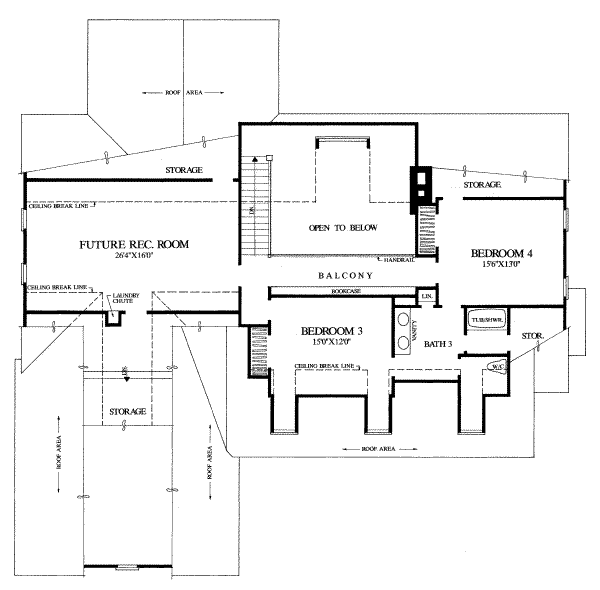

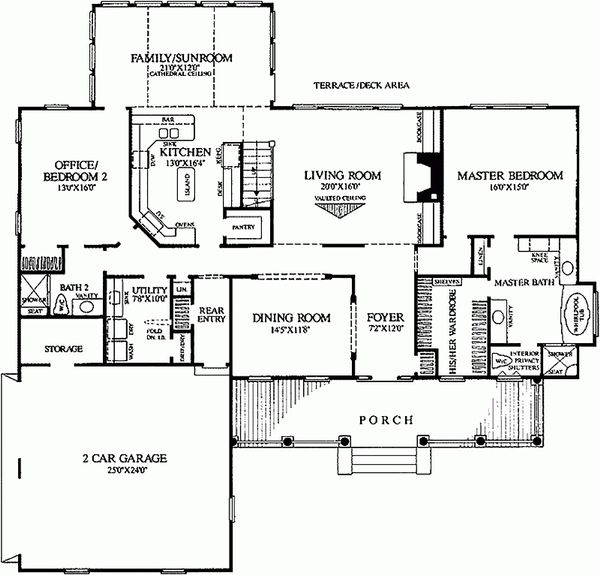

Floor Plans
Full Specs & Features
Dimension
Depth : 67' 4"
Height : 30'
Width : 69' 4"
Area
Bonus: 450 sq/ft
First Floor: 2357 sq/ft height 9'
Second Floor: 772 sq/ft height 8'
Roof
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Loft
Storage Area
Sunroom
Unfinished Future Space
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Balcony
Covered Front Porch
Screened Porch
More
Jack & Jill Bath
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Designer’s rendering of front elevations
- Foundation and dimensioned floor plans
- Electrical plans
- Section through house
- All exterior elevation
- Selected interior elevations; door and window sizes; fireplace details; stair details; molding details; cabinet details; roof plan and exterior details.
- Roof Plan and Exterior Details
Plan Set
$920.00
$1010.00
$1200.00
$1200.00
$800.00
Foundation
$0.00
Additional Options
$55.00
$100.00
$395.00
$39.00
$55.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
