PLAN 929-740
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

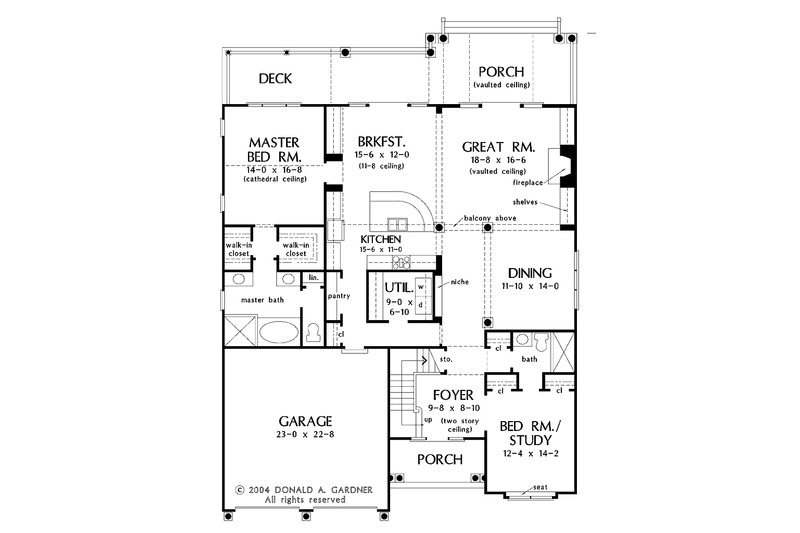

Floor Plan - Main Floor

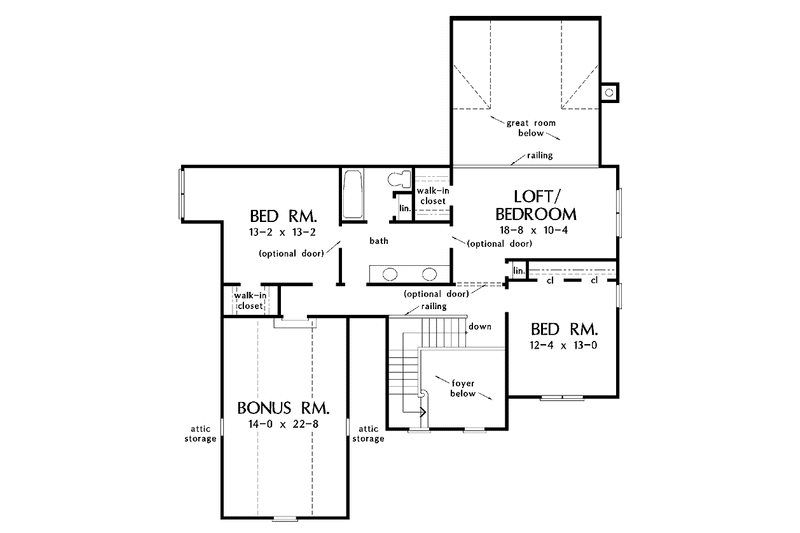

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 67' 6"
Height : 33' 8"
Width : 50'
Area
First Floor: 2172 sq/ft height 9'
Second Floor: 962 sq/ft height 8'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Split Bedrooms
Kitchen Features
Kitchen Island
Additional Room Features
Great Room Living Room
Loft
Unfinished Future Space
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Rooms
Bathroom 2:
49 sq/ft width 8' 8" x depth 5' 8"
Bathroom 3:
84 sq/ft width 12' 4" x depth 6' 10"
Bedroom 2 Closet:
8 sq/ft width 4' 2" x depth 2'
Bedroom 3:
173 sq/ft width 13' 2" x depth 13' 2"
Bedroom 3 Closet:
20 sq/ft width 6' 2" x depth 3' 4"
Bedroom 4:
160 sq/ft width 12' 4" x depth 13'
Bedroom 4 Closet:
20 sq/ft width 10' x depth 2'
Bonus Room - Finished:
317 sq/ft width 14' x depth 22' 8"
Breakfast Room:
186 sq/ft width 15' 6" x depth 12'
Coat Closet:
6 sq/ft width 3' 4" x depth 2'
Deck:
122 sq/ft width 15' 4" x depth 8'
Dining Room:
165 sq/ft width 11' 10" x depth 14'
Foyer:
85 sq/ft width 9' 8" x depth 8' 10"
Garage:
521 sq/ft width 23' x depth 22' 8"
Great Room:
308 sq/ft width 18' 8" x depth 16' 6"
Hall Closet:
14 sq/ft width 4' 4" x depth 3' 4"
Hall Closet 2:
6 sq/ft width 2' x depth 3' 4"
Kitchen:
170 sq/ft width 15' 6" x depth 11'
Linen Closet 1:
6 sq/ft width 3' x depth 2'
Linen Closet 2:
5 sq/ft width 1' 10" x depth 3'
Linen Closet 3:
4 sq/ft width 2' x depth 2'
Loft:
192 sq/ft width 18' 8" x depth 10' 4"
Master Bathroom:
147 sq/ft width 14' x depth 10' 6"
Master Bedroom:
233 sq/ft width 14' x depth 16' 8"
Master Closet:
22 sq/ft width 3' 8" x depth 6'
Master Closet Two:
37 sq/ft width 6' 4" x depth 6'
Pantry:
13 sq/ft width 2' x depth 6' 10"
Porch - Front:
79 sq/ft width 13' 4" x depth 6'
Porch - Rear:
231 sq/ft width 21' 4" x depth 10' 10"
Study:
174 sq/ft width 12' 4" x depth 14' 2"
Utility Room:
61 sq/ft width 9' x depth 6' 10"
What's Included In This Plan Set
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
- Cover Sheet - A rendering of the front exterior of the house.
- Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
- Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
- Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
- Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
- Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
- Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
- Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
- Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
- Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.
