PLAN 942-56
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

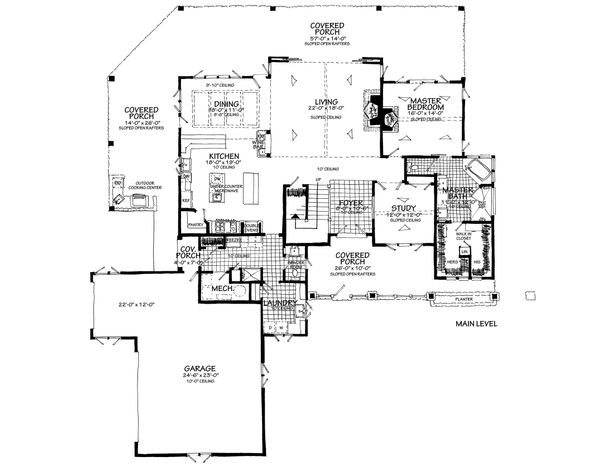

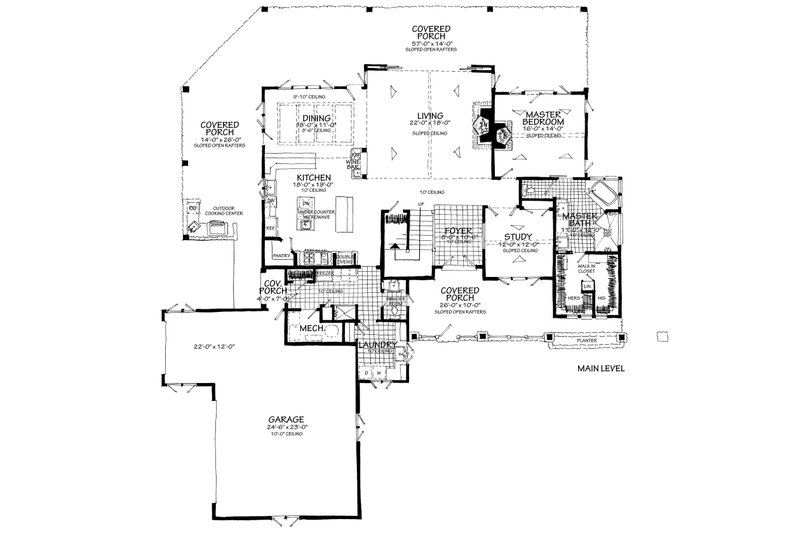

Floor Plan - Main Floor

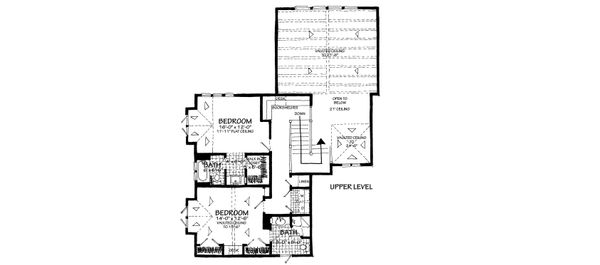

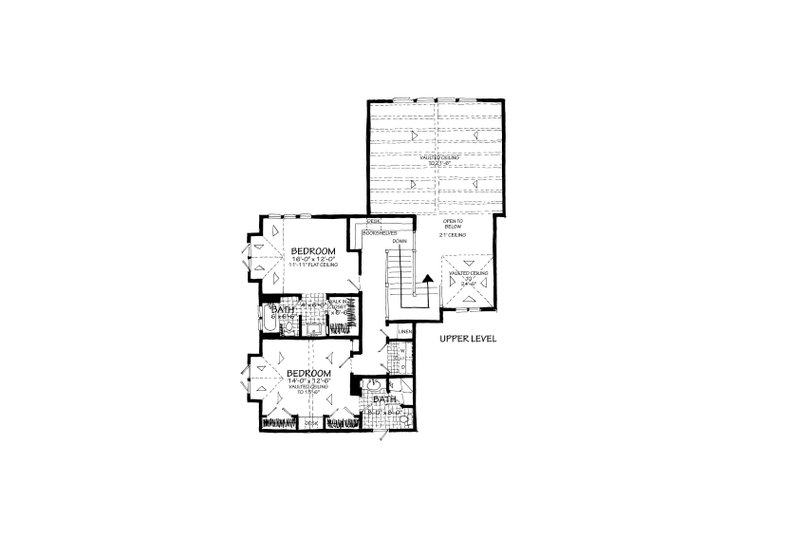

Floor Plan - Upper Floor

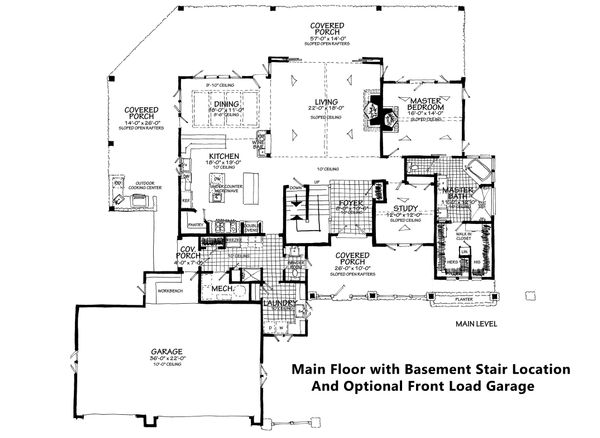

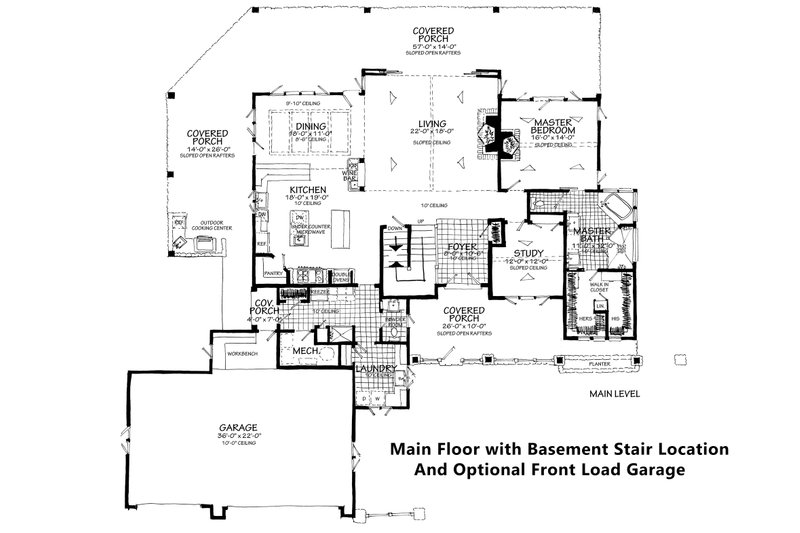

Floor Plan - Other Floor

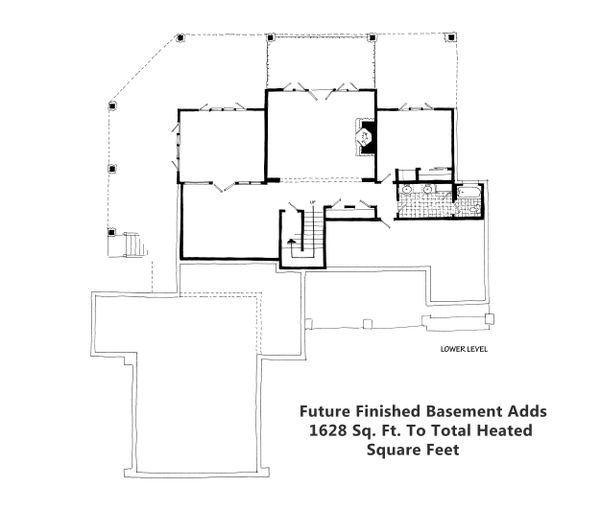

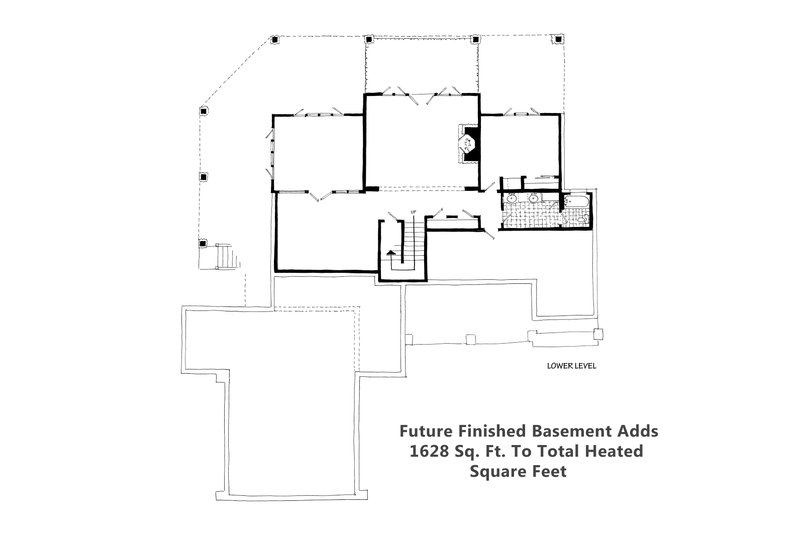

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 79' 6"
Height : 32' 4"
Width : 80'
Area
Basement : 2258 sq/ft
Decks : 173 sq/ft
Main Floor : 2524 sq/ft
Patios : 232 sq/ft
Porch : 1343 sq/ft
Upper Floor : 917 sq/ft
Ceiling
Ceiling Details : Sloped ceilings in Living Room & Master Bedroom; vaulted front upper level Bedroom; 11' 11" ceiling in rear upper level ceiling
Main Ceiling : 10'
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Metal & Built Up
Secondary Pitch : 4:12
Exterior Wall Framing
Exterior Wall Finish : Stone/Siding
Framing : 2 x 6
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Loft
Main Floor Laundry
Mud Room
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Sloping Lot
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
Rooms
Bath 3:
width 15' x depth 6' 6"
Bath 4:
width 8' x depth 8'
Bedroom 2:
width 12' x depth 12'
Bedroom 3:
width 16' x depth 12'
Bedroom 4:
width 14' x depth 12' 6"
Dining Room:
width 18' x depth 11'
Foyer:
width 8' x depth 10' 6"
Kitchen:
width 18' x depth 19'
Living Room:
width 18' x depth 18'
Master Bath:
width 11' x depth 12'
Master Bedroom:
width 16' x depth 14'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.

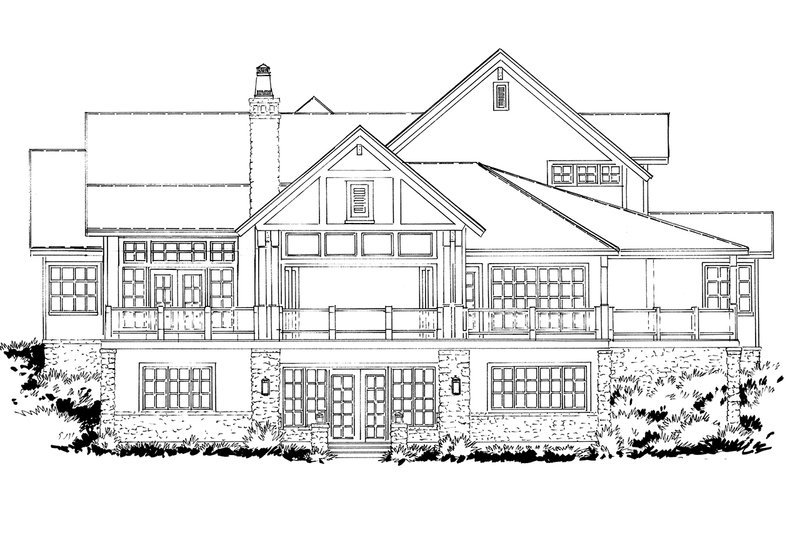

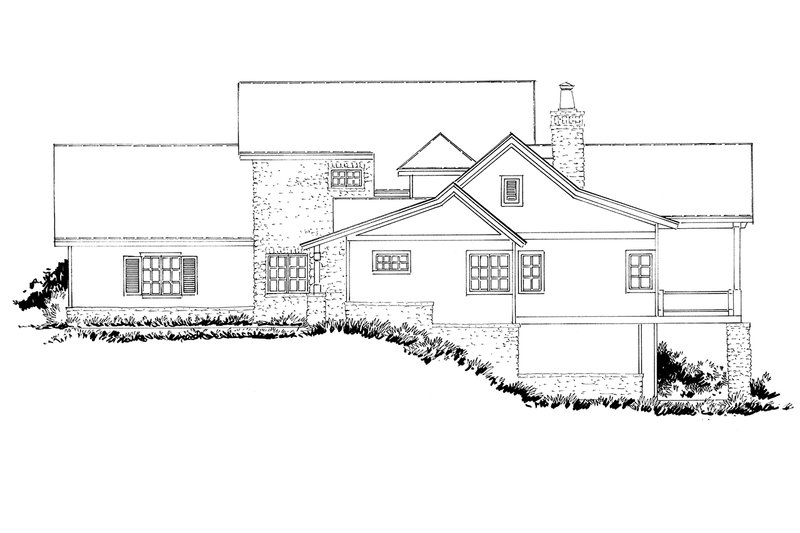

- Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
- Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.
Plan Set
$2868.75
$3208.75
$1126.25
Foundation
$0.00
Framing
$0.00
Additional Options
$510.00
$140.25
$33.15
$140.25
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
