PLAN 1060-9

Home > Style > Ranch

Key Specs

3145
sq ft

5
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

A picture perfect rambler that has a spacious, open living area and a roomy kitchen, this plan creates a cozy atmosphere perfect for entertaining. The luxurious master suite has an over-sized walk-in closet and spacious master bathroom, as well as, access to the to the backyard. There is a large family room in the basement offering plenty of opportunity for creative usage and an additional two bedrooms with walk-in closets.

Floor Plans

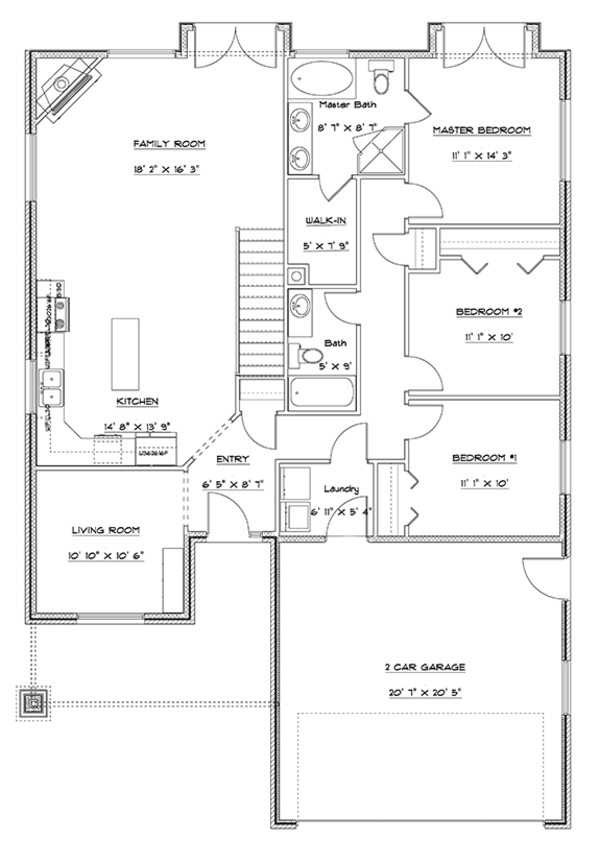

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

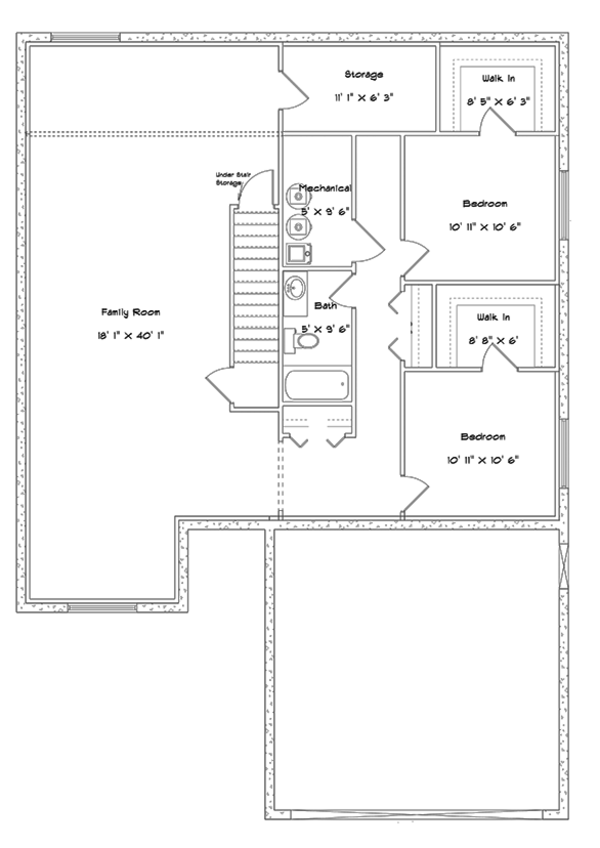

Floor Plan - Lower Floor

Reverse

Full Specs & Features

Dimension

Depth : 59'

Height : 19' 6"

Width : 40'

Area

Basement Living: 1592 sq/ft height 8'

First Floor: 1553 sq/ft height 9'

Garage: 462 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 7:12

Roof Framing : Truss

Roof Type : Asphalt

Secondary Pitch : 5:12

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : Wood - 2x6

Bedroom Features

Formal Living Room / Parlor

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Kitchen Island

Additional Room Features

Family Room Keeping Room

Great Room Living Room

Main Floor Laundry

Mud Room

Open Floor Plan

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Rooms

Basement Bath:

48 sq/ft width 5' x depth 9' 6"

Basement Family Room:

725 sq/ft width 18' 1" x depth 40' 1"

Bath:

45 sq/ft width 5' x depth 9'

Bedroom 2:

111 sq/ft width 11' 1" x depth 10'

Bedroom 3:

111 sq/ft width 11' 1" x depth 10'

Bedroom 4:

115 sq/ft width 10' 11" x depth 10' 6"

Bedroom 4 Closet:

52 sq/ft width 8' 8" x depth 6'

Bedroom 5:

115 sq/ft width 10' 11" x depth 10' 5"

Bedroom 5 Closet:

53 sq/ft width 8' 5" x depth 6' 3"

Covered Front Porch:

140 sq/ft

Entry:

54 sq/ft width 6' 3" x depth 8' 7"

Family Room:

295 sq/ft width 18' 2" x depth 16' 3"

Garage:

462 sq/ft width 20' 7" x depth 20' 3"

Kitchen:

202 sq/ft width 14' 8" x depth 13' 9"

Laundry:

37 sq/ft width 6' 11" x depth 5' 4"

Living Room:

114 sq/ft width 10' 10" x depth 10' 6"

Master Closet:

23 sq/ft width 3' x depth 7' 9"

Master Bath:

74 sq/ft width 8' 7" x depth 8' 7"

Master Bedroom:

158 sq/ft width 11' 1" x depth 14' 3"

Mechanical Room:

48 sq/ft width 5' x depth 9' 6"

Storage:

69 sq/ft width 11' 1" x depth 6' 3"
