Key Specs
3152
sq ft
5
Beds
3
Baths
2
Floors
2
Garages
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 18-9008
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 39'
Height : 26'
Width : 64'
Area
Garage : 659 sq/ft

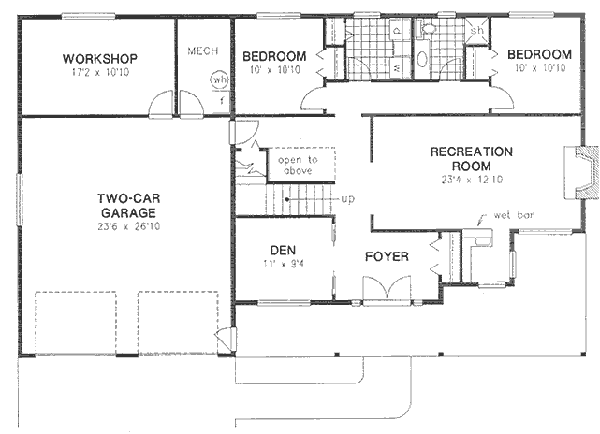

Lower Floor : 1180 sq/ft

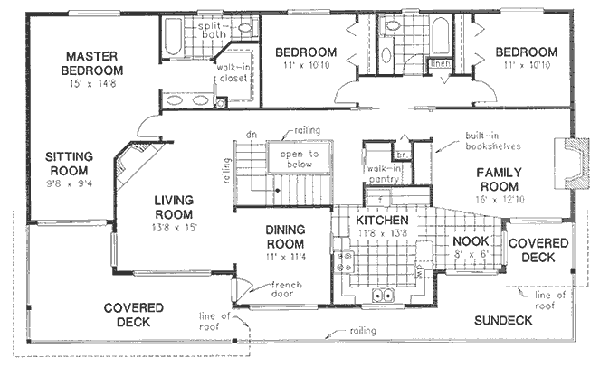

Main Floor : 1972 sq/ft
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 6:12
Exterior Wall Framing
Framing : 2"x6"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Master Sitting Area
Workshop
Garage Features
Garage Under
Lot Characteristics
Suited For View Lot
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

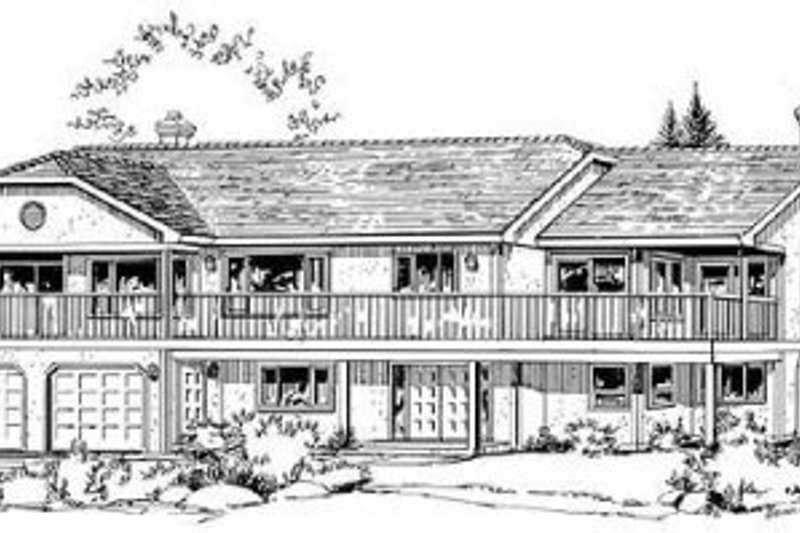

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Plan Set
$1222.45
$1347.19
$1471.93
$1471.93
$2444.90
$1045.44
$1097.71
Foundation
$0.00
Framing
$0.00
Additional Options
$175.50
$54.00
$445.50
$135.00
$355.50
$35.10
$135.00
$0.00
$895.50
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
