PLAN 310-961
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

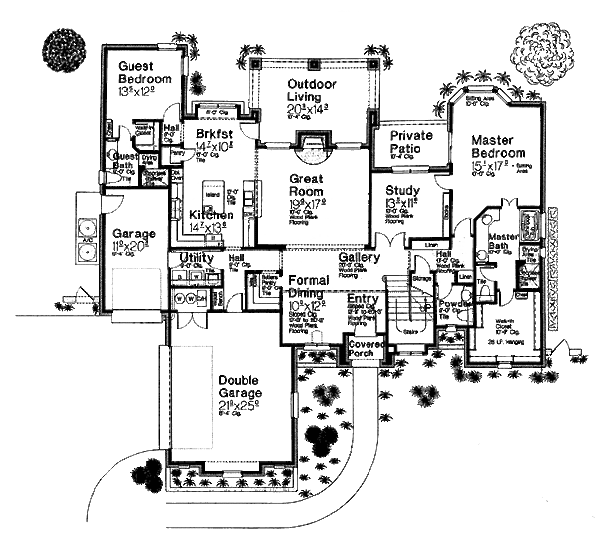

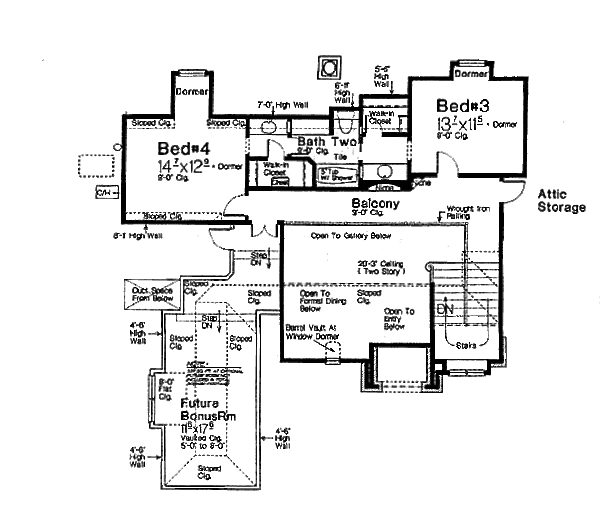

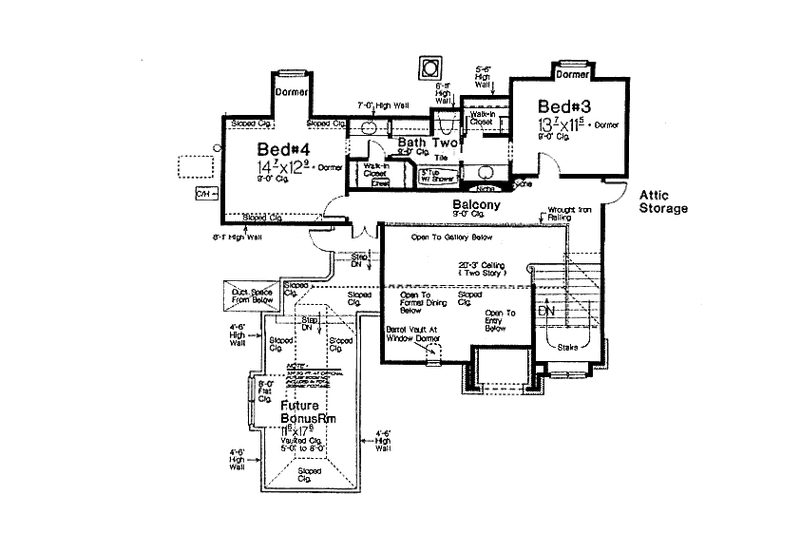

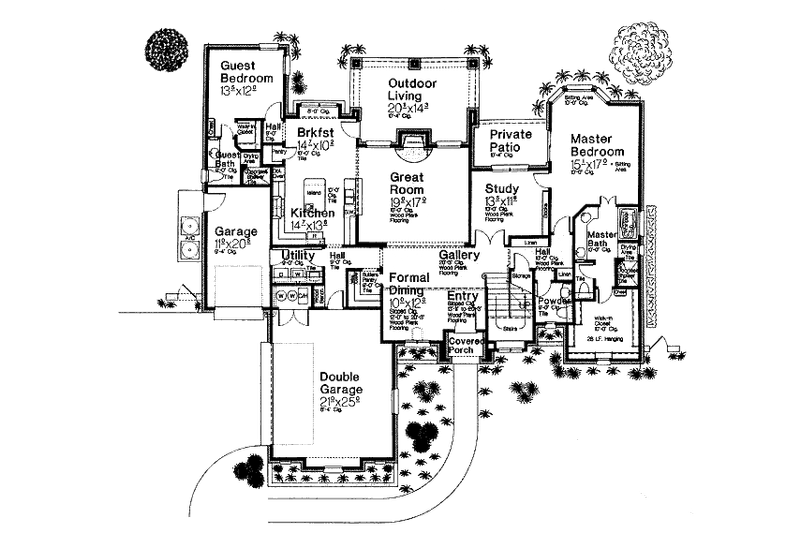

Floor Plans
Full Specs & Features
Dimension
Depth : 71'
Height : 31'
Width : 74'
Area
Bonus: 329 sq/ft
First Floor: 2447 sq/ft
Garage: 755 sq/ft height 8' 4"
Second Floor: 719 sq/ft
Ceiling
Bonus Ceiling : 8'
Garage Ceiling : 8'
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 12:12
Roof Framing : stick
Roof Type : Shingle
Secondary Pitch : 14:12
Exterior Wall Framing
Exterior Wall Finish : brick/stone/stucco
Framing : 2"x4"
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Loft
Main Floor Laundry
Master Sitting Area
Play Flex Room
Storage Area
Unfinished Future Space
Garage Features
Side Entry Garage
Split Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Balcony
More
Jack & Jill Bath
Rooms
Bedroom 3:
155 sq/ft width 13' 7" x depth 11' 5"
Bedroom 4:
185 sq/ft width 14' 7" x depth 12' 9"
Bonus Room - Unfinished:
201 sq/ft width 11' 6" x depth 17' 6"
Breakfast:
148 sq/ft width 14' 7" x depth 10' 2"
Dining Room:
120 sq/ft width 10' x depth 12'
Garage:
224 sq/ft width 11' x depth 20' 5"
Great Room:
323 sq/ft width 19' x depth 17'
Guest Bedroom:
161 sq/ft width 13' 5" x depth 12'
Kitchen:
196 sq/ft width 14' 7" x depth 13' 6"
Master Bedroom:
256 sq/ft width 15' 1" x depth 17'
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.

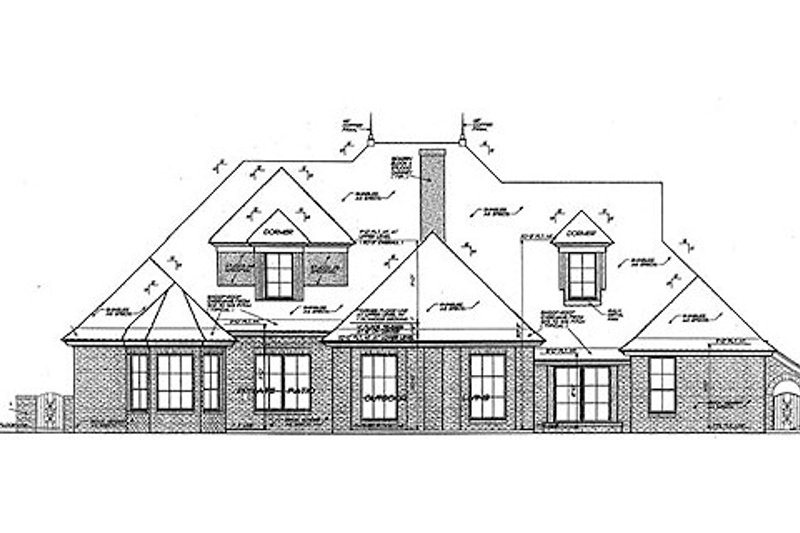

- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
Plan Set
$1395.00
$1535.00
$1685.00
$1685.00
$1340.00
Foundation
$0.00
Additional Options
$50.00
$100.00
$39.00
$50.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
