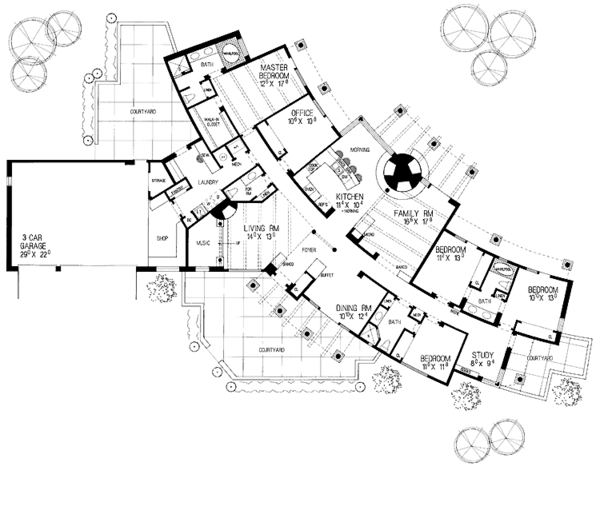

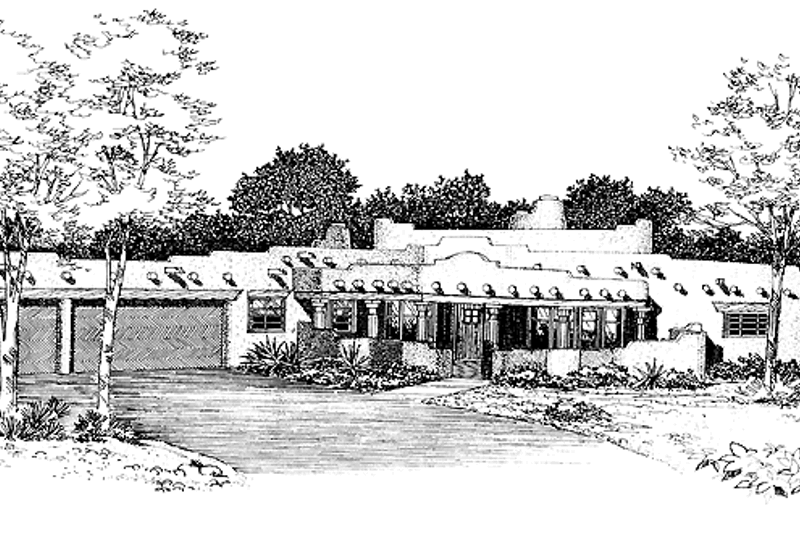

Projecting wood beams called "vigas" add a distinctive touch to this Santa Fe exterior. A private courtyard leads to the entryway of this radially planned home. To the left of the foyer rests a living room with a wood-beamed ceiling, music alcove and fireplace. Past the formal dining room on the right is the family room and large country kitchen with snack bar and morning room. The focal point of this casual living zone is the massive fireplace with three separate fire boxes--the center of the plan's radius. Three family bedrooms, two full baths and an open study with adjoining courtyard round out the right wing. Wood-beams and an oversized, spa-style bath give the master suite a posh attitude. Completing this wing is an office, powder room, laundry/utility room and a three-car garage with work room.
width 7' 2" x depth 11'
width 14' x depth 12' 10"
113 sq/ft width 16' 2" x depth 6' 8"
width 9' 6" x depth 6' 6"
width 9' 9" x depth 8' 10"
width 7' 6" x depth 11'
width 8' 4" x depth 5'
width 15' 9" x depth 7' 5"
All plans are drawn at ¼” scale or larger and include :
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Additional Use License
|Additional Use License.|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|A list of building supplies needed to construct the infrastructure of your new house.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
|Unlimited Use License
|Unlimited Use License.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
