PLAN 23-665
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

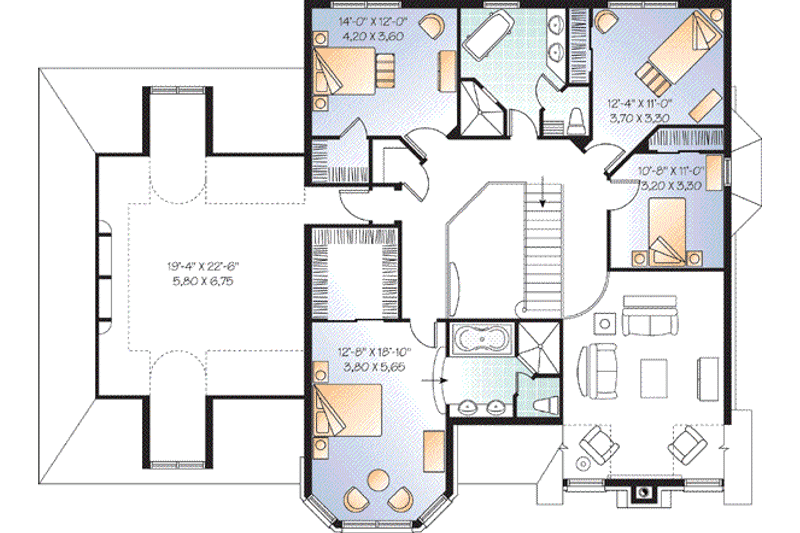

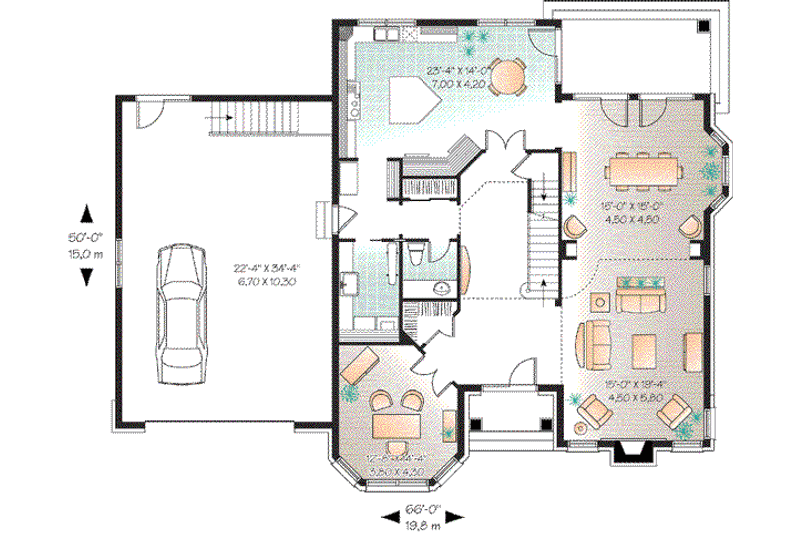

Floor Plans
Full Specs & Features
Dimension
Depth : 50'
Height : 43' 8"
Width : 66'
Area
Bonus: 565 sq/ft
First Floor: 1750 sq/ft height 9'
Garage: 829 sq/ft
Second Floor: 1430 sq/ft height 9'
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 18:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Stone
Framing : Wood - 2x6
Bedroom Features
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Loft
Master Sitting Area
Play Flex Room
Storage Area
Unfinished Future Space
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Rooms
Bathroom 2:
146 sq/ft width 12' 2" x depth 12'
Bedroom 2:
165 sq/ft width 13' 10" x depth 12'
Bedroom 3:
135 sq/ft width 12' 4" x depth 11'
Bedroom 3 Closet:
14 sq/ft width 7' x depth 2'
Bedroom 4:
117 sq/ft width 10' 8" x depth 11'
Bedroom 4 Closet:
14 sq/ft width 7' 2" x depth 2'
Bonus Room - Unfinished:
434 sq/ft width 19' 4" x depth 22' 6"
Dining Room:
255 sq/ft width 17' x depth 15'
Family Room:
289 sq/ft width 15' x depth 19' 4"
Foyer:
97 sq/ft width 10' 8" x depth 9' 2"
Garage:
673 sq/ft width 22' 4" x depth 30' 2"
Hall Closet:
28 sq/ft width 5' 8" x depth 5'
Home Office:
181 sq/ft width 12' 8" x depth 14' 4"
Kitchen:
326 sq/ft width 23' 4" x depth 14'
Laundry Room:
70 sq/ft width 6' 8" x depth 10' 6"
Master Bathroom:
97 sq/ft width 10' 8" x depth 9' 2"
Master Bedroom:
238 sq/ft width 12' 8" x depth 18' 10"
Master Closet:
69 sq/ft width 8' 4" x depth 8' 4"
Porch - Front:
37 sq/ft width 9' 4" x depth 4'
What's Included In This Plan Set
This plan set typically contains:
Exterior Elevations (front, rear, left & right sides) typically include:
- Floor and ceiling heights
- Dimensions of standard windows
- Dimensions of roof overhangs
- Location of all needed flashings (mention of “typical” in most cases)
- Height and location of foundation indicated in dashed lines
- Type of finishing and textures (we write siding, horizontal or vertical but not the company)
- Dimension and height of chimney (dimensions yes but the height is determined by the local building code)
- All exterior and interior dimensions
- Thickness of foundation walls (if variable)
- All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
- Location of stairwell
- Location and sizes of windows
- Location and dimensions of footings (where applicable and required)
- All interior and exterior dimensions (included but not as a schedule)
- Location and sizes of doors and windows
- Indication of the structure above (second floor or roof)
- Indication of details that are available on other pages
- Location of all the different trusses needed
- The general overcharge of the roof compared to the floor footprint underneath
- All the different floor and ceiling heights
- Dimensions and design of trusses
- Dimensions and details of overhand
- Roof pitch on all truss sections
- Roof sections
- Sections of concrete wall with wood connection
- Section of walls with particulars called out
- Section of concrete porch and connection with wood frame
- Foundation particulars in the garage entrance
- Components of certain types of walls (ex: between garage and living quarters)
- All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
- Note: This plan does not include HVAC, electrical and plumbing.
Plan Set
$2035.00
$2170.00
$3035.00
Foundation
$0.00
$395.00
$395.00
$395.00
Additional Options
$225.00
$65.00
$165.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
