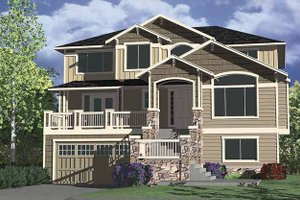

Photographs may show modified designs.
PLAN 951-5
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
PLAN 951-5
Key Specs
3182
sq ft
4
Beds
3
Baths
2
Floors
2
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
The columned entrance into this Traditional home opens with a Den and Living rooms to either side. A coffered Dining room makes a great place for meals. A well lit Family room with a fireplace sits next to the Kitchen. Upstairs, a pair of French doors opens into the sitting area of the Master Suite. The Master Bath gives you a jetted tub on a tiled deck, a separate shower, a double vanity, a toilet room and a nice sized walk in closet. The rest of the upper floor is taken up by 3 more bedrooms and a Bonus room. The finishing touch to this home is the 3 car tandem garage.
Floor Plans

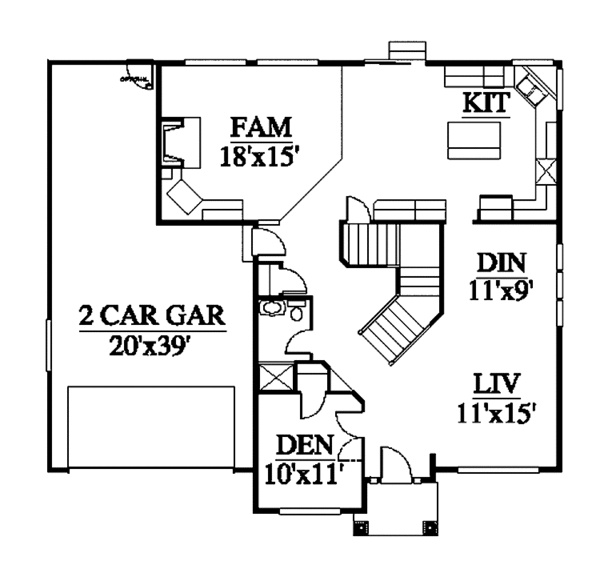

Floor Plan - Main Floor Plan

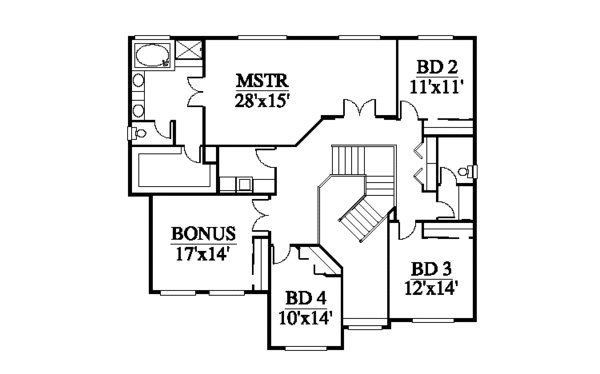

Floor Plan - Upper Floor Plan
Full Specs & Features
Width : 50'
Garage: 648 sq/ft
Porch: 39 sq/ft
Second Floor: 1779 sq/ft height 8' 1"
Roof Framing : Truss
Roof Type : Shingle
Framing : Wood - 2x6
Formal Living Room / Parlor
Upstairs Master Bedrooms
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Family Room Keeping Room
Loft
Master Sitting Area
Open Floor Plan
Upstairs Laundry
Courtyard
Covered Front Porch
Bedroom 2:
120 sq/ft width 10' 9" x depth 11' 3"
Bedroom 2 Closet:
14 sq/ft width 7' 1" x depth 2' 1"
Bedroom 3:
165 sq/ft width 12' x depth 13' 10"
Bedroom 3 Closet:
1 sq/ft width 1' 2" x depth 1' 8"
Bedroom 4:
144 sq/ft width 10' 1" x depth 14' 4"
Bedroom 4 Closet:
11 sq/ft width 5' 9" x depth 2' 1"
Bonus Room - Finished:
230 sq/ft width 16' 9" x depth 13' 9"
Breakfast Room:
56 sq/ft width 10' 4" x depth 5' 6"
Coat Closet:
6 sq/ft width 3' 2" x depth 2' 1"
Covered Porch:
43 sq/ft width 8' 3" x depth 5' 3"
Crawlspace Foundation:
1475 sq/ft width 38' 2" x depth 38' 8"
Den:
111 sq/ft width 10' 1" x depth 11' 1"
Dining Room:
127 sq/ft width 11' 1" x depth 11' 6"
Family Room:
266 sq/ft width 17' 8" x depth 15' 1"
Front Entry:
47 sq/ft width 6' 5" x depth 7' 5"
Garage:
469 sq/ft width 19' 9" x depth 23' 9"
Hall:
83 sq/ft width 5' 11" x depth 14' 1"
Hall Bathroom:
60 sq/ft width 5' x depth 12'
Kitchen:
164 sq/ft width 10' 11" x depth 15' 1"
Kitchen Island:
17 sq/ft width 5' x depth 3' 6"
Laundry Room:
53 sq/ft width 8' x depth 6' 8"
Linen Closet:
13 sq/ft width 7' 8" x depth 1' 9"
Living Room:
143 sq/ft width 11' 10" x depth 12' 2"
Master Bathroom:
154 sq/ft width 10' 3" x depth 15' 1"
Master Bedroom:
252 sq/ft width 16' 9" x depth 15' 1"
Master Closet:
82 sq/ft width 12' 3" x depth 6' 9"
Master Sitting Room:
117 sq/ft width 10' 9" x depth 10' 11"
Pantry:
22 sq/ft width 5' 6" x depth 4'
Patio:
196 sq/ft width 14' x depth 14'
Powder Room:
44 sq/ft width 5' x depth 8' 11"
Slab Foundation:
747 sq/ft width 19' 4" x depth 38' 8"
Toilet Closet:
19 sq/ft width 6' x depth 3' 3"
What's Included In This Plan Set
See a sample plan set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

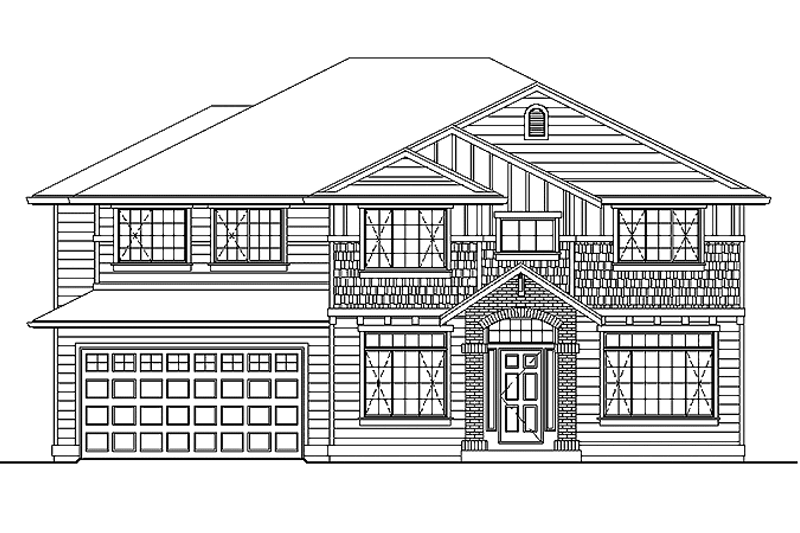

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
| CAD Set
: $1950.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse
: $175.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: $60.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets
: $60.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
