PLAN 54-291
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Full Specs & Features
Dimension
Depth : 74' 2"
Height : 32' 11"
Width : 64' 6"
Height : 32' 11"
Width : 64' 6"
Area
Bonus: 396 sq/ft
First Floor: 2417 sq/ft
Garage: 781 sq/ft
Second Floor: 766 sq/ft
First Floor: 2417 sq/ft
Garage: 781 sq/ft
Second Floor: 766 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 0:0
Roof Framing : Truss
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding/Stone
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchen Island
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Family Room Keeping Room
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
138 sq/ft width 12' 5" x depth 11' 2"
Bedroom 3:
225 sq/ft width 16' 5" x depth 13' 9"
Bedroom 4:
208 sq/ft width 13' 3" x depth 15' 9"
Breakfast:
151 sq/ft width 11' 6" x depth 13' 2"
Dining Room:
202 sq/ft width 12' 2" x depth 16' 8"
Family Room:
199 sq/ft width 13' 5" x depth 14' 10"
Garage:
514 sq/ft width 26' 6" x depth 19' 5"
Garage Two:
324 sq/ft width 13' 3" x depth 24' 6"
Grand Room:
355 sq/ft width 17' 9" x depth 20'
Kitchen:
221 sq/ft width 13' 5" x depth 16' 6"
Library:
215 sq/ft width 11' 5" x depth 18' 10"
Master Bedroom:
266 sq/ft width 16' 9" x depth 15' 11"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

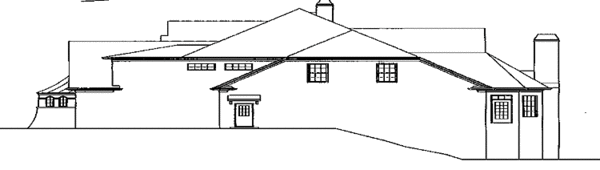

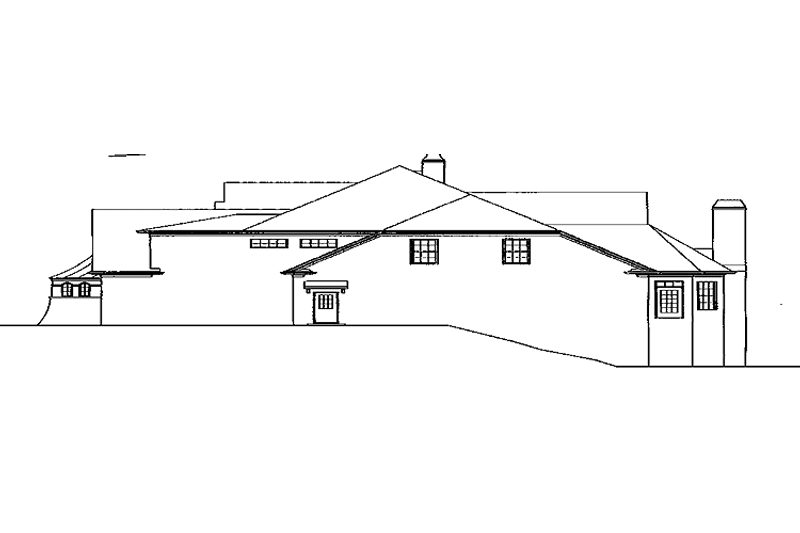

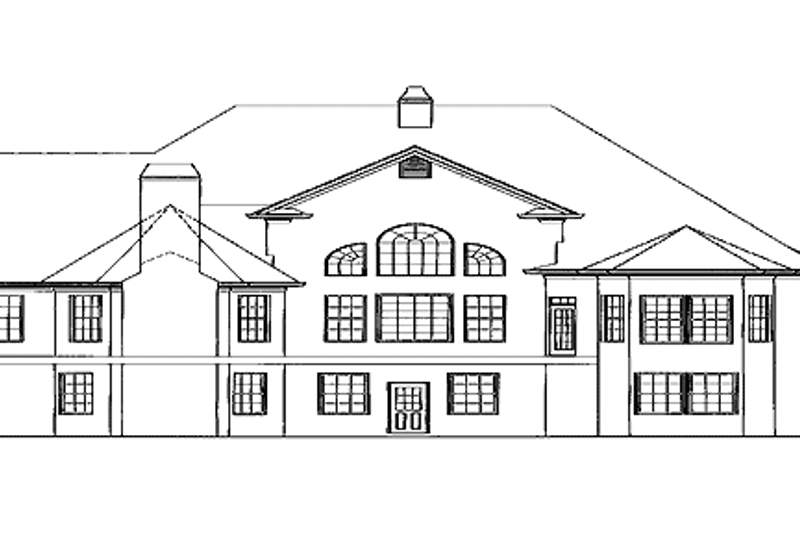

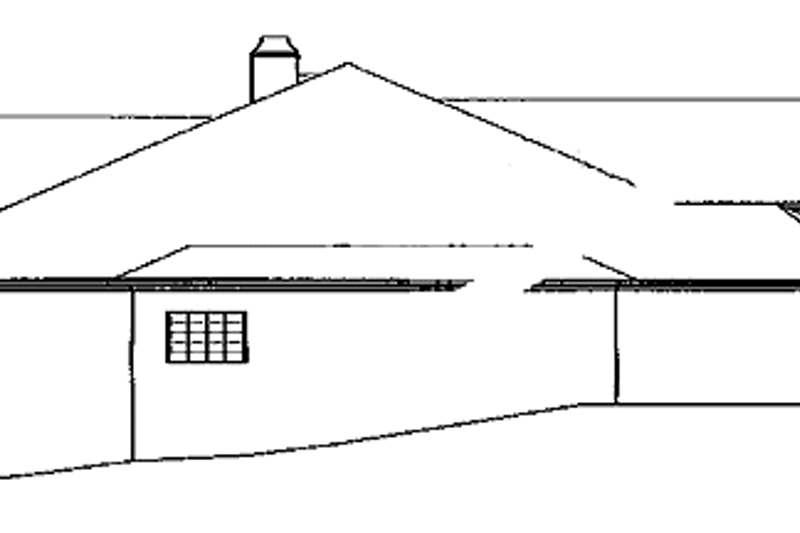

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

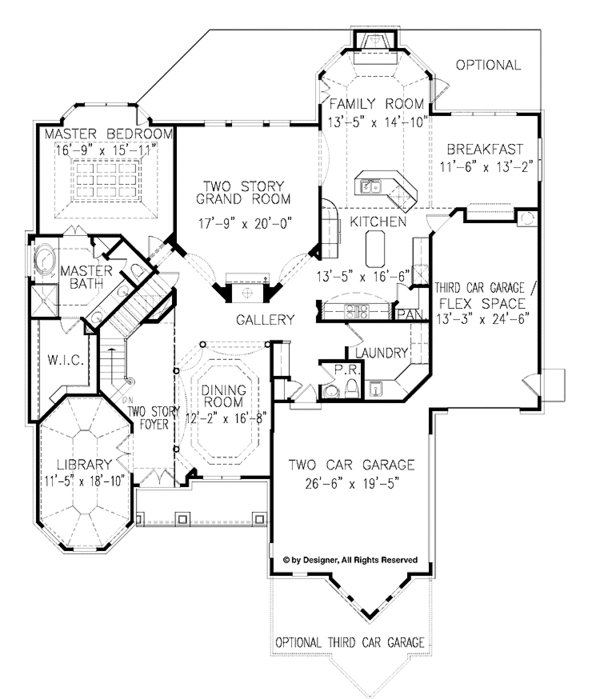

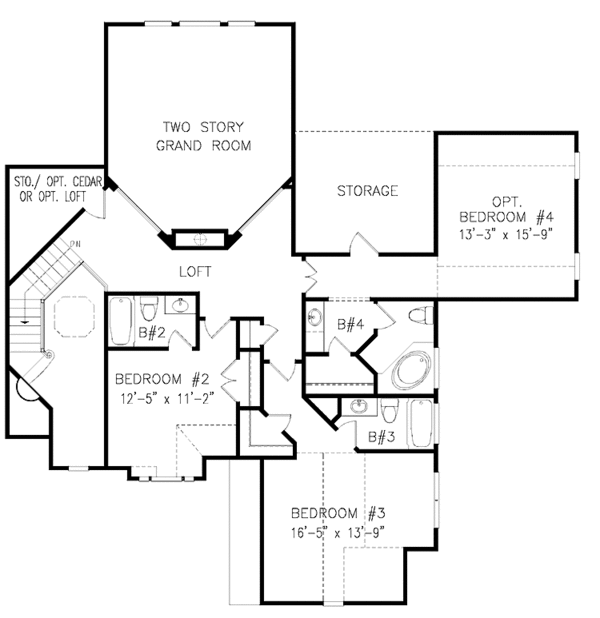

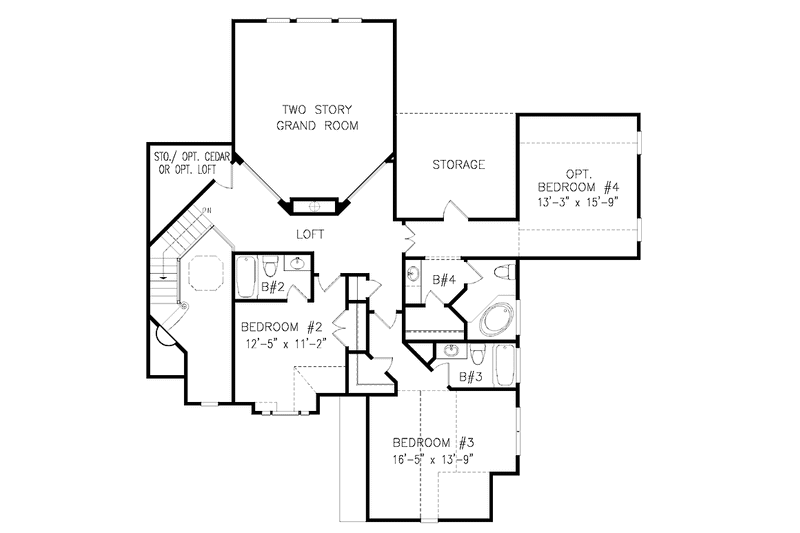

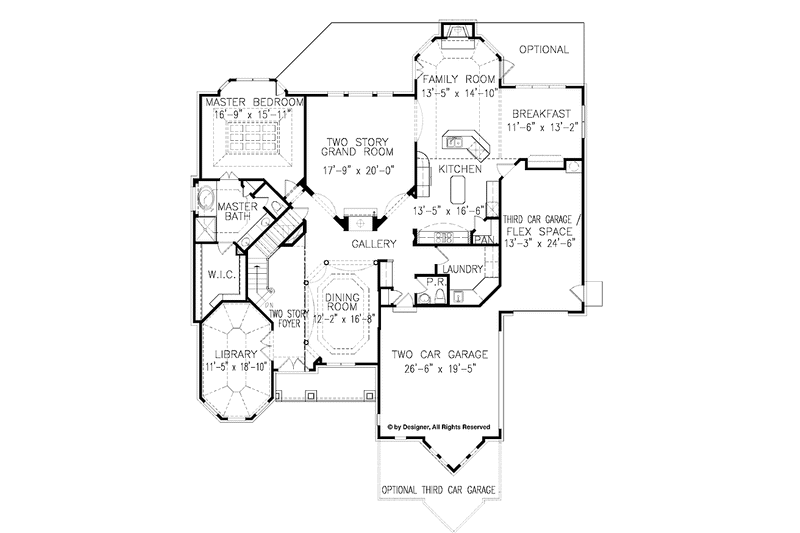

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-888-447-1946
Plan Set
| PDF Set : $1695.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set : $2745.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
