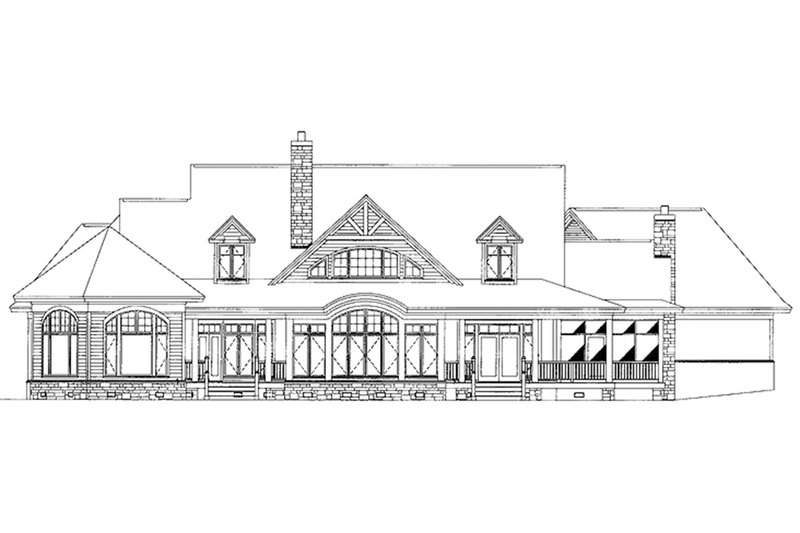

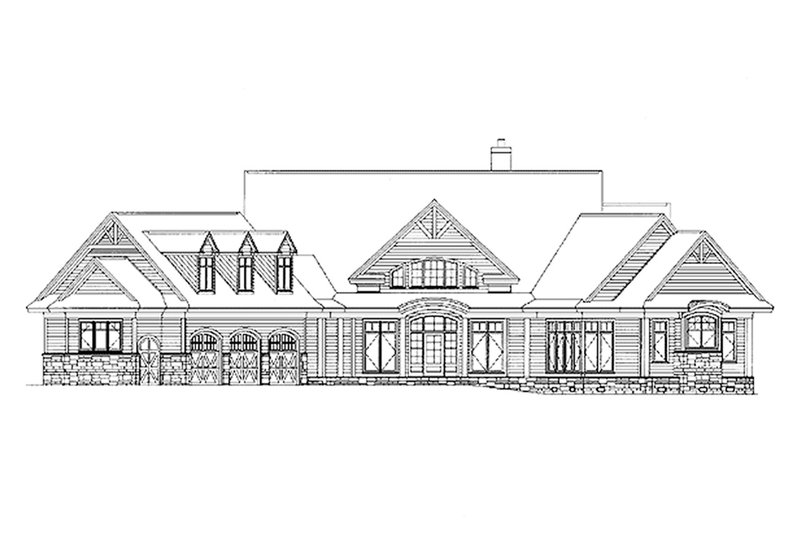

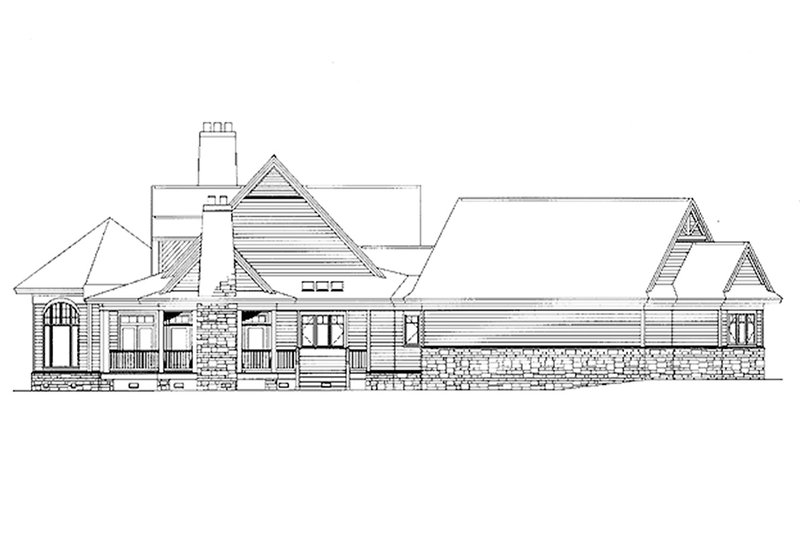

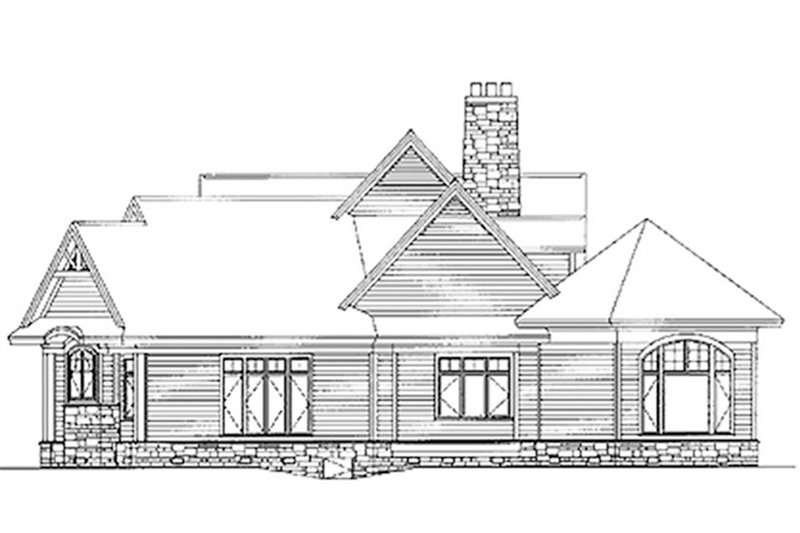

PLAN 929-655
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

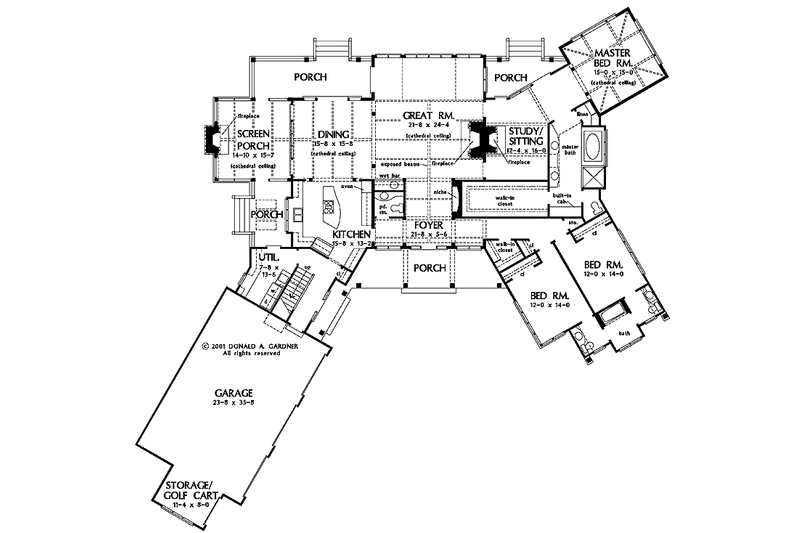

Floor Plan - Main Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 104' 1"
Height : 31'
Width : 106' 4"
Area
Bonus: 615 sq/ft
First Floor: 3188 sq/ft height 10'
Ceiling

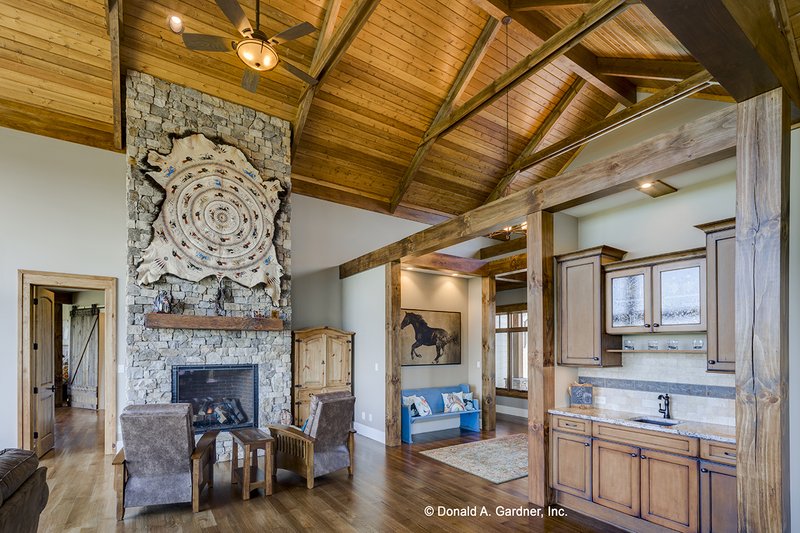

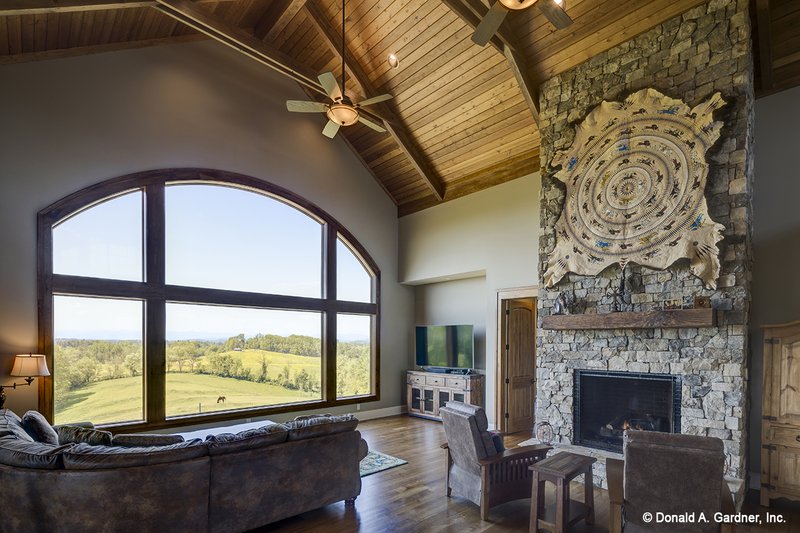

Ceiling Details : Beamed cathedral ceilings in Foyer, Great Room, Dining Area, Master Suite and Screened Porch.
Main Ceiling : 10'
Roof
Primary Pitch : 13:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features

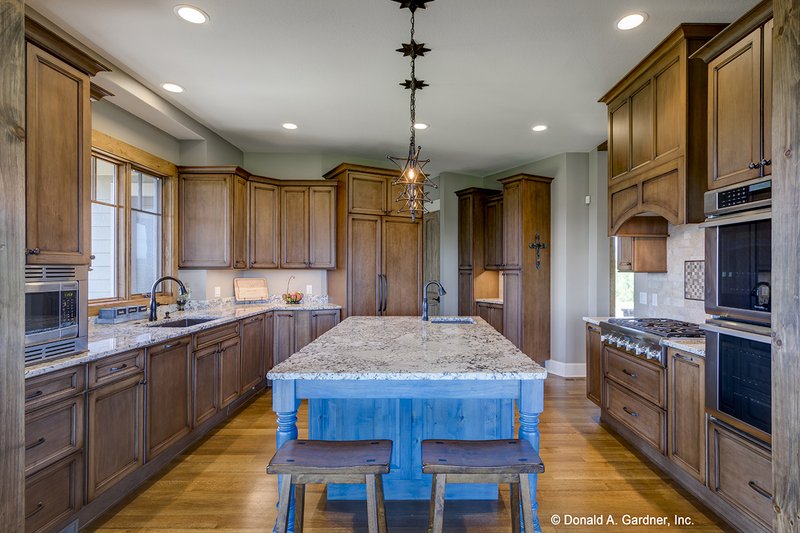

Kitchen Island
Additional Room Features
Great Room Living Room
Master Sitting Area
Open Floor Plan
Play Flex Room
Sunroom
Unfinished Future Space

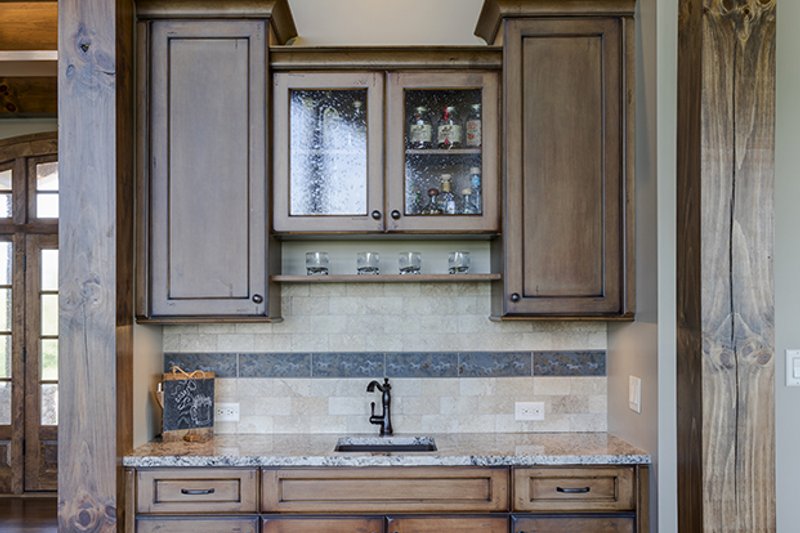

Wet Bar
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

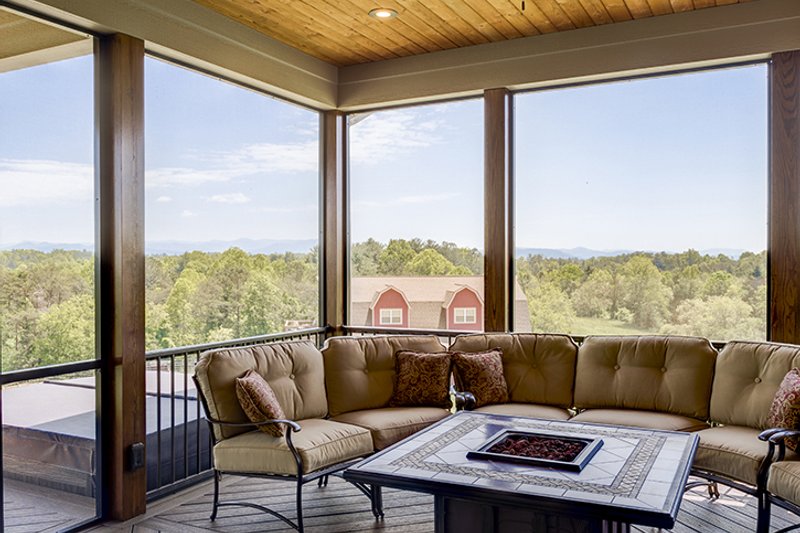

Screened Porch
More
Jack & Jill Bath
Rooms
3rd BR Closet:
16 sq/ft width 8' x depth 2'
Bathroom 2:
108 sq/ft width 18' x depth 6'
Bedroom 2:
168 sq/ft width 12' x depth 14'
Bedroom 2 Closet:
16 sq/ft width 8' x depth 2'
Bedroom 3:
168 sq/ft width 12' x depth 14'
Bedroom 3 Closet:
16 sq/ft width 8' x depth 2'

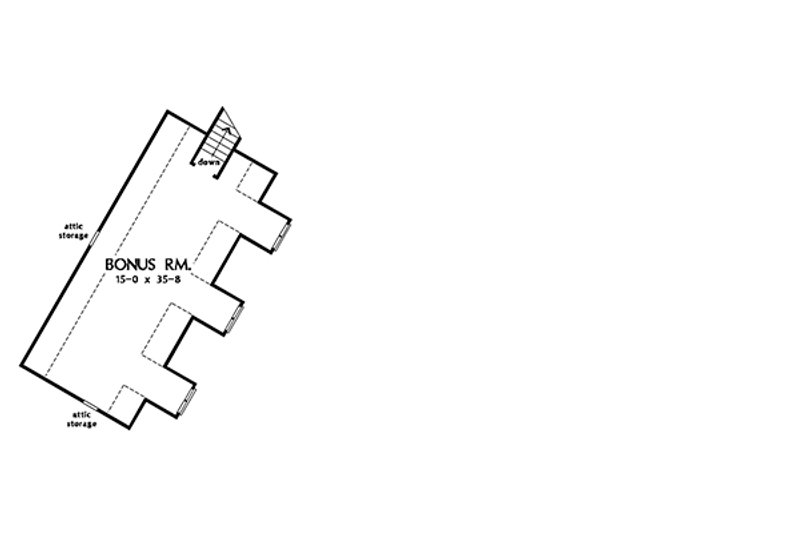

Bonus Room - Finished:
535 sq/ft width 15' x depth 35' 8"

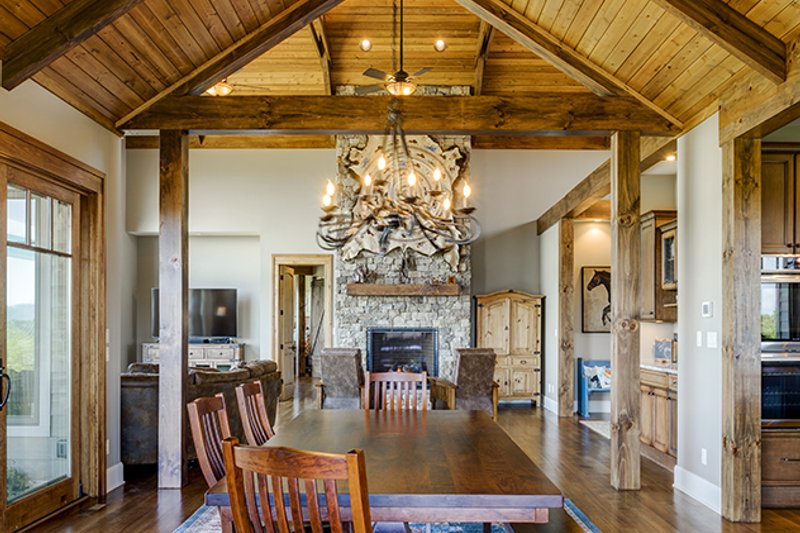

Dining Room:
245 sq/ft width 15' 8" x depth 15' 8"

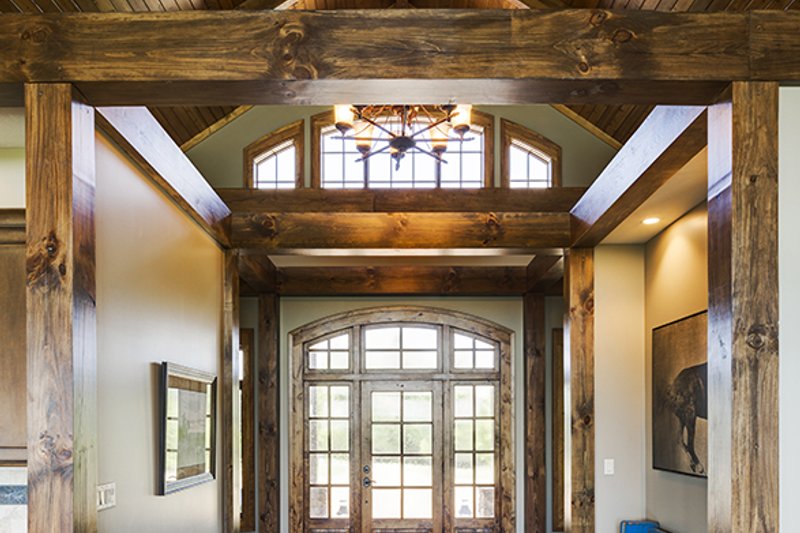

Foyer:
119 sq/ft width 21' 8" x depth 5' 6"
Garage:
844 sq/ft width 23' 8" x depth 35' 8"
Garage Storage:
90 sq/ft width 11' 4" x depth 8'
Gathering Room:
527 sq/ft width 21' 8" x depth 24' 4"
Hall Closet:
7 sq/ft width 2' x depth 3' 10"
Kitchen:
206 sq/ft width 15' 8" x depth 13' 2"

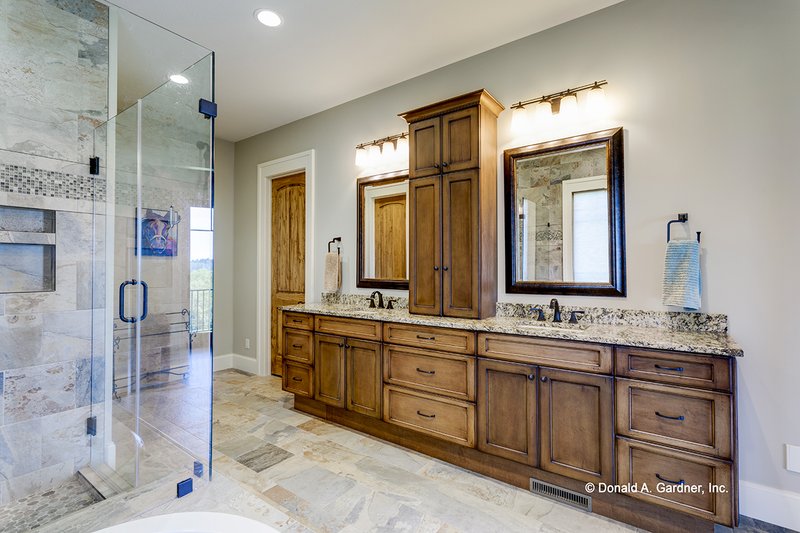

Master Bathroom:
181 sq/ft width 9' 10" x depth 18' 5"
Master Bedroom:
225 sq/ft width 15' x depth 15'
Master Closet:
119 sq/ft width 17' x depth 7'
Porch - Front:
214 sq/ft width 27' 5" x depth 7' 10"
Porch - Left:
106 sq/ft width 8' 4" x depth 12' 10"
Porch - Rear:
202 sq/ft width 24' 4" x depth 8' 4"
Powder Room:
29 sq/ft width 5' 10" x depth 5'
Storage:
8 sq/ft width 3' 2" x depth 2' 10"
Utility Room:
82 sq/ft width 7' 10" x depth 10' 7"
What's Included In This Plan Set
This designer charges $49.00 to review plan changes and prepare an estimate for your modifications.
This fee can be applied to your plan modifications once you move forward with the service. Please call if you would like to order a Plan Modification quote.
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
- Cover Sheet - A rendering of the front exterior of the house.
- Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
- Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
- Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
- Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
- Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
- Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
- Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
- Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
- Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.
Plan Set
$1875.00
$3275.00
$1675.00
Foundation
$0.00
$450.00
$450.00
Framing
$0.00
$450.00
Additional Options
$260.00
$100.00
$39.00
$325.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
