PLAN 70-1064
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

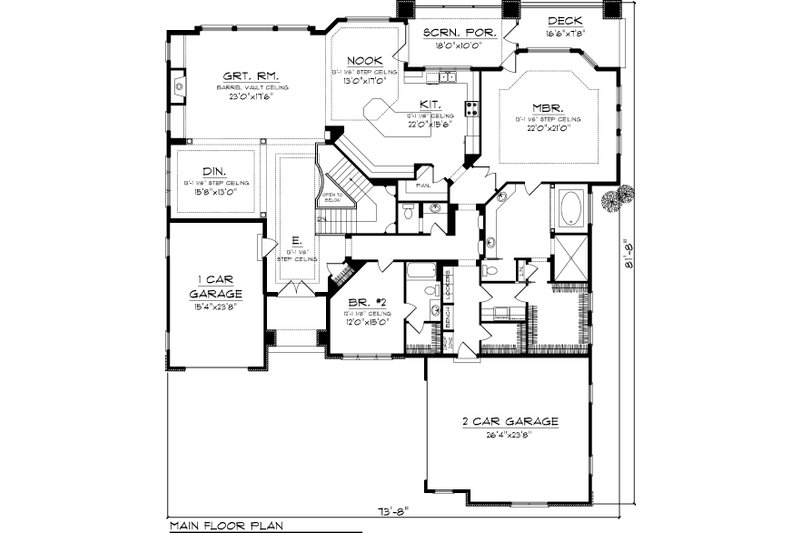

Floor Plans
Full Specs & Features
Dimension
Depth : 81' 8"
Height : 32' 4"
Width : 73' 8"
Area
First Floor: 3194 sq/ft
Garage: 1018 sq/ft
Ceiling
Ceiling Details : Entry, Dining Room, Nook, and Master Bedroom 13' StepGreat Room Barrel Vault
Main Ceiling : 12'
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Load : 47
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : stucco, stone
Framing : 2 x 6
Insulation : 19
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Sunroom
Garage Features
Front Entry Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
Screened Porch
Rooms
Basement:
width 73' 8" x depth 79'
Bathroom 2:
width 5' 8" x depth 9' 8"
Bedroom 2:
width 12' x depth 15'
Bedroom 2:
width 5' 8" x depth 5'
Bedroom 2 Closet:
width 7' 4" x depth 5'
Deck:
width 16' 6" x depth 7' 8"
Dining:
width 15' 8" x depth 13'
Family Room:
width 23' x depth 17' 6"
Foyer:
width 10' x depth 9' 4"
Garage:
634 sq/ft width 26' 4" x depth 23' 8"
Garage 2:
384 sq/ft width 15' 4" x depth 23' 8"
Half Bath:
width 8' 2" x depth 5'
Hall:
width 20' 10" x depth 4'
Hall Closet:
width 2' 1" x depth 3' 8"
Kitchen:
width 22' x depth 15' 6"
Laundry:
width 7' 4" x depth 6' 2"
Master Bath:
width 17' 4" x depth 16'
Master Bedroom:
width 22' x depth 21'
Master Walk In Closet:
width 9' 9" x depth 11' 6"
Mud Room:
width 60' x depth 14' 4"
Nook:
width 13' x depth 17'
Pantry:
width 8' x depth 5' 9"
Porch Front:
width 10' x depth 8'
Porch Rear:
width 18' x depth 10'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$1179.00
$1227.00
$1478.00
$1478.00
$2358.00
Foundation
$0.00
$395.00
$395.00
Additional Options
$395.00
$80.00
$100.00
$395.00
$39.00
$75.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
