PLAN 70-736
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

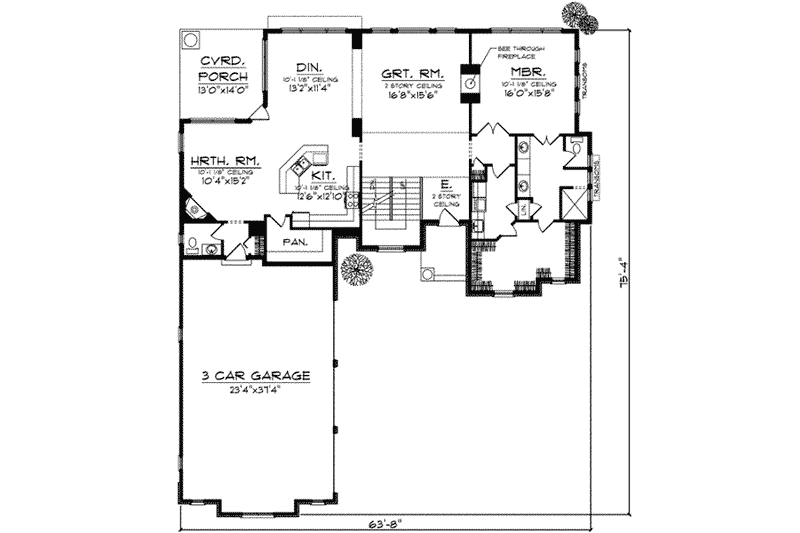

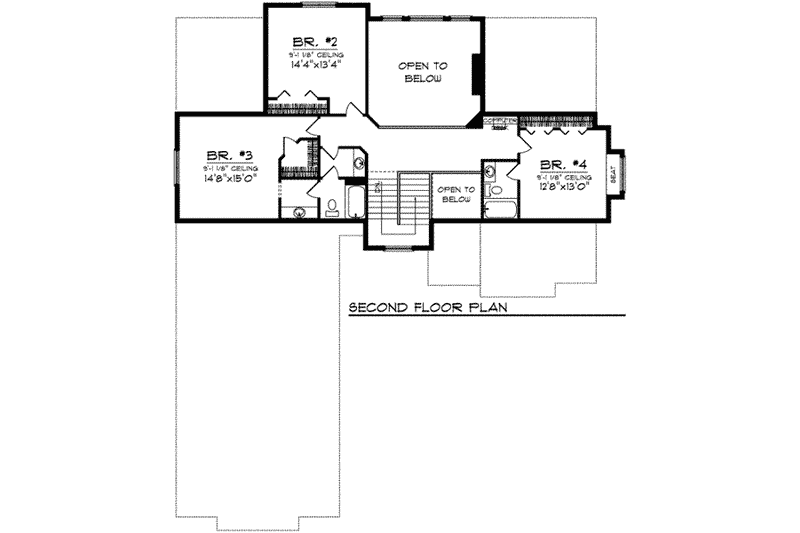

Floor Plans
Full Specs & Features
Dimension
Depth : 75' 4"
Height : 34'
Width : 63' 8"
Area
First Floor: 2064 sq/ft
Second Floor: 1121 sq/ft
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : 2"x6"
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Loft
Storage Area
Garage Features
Oversized Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Rooms
Basement Foundation:
4796 sq/ft width 63' 8" x depth 75' 4"
Bathroom 2:
42 sq/ft width 5' x depth 8' 5"
Bedroom 2:
191 sq/ft width 14' 4" x depth 13' 4"
Bedroom 3:
220 sq/ft width 14' 8" x depth 15'
Bedroom 4:
164 sq/ft width 12' 8" x depth 13'
Dining Room:
149 sq/ft width 13' 2" x depth 11' 4"
Foyer:
46 sq/ft width 7' 4" x depth 6' 4"
Garage:
871 sq/ft width 23' 4" x depth 37' 4"
Great Room:
258 sq/ft width 16' 8" x depth 15' 6"
Hall:
183 sq/ft width 29' x depth 6' 4"
Hall Closet:
6 sq/ft width 2' x depth 3'
Hearth Room:
156 sq/ft width 10' 4" x depth 15' 2"
Kitchen:
160 sq/ft width 12' 6" x depth 12' 10"
Master Bathroom:
143 sq/ft width 11' x depth 13'
Master Bedroom:
250 sq/ft width 16' x depth 15' 8"
Master Closet:
170 sq/ft width 16' x depth 10' 8"
Pantry:
50 sq/ft width 10' 2" x depth 5'
Porch - Front:
68 sq/ft width 7' 4" x depth 9' 4"
Porch - Rear:
182 sq/ft width 13' x depth 14'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale

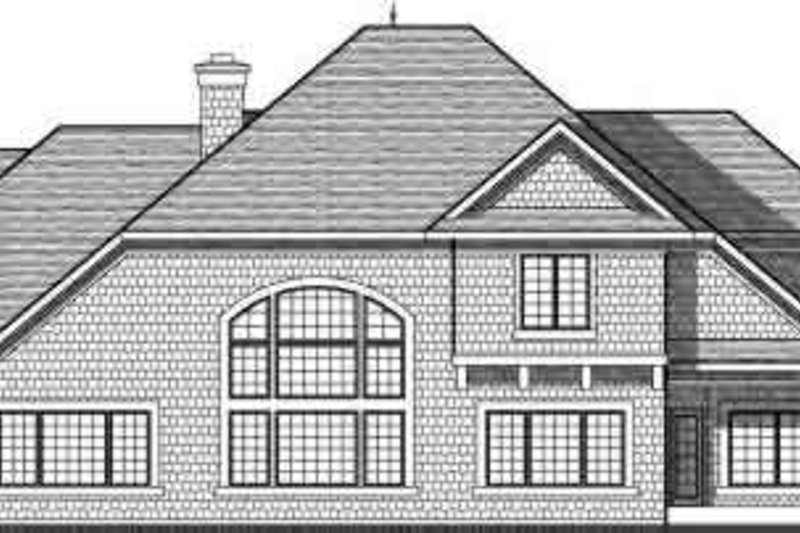

- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$1179.00
$1227.00
$1478.00
$1478.00
$2358.00
Foundation
$0.00
$395.00
$395.00
Additional Options
$395.00
$80.00
$100.00
$395.00
$39.00
$75.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
