PLAN 70-1065
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

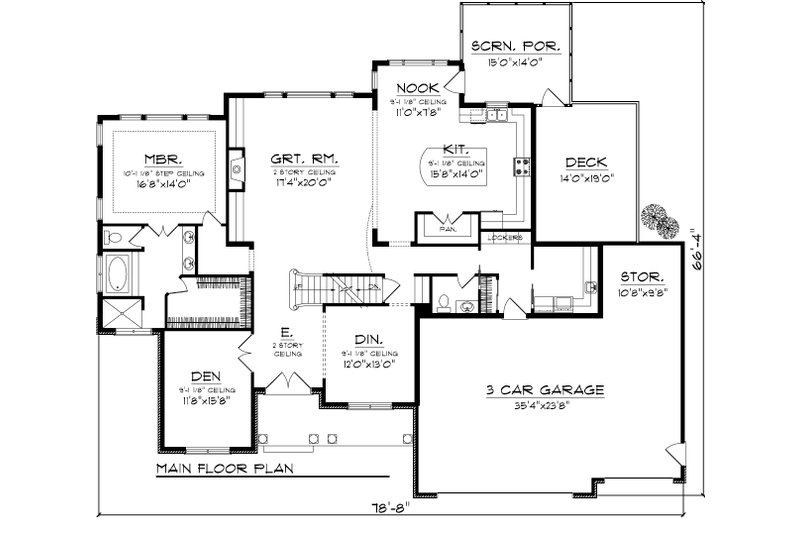

Floor Plan - Main Floor

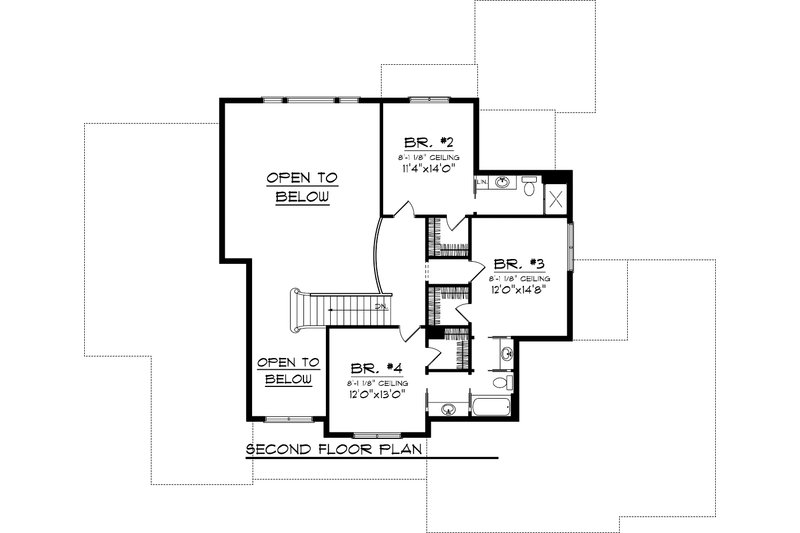

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 66' 4"
Height : 32' 10"
Width : 78' 8"
Area
First Floor: 2328 sq/ft height 9'
Garage: 942 sq/ft
Second Floor: 885 sq/ft height 8'
Ceiling
Ceiling Details : Entry, Great Room 2-Story. Master Bedroom 10' Step
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Load : 47
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Siding, Stucco, Stone
Framing : 2 x 6
Insulation : 19
Bedroom Features
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Storage Area
Sunroom
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
Screened Porch
Rooms
Basement:
78 sq/ft width 12' 10" x depth 4'
Bathroom 2:
width 11' 4" x depth 5'
Bedroom 2:
width 11' 4" x depth 14'
Bedroom 2 Closet:
width 5' x depth 4' 10"
Bedroom 3:
width 12' x depth 14' 8"
Bedroom 3 Closet:
width 5' x depth 4' 10"
Bedroom 4:
width 12' x depth 13'
Bedroom 4 Closet:
width 5' x depth 5'
Deck:
width 14' x depth 19'
Den:
width 11' 8" x depth 15' 8"
Dining:
width 12' x depth 13'
Family Room:
width 17' 4" x depth 20'
Foyer:
width 9' 4" x depth 11'
Garage:
942 sq/ft width 35' 4" x depth 23' 8"
Garage Storage:
width 10' 8" x depth 9' 8"
Half Bath:
width 6' 2" x depth 5'
Hall:
width 6' 2" x depth 13' 6"
Hall Closet:
width 2' 1" x depth 5'
Kitchen:
width 15' 8" x depth 14'
Laundry:
width 8' 8" x depth 9'
Master Bath:
width 12' 6" x depth 13' 9"
Master Bedroom:
width 16' 8" x depth 14'
Master Walk In Closet:
width 11' 4" x depth 6' 10"
Mud Room:
width 6' 10" x depth 5' 9"
Nook:
width 11' x depth 7' 8"
Pantry:
width 8' 2" x depth 4'
Porch Front:
width 21' 8" x depth 7' 4"
Porch Rear:
width 15' x depth 14'
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
Plan Set
$1179.00
$1227.00
$1478.00
$1478.00
$2358.00
Foundation
$0.00
$395.00
$395.00
Additional Options
$395.00
$80.00
$100.00
$395.00
$39.00
$75.00
* Alternate Foundations may take time to prepare.
