PLAN 930-408

Photographs may show modified designs.

Save
  • Jump to:
  • All (5)
  • Floor plans (2)
Questions? Get Personalized Help
Home  >  Style  >  Country

Key Specs


Plan Sq Ft

3223
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

3.5
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$275.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
$65.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Subtotal
$1948.00
Best Price Guaranteed*

Also order by phone: 1-888-447-1946

Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.


Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 930-408

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

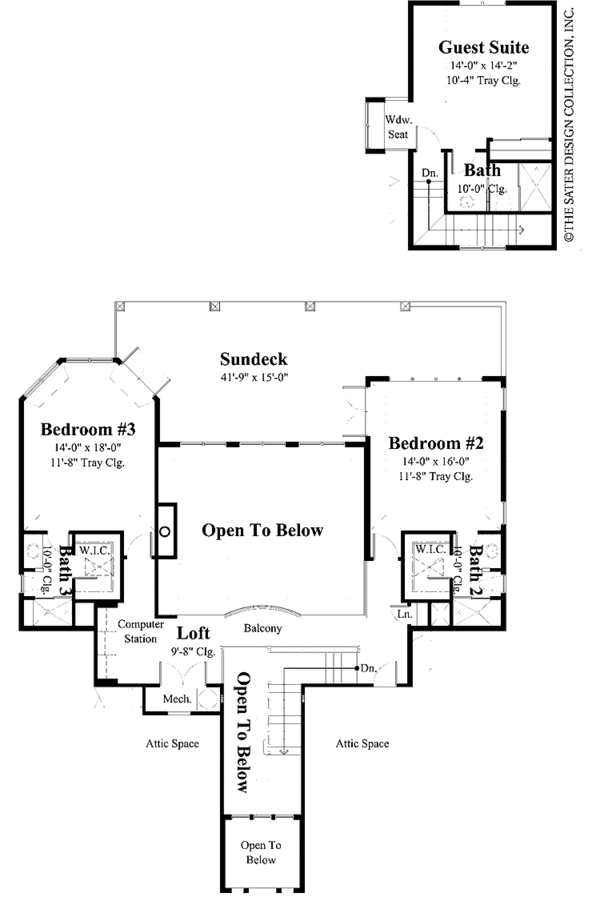

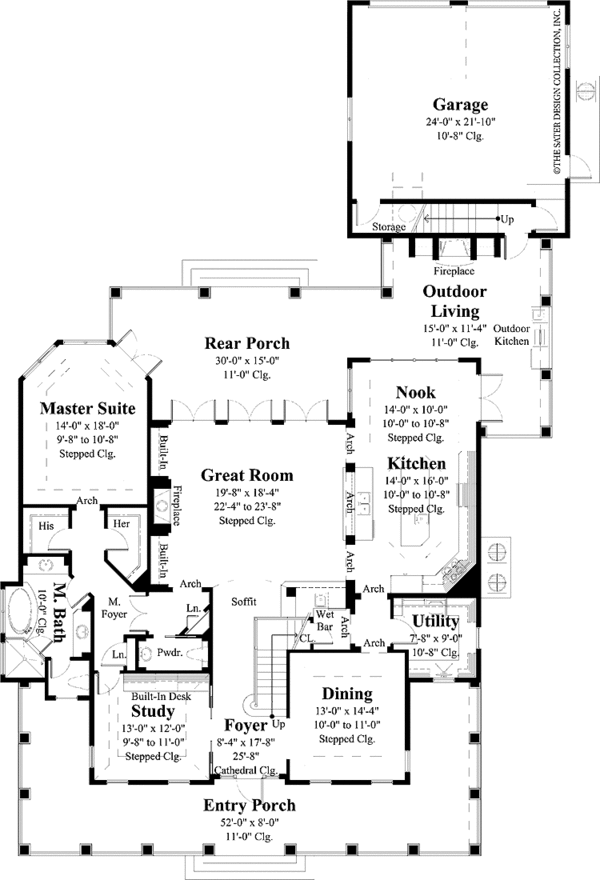

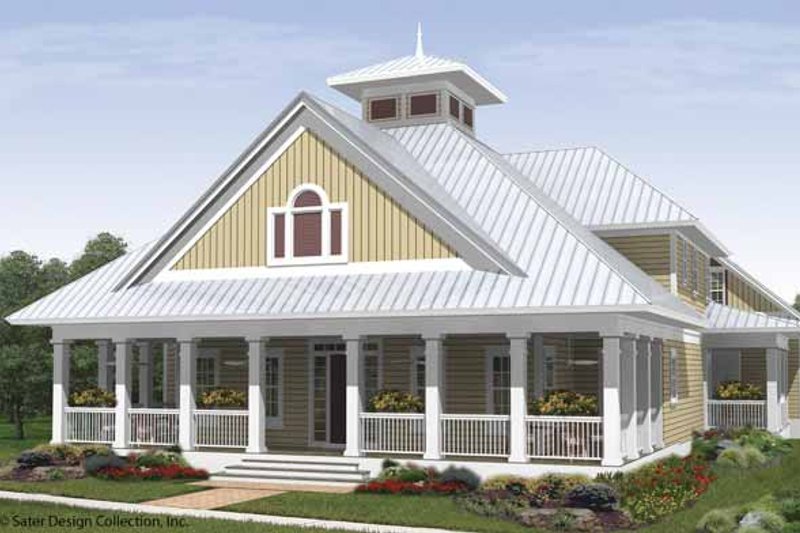

This graceful country home features fabulous spaces for outdoor entertaining, including an extensive wraparound porch in the front and an enormous rear porch, complete with outdoor kitchen and fireplace. Inside, elegant details abound. To the left of the foyer, a study (complete with built-in desk) provides a quiet respite, while a formal dining room lies to the right. The centrally located great room boasts built-in shelves, a fireplace, and elegant arches where the island kitchen begins. Occupying the left wing of this floor, the master suite includes an expansive bathroom, His and Hers closets, and private access to the study. Two upstairs bedrooms, each with a private bath, enjoy access to a sundeck. A guest suite above the garage could serve a myriad of functions, from home gym to artist’s studio to a private space for a live-in relative.

Full Specs & Features


Dimension

Depth : 96' 2"

Height : 39' 6"

Width : 64'

Area

Bonus: 452 sq/ft

First Floor: 2196 sq/ft

Second Floor: 1027 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Type : Concrete

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Bedroom Features

Formal Dining Room

Guest Suite

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Den Office Study Computer

Outdoor Spaces

Covered Front Porch

Deck

Rooms

Bedroom 2:

224 sq/ft width 14' x depth 16'

Bedroom 3:

252 sq/ft width 14' x depth 18'

Deck:

626 sq/ft width 41' 9" x depth 15'

Dining Room:

186 sq/ft width 13' x depth 14' 4"

Garage:

523 sq/ft width 24' x depth 21' 10"

Great Room:

360 sq/ft width 19' 8" x depth 18' 4"

Guest Suite:

198 sq/ft width 14' x depth 14' 2"

Kitchen:

224 sq/ft width 14' x depth 16'

Master Suite:

252 sq/ft width 14' x depth 18'

Nook:

140 sq/ft width 14' x depth 10'

Porch - Front:

416 sq/ft width 52' x depth 8'

Porch - Rear:

450 sq/ft width 30' x depth 15'

Study:

156 sq/ft width 13' x depth 12'

Utility Room:

69 sq/ft width 7' 8" x depth 9'

What's Included In This Plan Set


This designer charges $75.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan purchase once you move forward with the modifications. Please give us a call if you would like to order a Plan Modification quote.

Some of this designer's ready-made house plans are not for sale in Lee and Collier, and Charlotte Counties of Florida. Please give us a call if you are building in one of these counties.

Cover Sheet, Index & Site Plan: The cover sheet features an elevation of the exterior of the house that shows approximately how the home will look when built. The index lists the order of the drawings included, with page numbers for easy reference. The site plan is a scaled footprint of the house to help determine how the home will be placed on the building site.

Wall Sections & Notes: This section shows section cuts of the exterior wall from the roof down through the foundation. These wall sections specify the home’s construction and building materials. They also show the number of stories, type of foundation and the construction of the walls. Roofing materials, insulation, floor framing, wall finishes and elevation heights are all shown and referenced.

Typical Details & Notes: This section addresses all the facets and typical details you will want to include in your home, with the exception of local building code requirements. Architectural and structural elements are detailed, including: window and door components, railings, balusters, wood stairs and headers, interior walls, interior partitions, concrete steps and footings (if applicable).

Foundation layout Plan: This sheet provides a fully dimensioned and noted foundation layout, including references to footings, pads, and support walls. For plans with a basement, additional walls and columns may be shown. Basement plans come with a floor framing layout which may be included in this section or the floor framing section, depending on the plan. *Actual structural information should be obtained by a locally licensed engineer for your specific site location.

Detailed Floor Plan: This section provides detailed floor plan drawings and descriptions of all the elements that will be included on each floor of the home. The home’s exterior footprint, openings and interior rooms are carefully dimensioned. Important features are noted including built-ins, niches and appliances. All doors and windows are identified. Typically this section also includes the square footage information.

Reflected Ceiling Plan: This designer's most distinguishable features is the highly detailed ceiling treatments. This section shows ceiling heights and treatments. It also shows the details, profiles and finishes of the ceiling treatments. Arches and soffits are also specified in this section.

Floor Framing Plans: Homes with a basement or crawl space will have a floor framing plan for the first floor. Multi-story homes will have floor framing plans for upper floors as well. The floor framing plans provide structural information such as the joist location, spacing and direction, as well as the floor heights and stair openings.

Roof Layout: The overall layout and necessary details for roof design are provided in this section. If trusses are used, we suggest using a local truss manufacturer to design your roof trusses to comply with your local codes and regulations.

Exterior Elevations: Exterior elevations are drawings that show how the finished home will approximately look. In this section, elevations of the front, rear and left and right sides of the home are shown. Exterior materials, details and heights are noted on these drawings.

Building Section & Details: This section will illustrate the important changes in the floor, ceiling and roof heights or the relationship of different floors to one another. Interior elements of rooms and areas, such as columns, arches, headers and soffits, are also discernible and easier to visualize in a cross section.

Interior Elevations: These interior elevations show the specific details and design of the kitchen, bathrooms, utility rooms, fireplaces, bookcases, built-in units and other special interior features. The interior elevations vary based on the complexity of the home.

Electrical Plan: This section shows an electrical plan that will enhance functionality and highlight the unique architectural features of the home.

» See important information before purchasing.
Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1948.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$3308.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x6:
$0.00
Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$275.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$65.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
