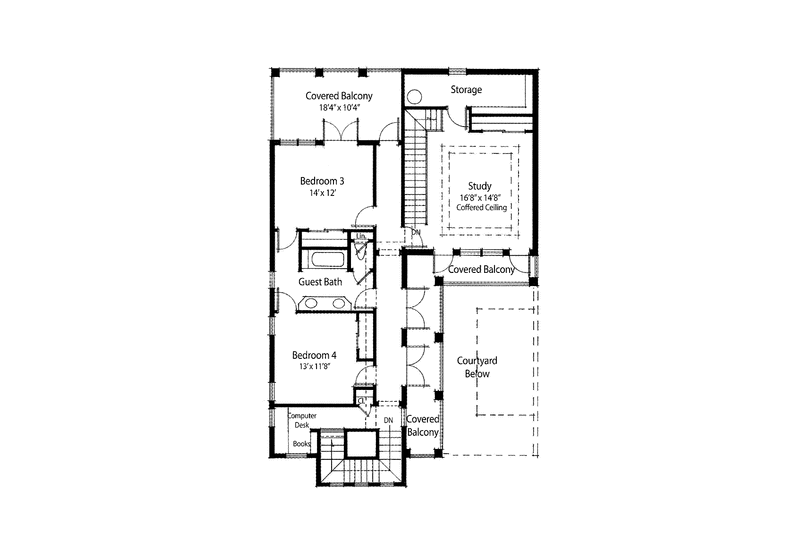

Home Plan - Mediterranean Floor Plan - Upper Floor Plan #938-25

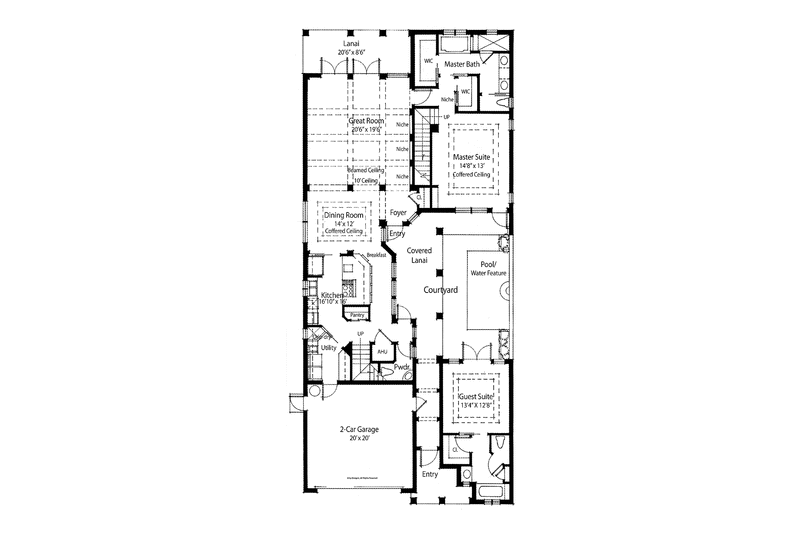

Home Plan - Mediterranean Floor Plan - Main Floor Plan #938-25

Jump to:
All (7)
Exterior (2)
Interior (3)
Floor plans (2)

Get Personalized Help

Home > Style > Mediterranean

Key Specs

3225
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Additional Construction Sets

$60.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$395.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$1995.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 938-25

Home > Style > Mediterranean

Key Specs

3225
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

Rows of arched windows on this marvelous Mediterranean from the Energy Saver Plus Home Plans Collection flood the interior with light. A small courtyard inside the first entryway hints at outdoor spaces to come. The whole home revolves around an expansive central courtyard, accessed by the first-floor master suite (an oasis with walk-in closets and a separate tub and shower), the open kitchen area, and a detached guest suite. Two bedrooms and a study upstairs enjoy large, covered balconies. Energy-saving building techniques included in this and all other Energy Saver Plus plans can enable energy savings of 40-50% when built to spec, compared to a typical new home.

Floor Plans

Floor Plan - Upper Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Main Floor

Full Specs & Features

Dimension

Depth : 90'

Height : 30' 6"

Width : 40'

Area

First Floor: 2150 sq/ft height 10'

Garage: 430 sq/ft height 10'

Second Floor: 1075 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 5:12

Roof Framing : Truss

Roof Type : Clay Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x6

Bedroom Features

Formal Dining Room

Guest Suite

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Loft

Main Floor Laundry

Open Floor Plan

Storage Area

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Courtyard

Covered Front Porch

Covered Rear Porch

Rooms

Balcony:

189 sq/ft width 18' 4" x depth 10' 4"

Bedroom 3:

168 sq/ft width 14' x depth 12'

Bedroom 4:

151 sq/ft width 13' x depth 11' 8"

Dining Room:

168 sq/ft width 14' x depth 12'

Garage:

400 sq/ft width 20' x depth 20'

Great Room:

399 sq/ft width 20' 6" x depth 19' 6"

Guest Suite:

168 sq/ft width 13' 4" x depth 12' 8"

Kitchen:

269 sq/ft width 16' 10" x depth 16'

Lanai:

174 sq/ft width 20' 6" x depth 8' 6"

Master Suite:

190 sq/ft width 14' 8" x depth 13'

Study:

244 sq/ft width 16' 8" x depth 14' 8"

What's Included In This Plan Set

See a sample plan set

Cover Sheet

The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.

Wall Sections

The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

Foundation Plan

The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

Second floor framing (where appropriate)

The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

Floor Plans

The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

Roof Plan & Soffit (Chase Layout) Plan

The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

Reflected Ceiling Plan

The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

Exterior Elevations

The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.

Cross Section & Interior Elevations

The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design.

Electrical Plan

The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1995.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$2495.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Additional Construction Sets:
$60.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$395.00

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
