PLAN 927-238

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

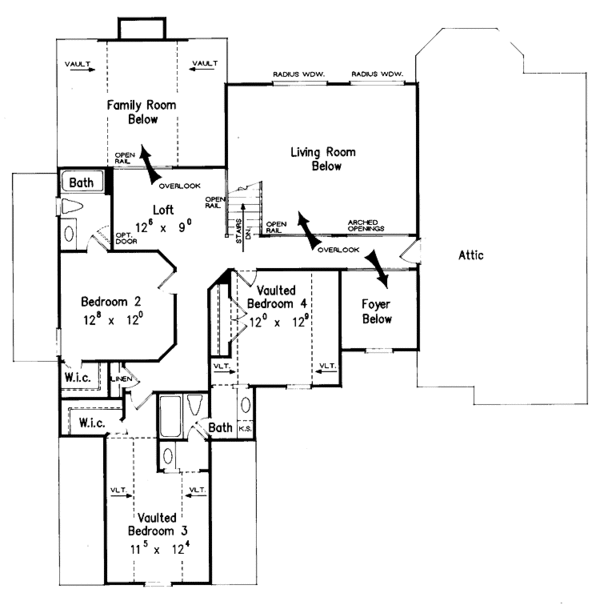

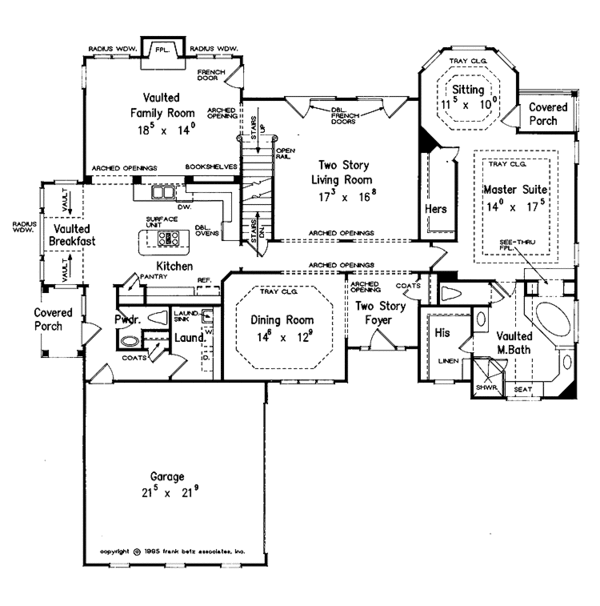

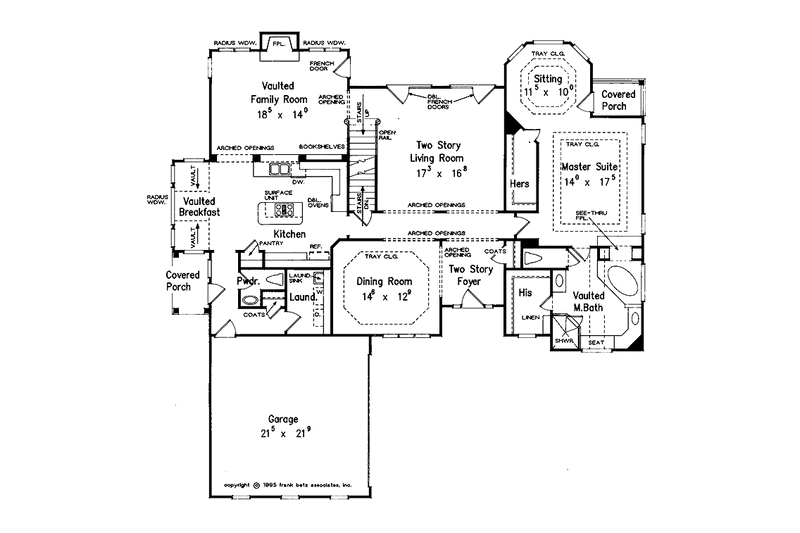

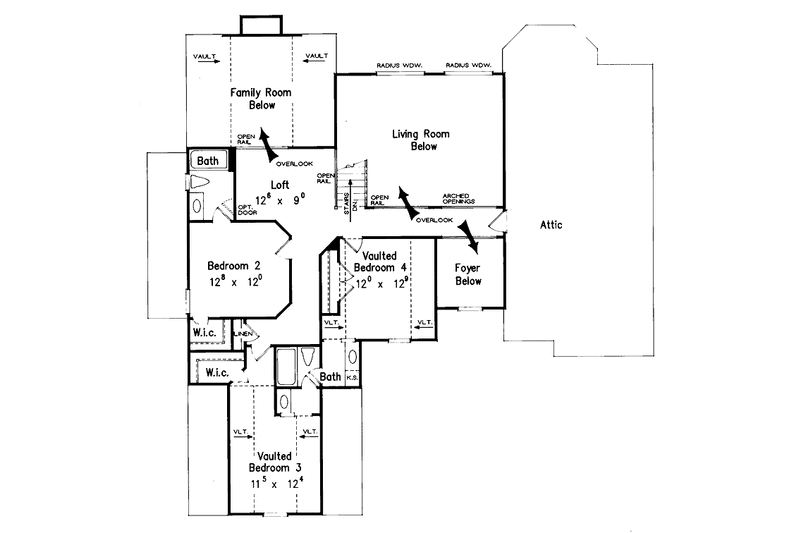

An array of rooflines and beautiful window details distinguish this luxurious home. Inside, find every amenity, including a huge kitchen, a family room with a fireplace and an master suite that occupies a wing of its own. The spacious L-shaped kitchen with a cooktop island includes a breakfast nook and easily serves the dining room. This room features a tray ceiling and leads to the two-story living room through arched openings. Upstairs, three more bedrooms share two baths and a loft overlooking both the family room and the living room. Please specify basement or crawlspace foundation when ordering.


Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.

Full Specs & Features


Dimension

Depth : 63' 4"

Height : 35'

Width : 64'

Area

First Floor: 2191 sq/ft height 9'

Second Floor: 1041 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Roof Framing : Conventional

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Living Room / Parlor

Split Bedrooms

Additional Room Features

Family Room Keeping Room

Unfinished Future Space

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bathroom 2:

50 sq/ft width 5' 7" x depth 9'

Bedroom 2:

152 sq/ft width 12' 8" x depth 12'

Bedroom 2 Closet:

19 sq/ft width 5' x depth 3' 10"

Bedroom 3:

140 sq/ft width 11' 5" x depth 12' 4"

Bedroom 3 Closet:

26 sq/ft width 6' 10" x depth 3' 10"

Bedroom 4:

153 sq/ft width 12' x depth 12' 9"

Breakfast Area:

128 sq/ft width 10' 8" x depth 12'

Dining Room:

184 sq/ft width 14' 6" x depth 12' 9"

Family Room:

257 sq/ft width 18' 5" x depth 14'

Foyer:

72 sq/ft width 8' 5" x depth 8' 8"

Garage:

465 sq/ft width 21' 5" x depth 21' 9"

Kitchen:

181 sq/ft width 12' 8" x depth 14' 4"

Laundry Room:

52 sq/ft width 6' x depth 8' 9"

Living Room:

287 sq/ft width 17' 3" x depth 16' 8"

Loft:

112 sq/ft width 12' 6" x depth 9'

Master Bathroom:

146 sq/ft width 12' 1" x depth 12' 1"

Master Bedroom:

243 sq/ft width 14' x depth 17' 5"

Master Closet - Hers:

43 sq/ft width 4' 2" x depth 10' 4"

Master Closet - His:

52 sq/ft width 6' x depth 8' 8"

Master Sitting Room:

114 sq/ft width 11' 5" x depth 10'

Powder Room:

30 sq/ft width 6' x depth 5'

What's Included In This Plan Set

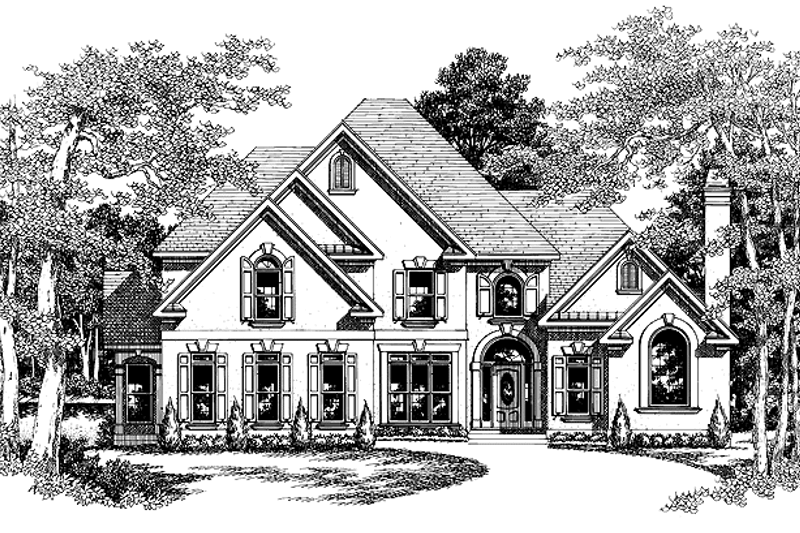

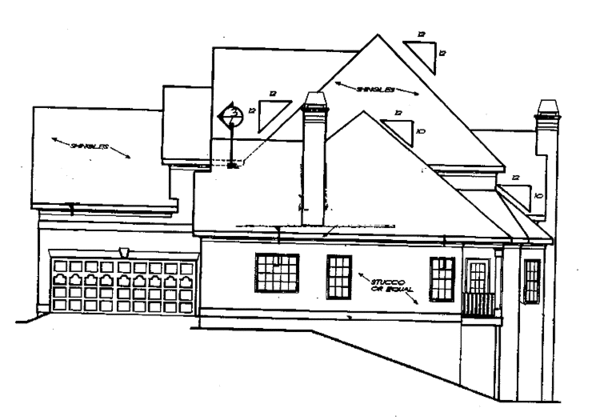

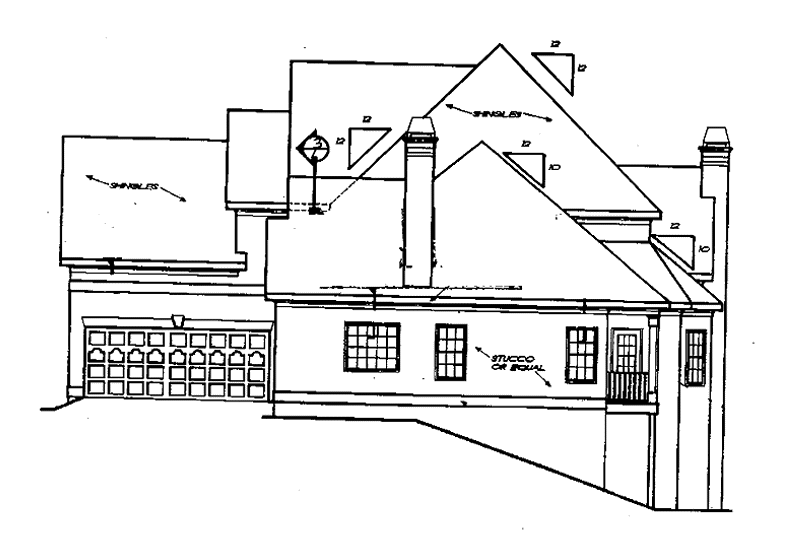

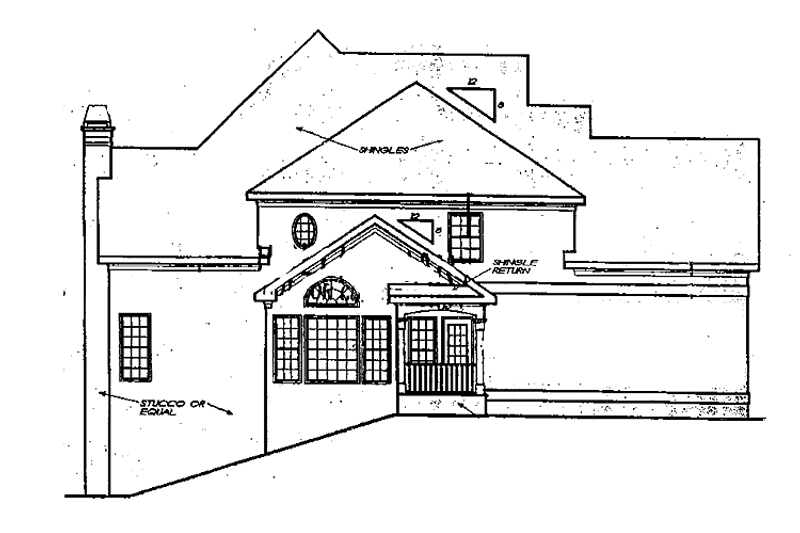

    All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
  • Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
  • Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
  • The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
  • Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
  • The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
  • The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
  • Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
