PLAN 60-1039
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

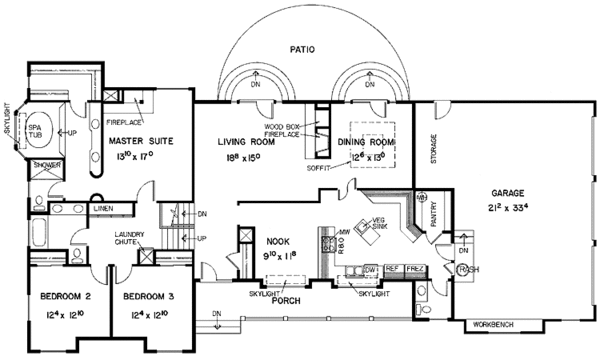

Floor Plans
Full Specs & Features
Dimension
Depth : 45'
Height : 22'
Width : 88'
Area

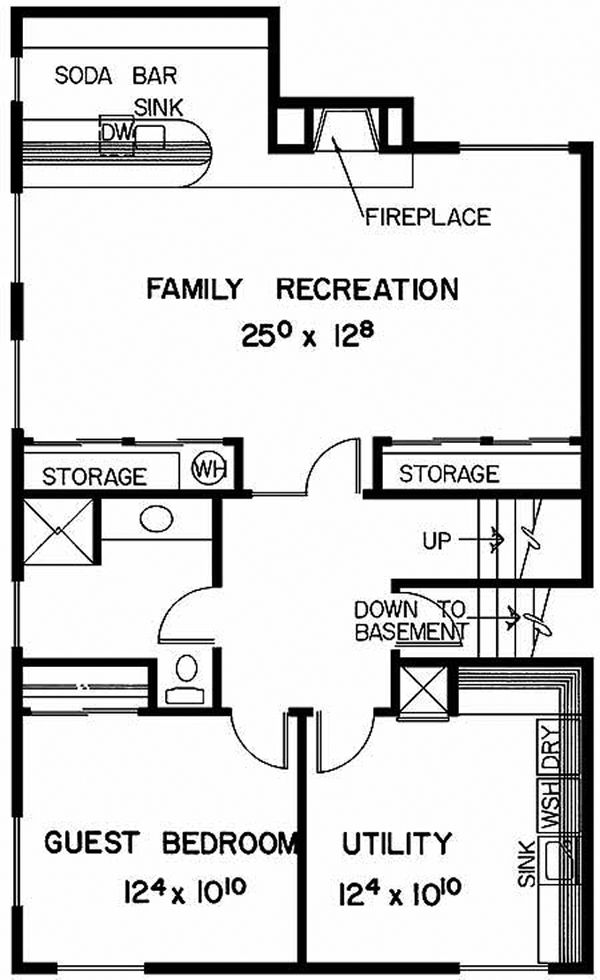

Basement Living: 1034 sq/ft
Basement Unfinished: 484 sq/ft
First Floor: 2201 sq/ft
Garage: 853 sq/ft
Roof
Primary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Family Room Keeping Room
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms
Bedroom 2:
158 sq/ft width 12' 4" x depth 12' 10"
Bedroom 3:
158 sq/ft width 12' 4" x depth 12' 10"
Dining Room:
164 sq/ft width 12' 8" x depth 13'
Family Room:
316 sq/ft width 25' x depth 12' 8"
Garage:
705 sq/ft width 21' 2" x depth 33' 4"
Guest Bedroom:
133 sq/ft width 12' 4" x depth 10' 10"
Living Room:
280 sq/ft width 18' 8" x depth 15'
Master Bath:
width 12' x depth 17' 4"
Master Closet:
width 12' x depth 6'
Master Suite:
235 sq/ft width 13' 10" x depth 17'
Utility Room:
133 sq/ft width 12' 4" x depth 10' 10"
What's Included In This Plan Set

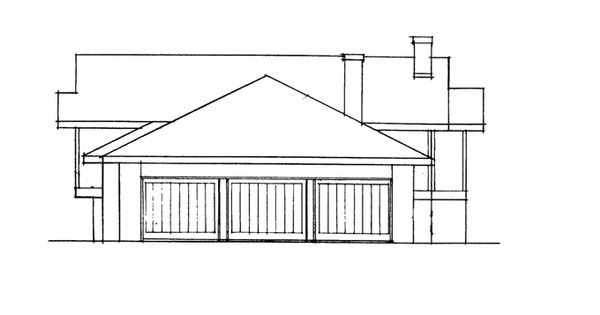

- Exterior Elevations are scaled (1/4" and 1/8" = 1'-0") drawings of the front, rear, left, and right sides of the home.
- Detailed Floor plans of the home accurately dimensioning the positioning of the walls, doors, windows, stairs, and permanent fixtures.
- Foundation plan details the foot print of the home. Location and size of load points, stem walls, footings, pony walls, and floor joist.
- Roof plans are typically truss planing, truss manufacturer will provide detail diagrams of truss's. In some cases the roof plans may be drawn as stick framed or have stick framing which will call out lumber sizes and spacing.
- Cross Sections offer a cut away through the home showing your builder the correlation of building components.
- Details indicate minimum CABO/IRC standards for construction of the home.
- Electrical plan shows the schematic of the electrical layout. Most electricians want to discuss the options the home owner desires prior to bidding.
- Mechanical and Detailed Plumbing plans are not included. These are site specific and are accomplished by those professionals.
- All plans are prepared in compliance with the Uniform Building Code (ICBO) or the International Residential Code, a National Standard for residential construction at the time of completion.
Plan Set
$1100.00
$1100.00
Foundation
$0.00
Framing
$0.00
Additional Options
$60.00
$100.00
$39.00
$200.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
