Plan Description
Spacious inverted layout single family home with 4 bedrooms and a second-level kitchen and great room.
Floor Plans

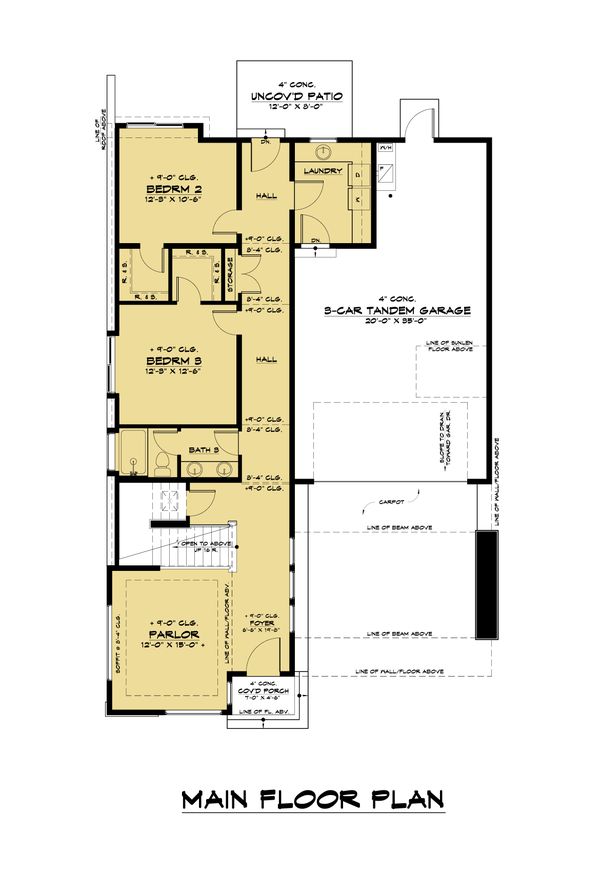

Floor Plan - Main Floor

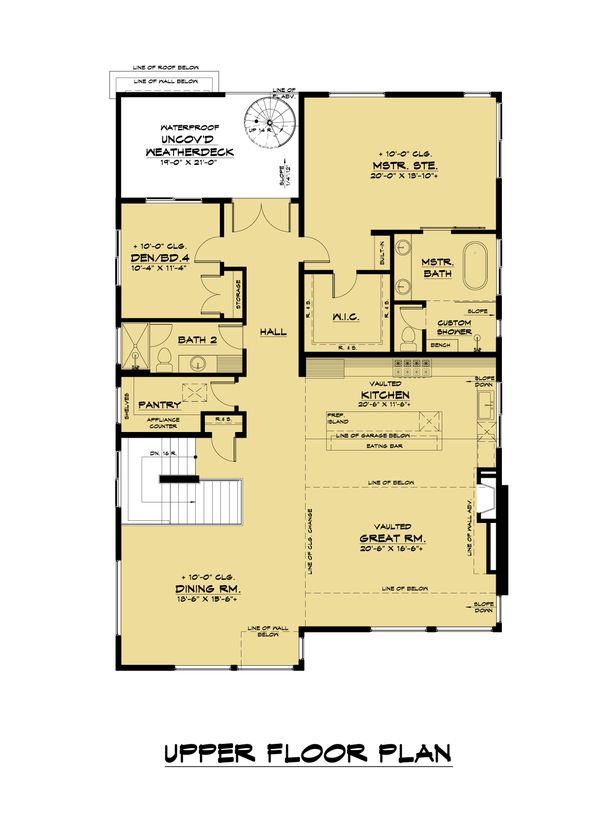

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 60'
Height : 27' 10"
Width : 40'
Area
Decks : 797 sq/ft
Garage : 607 sq/ft
Main Floor : 1214 sq/ft
Patios : 96 sq/ft
Porch : 32 sq/ft
Upper Floor : 2026 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Upper level ceiling is vaulted in kitchen and great room.
Garage Ceiling : 10' 6"
Main Ceiling : 9'
Upper Ceiling Ft : 10'
Roof
Primary Pitch : 2/12
Roof Framing : Raftors and MonoTrusses
Roof Load : 25 PSF
Roof Type : Metal
Exterior Wall Framing
Exterior Wall Finish : Siding, Stone and Hardie Panels
Framing : 2X6
Insulation : R21
Bedroom Features
Main Floor Bedrooms
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
» See important
information before purchasing.
Plans are typically drawn to ¼” scale and include:
- Cover Sheet: Drawing index, designer contact info, plan name/number, legal disclaimers. 3D Rendering and Project Information.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Wall Section(s): Detailed drawings showing wall connections, from foundation to the roof, wall connections to foundation, window installation, siding installation, stair details, and more.
- Door / Window Schedule(s): A list of all the doors and windows needed to construct the house. This can help with estimating materials costs.
