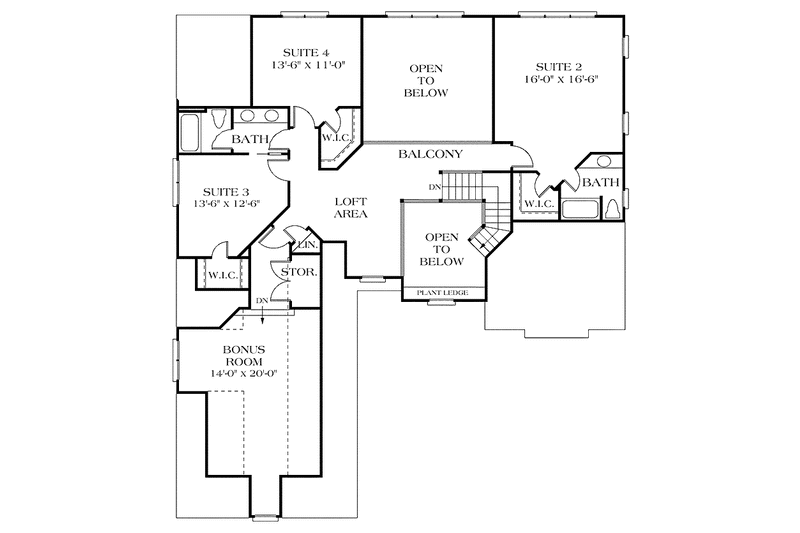

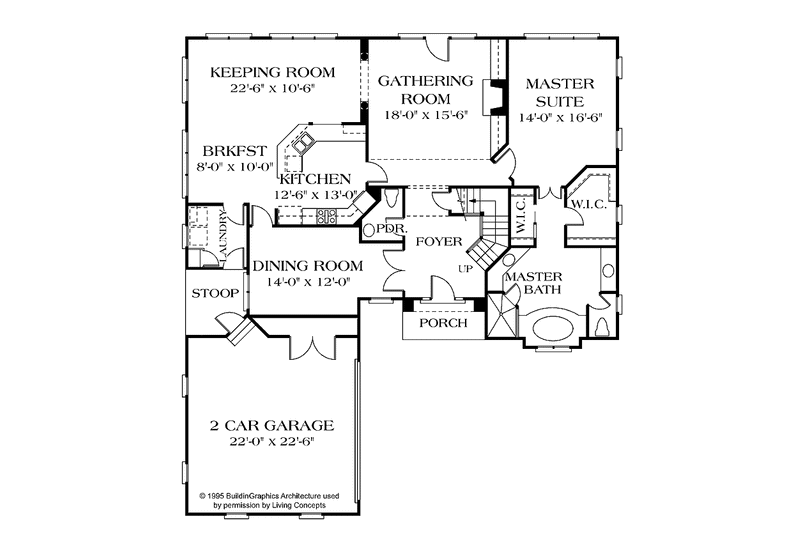

A complex facade set in stucco creates an alluring exterior to this plan. A porch dominated by arches and multi-paned glass opens to a curved staircase in the foyer. Double doors to your left lead to the formal dining room, with the gathering room in view up ahead. A simple extravagant master suite takes up the right wing of the floor plan, opening off of the gathering room. The keeping room, gathering room and master suite offer expansive rear views, and exterior access is provided in the gathering room. The kitchen and breakfast nook share space with the keeping room. There is access from here to the laundry room, dining room, and the garage, via an exterior stoop. Upstairs features as much space as downstairs, and includes three family bedrooms, a loft, and bonus room.
264 sq/ft width 16' x depth 16' 6"
168 sq/ft width 13' 6" x depth 12' 6"
148 sq/ft width 13' 6" x depth 11'
Bonus Room - Finished:
280 sq/ft width 14' x depth 20'
80 sq/ft width 8' x depth 10'
168 sq/ft width 14' x depth 12'
495 sq/ft width 22' x depth 22' 6"
279 sq/ft width 18' x depth 15' 6"
236 sq/ft width 22' 6" x depth 10' 6"
162 sq/ft width 12' 6" x depth 13'
231 sq/ft width 14' x depth 16' 6"
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
