PLAN 927-477
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

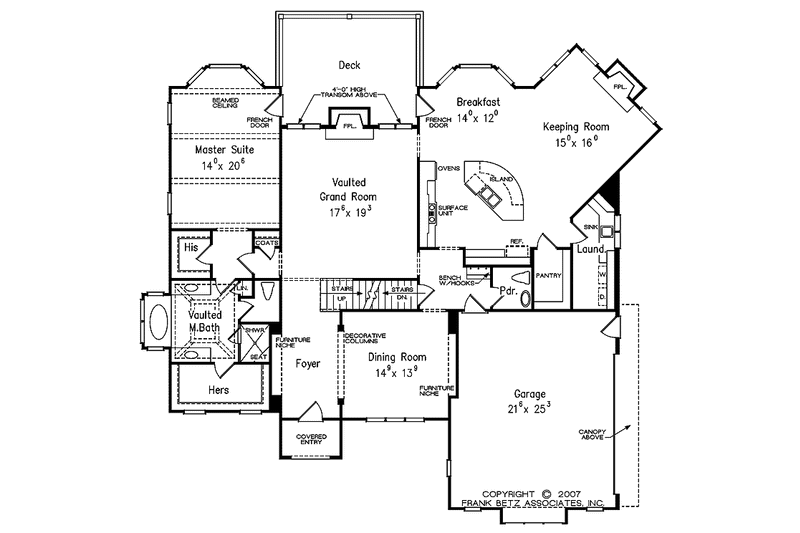

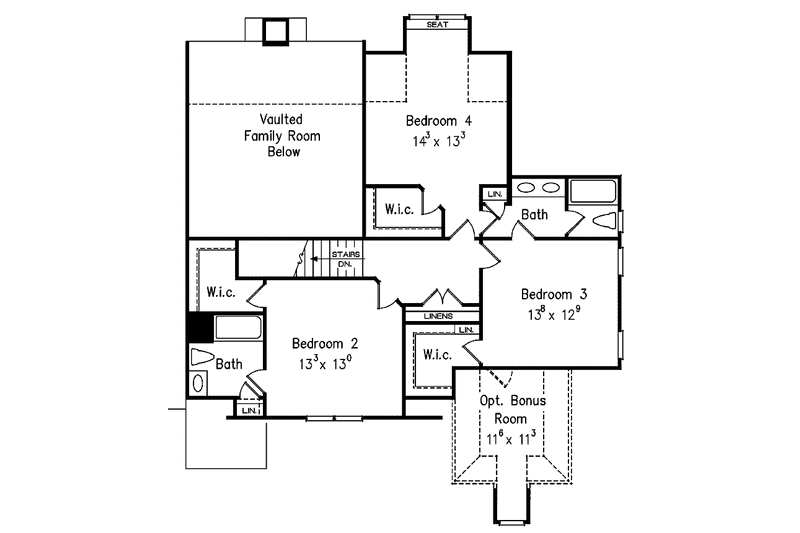

Floor Plans
Full Specs & Features
Dimension
Depth : 62'
Height : 33'
Width : 67'
Area
Bonus: 152 sq/ft
First Floor: 2226 sq/ft height 9'
Garage: 563 sq/ft
Second Floor: 1021 sq/ft height 9'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Great Room Living Room
Unfinished Future Space
Outdoor Spaces
Deck
Rooms
Bedroom 2:
189 sq/ft width 13' 9" x depth 13' 9"
Bedroom 3:
174 sq/ft width 13' 8" x depth 12' 9"
Bedroom 4:
185 sq/ft width 14' 3" x depth 13'
Bonus Room - Finished:
129 sq/ft width 11' 6" x depth 11' 3"
Breakfast:
168 sq/ft width 14' x depth 12'
Dining Room:
202 sq/ft width 14' 9" x depth 13' 9"
Family Room:
336 sq/ft width 17' 6" x depth 19' 3"
Foyer:
133 sq/ft width 7' 6" x depth 17' 9"
Garage:
542 sq/ft width 21' 6" x depth 25' 3"
Keeping Room:
240 sq/ft width 15' x depth 16'
Kitchen:
154 sq/ft width 14' x depth 11'
Laundry Room:
82 sq/ft width 5' 6" x depth 15'
Master Bathroom:
126 sq/ft width 12' x depth 10' 6"
Master Bedroom:
287 sq/ft width 14' x depth 20' 6"
Master Closet - Hers:
75 sq/ft width 12' 6" x depth 6'
Master Closet - His:
30 sq/ft width 5' x depth 6'
What's Included In This Plan Set
-
All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
- Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
- Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
- The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
- Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
- The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
Plan Set
$2395.00
$2595.00
$2745.00
$2945.00
$3195.00
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$295.00
$165.00
$395.00
$39.00
$165.00
$85.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
