PLAN 1060-5

Home > Style > Ranch

Key Specs

3249
sq ft

5
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This ranch design floor plan is 3249 sq ft and has 5 bedrooms and 3 bathrooms.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

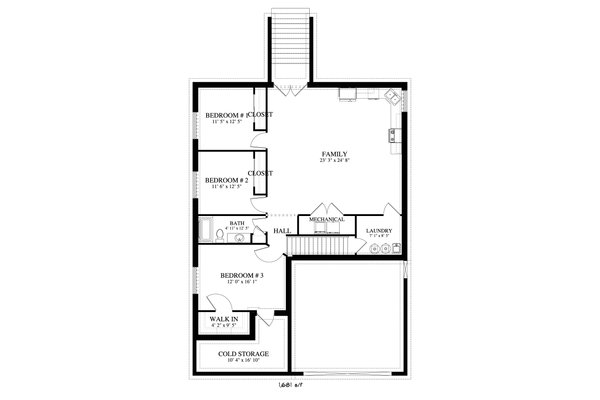

Floor Plan - Lower Floor

Reverse

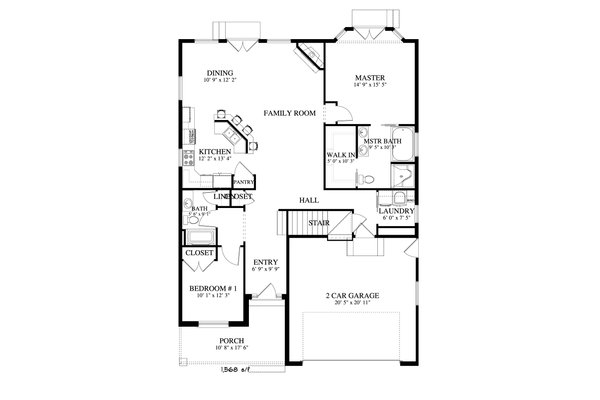

Floor Plan - Main Floor

Reverse

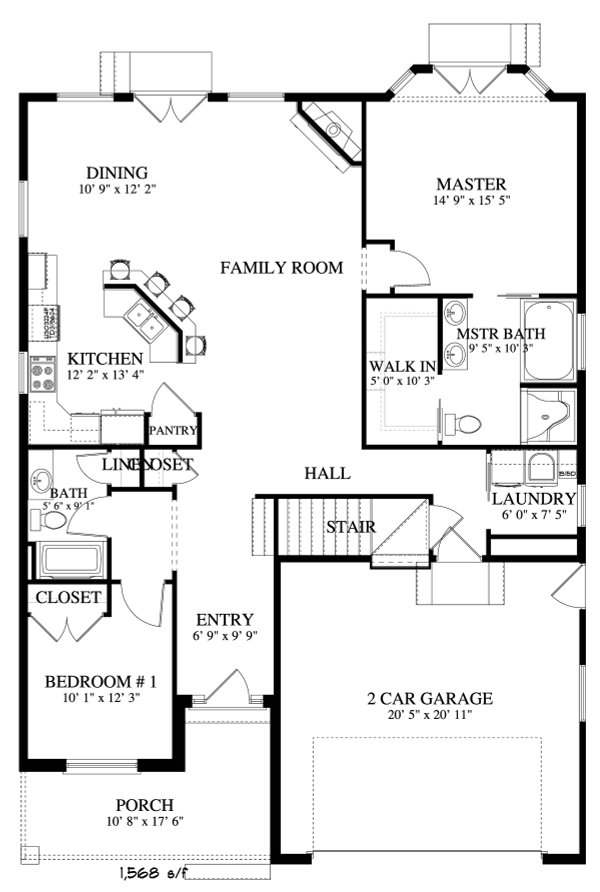

Floor Plan - Main Floor

Reverse

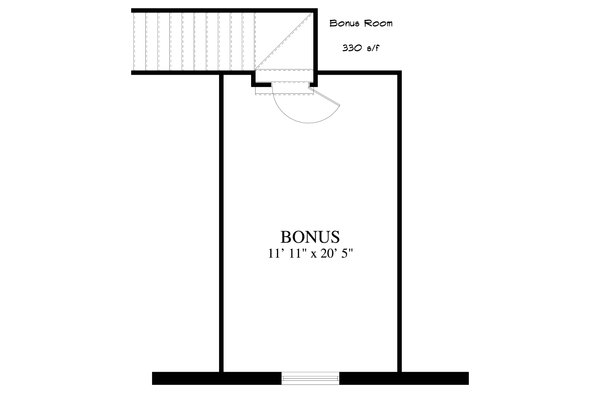

Floor Plan - Upper Floor

Reverse

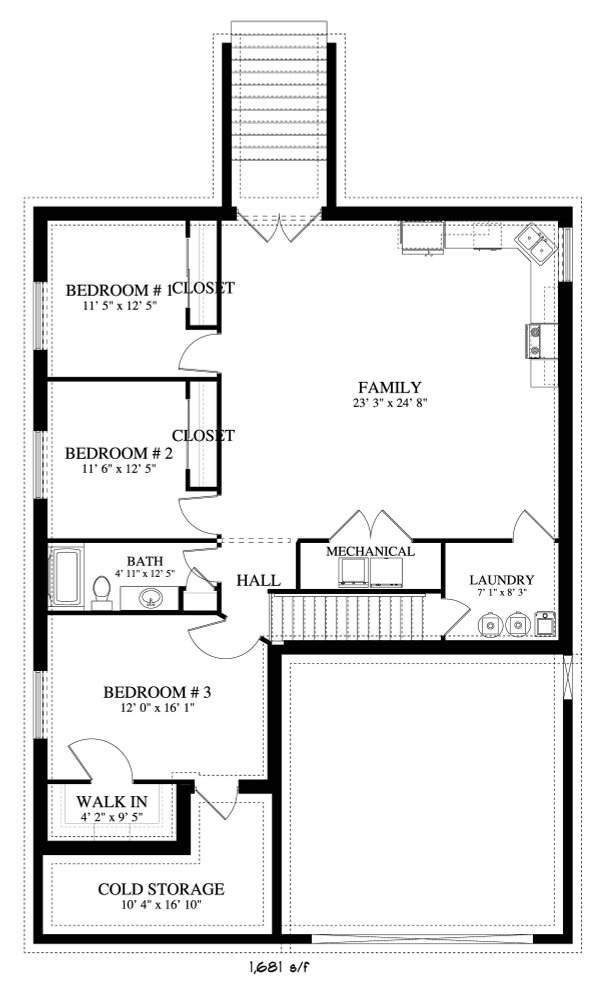

Floor Plan - Lower Floor

Reverse

Floor Plan - Lower Floor

Reverse

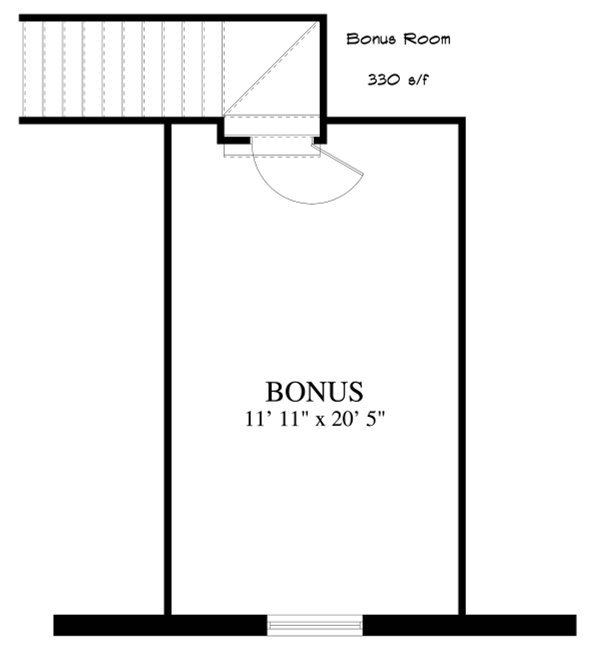

Floor Plan - Other Floor

Reverse

Full Specs & Features

Dimension

Depth : 54'

Height : 22' 5"

Width : 39' 6"

Area

Basement Living: 1681 sq/ft height 9'

Bonus: 330 sq/ft

First Floor: 1568 sq/ft height 9'

Garage: 449 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Truss

Roof Type : Asphalt

Secondary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone

Framing : Wood - 2x6

Bedroom Features

Fireplace

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Family Room Keeping Room

Hobby Rec Room Game Room

Main Floor Laundry

Open Floor Plan

Storage Area

Unfinished Future Space

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Rooms

Basement Family Room:

347 sq/ft width 24' 10" x depth 23' 5"

Bath 2:

51 sq/ft width 5' 7" x depth 9' 2"

Bath 3:

63 sq/ft width 16' 6" x depth 5'

Bedroom 2:

102 sq/ft width 10' 2" x depth 10'

Bedroom 3:

198 sq/ft width 16' 3" x depth 12' 2"

Bedroom 3 Closet:

41 sq/ft width 9' 7" x depth 4' 3"

Bedroom 4:

119 sq/ft width 10' 3" x depth 11' 7"

Bedroom 5:

119 sq/ft width 10' 3" x depth 11' 7"

Bonus Room:

330 sq/ft

Covered Front Porch:

177 sq/ft width 18' x depth 12'

Dining Room:

124 sq/ft width 10' 6" x depth 11' 10"

Entry:

96 sq/ft width 6' 10" x depth 14' 1"

Kitchen:

147 sq/ft width 12' x depth 12' 3"

Laundry Room:

36 sq/ft width 6' x depth 6'

Master Closet:

53 sq/ft width 5' 1" x depth 10' 4"

Master Bath:

98 sq/ft width 9' 6" x depth 10' 4"

Master Bedroom:

230 sq/ft width 14' 10" x depth 15' 6"

Mechanical:

60 sq/ft width 8' 3" x depth 7' 3"

Storage:

98 sq/ft width 16' 10" x depth 5' 10"

Upper Family Room:

373 sq/ft width 13' 5" x depth 27' 10"
