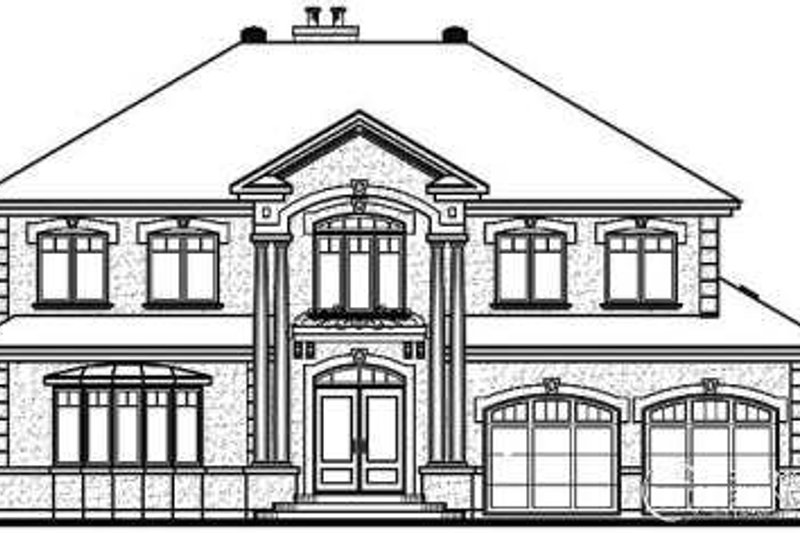

Home Plan - European Exterior - Other Elevation Plan #23-836

Home Plan - European Floor Plan - Main Floor Plan #23-836

Home Plan - European Floor Plan - Upper Floor Plan #23-836

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > European

Key Specs

3251
sq ft

5
Beds

3.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$225.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$65.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$2135.00

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2024 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 23-836

Home > Style > European

Key Specs

3251
sq ft

5
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This european design floor plan is 3251 sq ft and has 5 bedrooms and 3.5 bathrooms.

Floor Plans

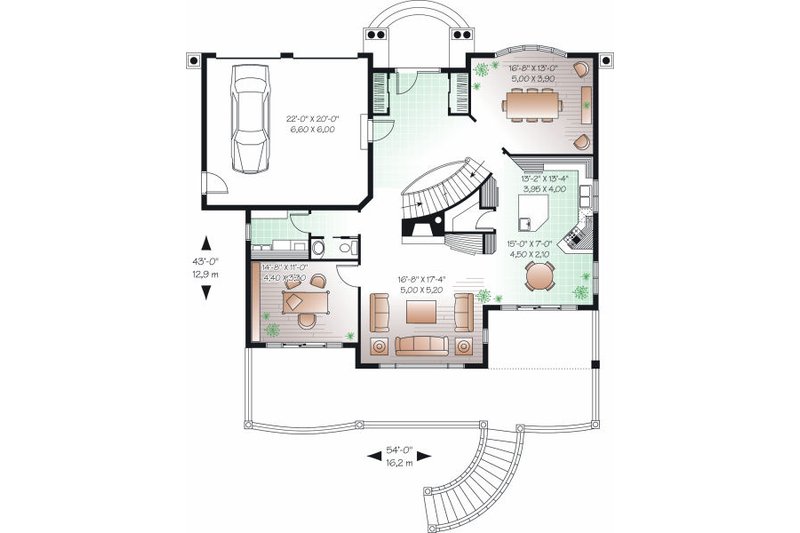

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

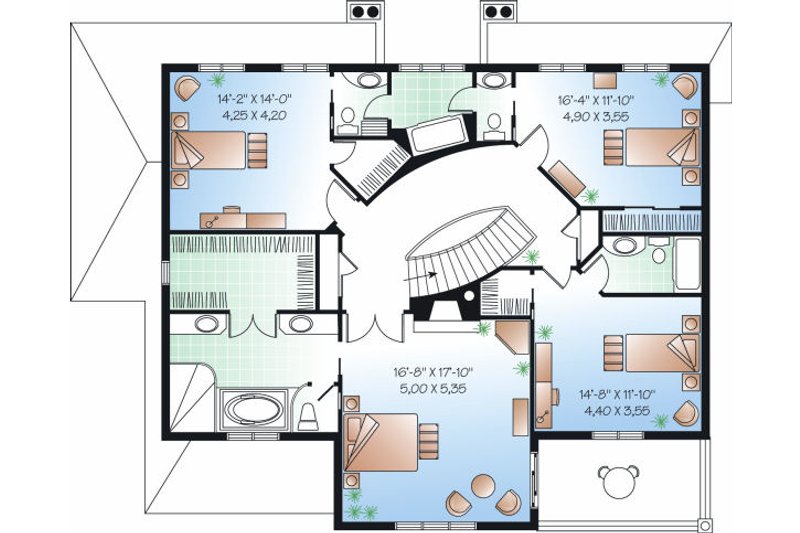

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 43'

Height : 31'

Width : 54'

Area

First Floor: 1536 sq/ft height 9'

Garage: 473 sq/ft

Second Floor: 1715 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 7:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Framing : Wood - 2x6

Bedroom Features

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Master Sitting Area

Storage Area

Unfinished Future Space

Lot Characteristics

Suited For Sloping Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 1:

173 sq/ft width 14' 8" x depth 11' 10"

Bedroom 2:

193 sq/ft width 16' 4" x depth 11' 10"

Bedroom 3:

198 sq/ft width 14' 2" x depth 14'

Breakfast Area:

105 sq/ft width 15' x depth 7'

Dining Room:

216 sq/ft width 16' 8" x depth 13'

Garage:

440 sq/ft width 22' x depth 20'

Gathering Room:

288 sq/ft width 16' 8" x depth 17' 4"

Kitchen:

175 sq/ft width 13' 2" x depth 13' 4"

Master Bedroom:

297 sq/ft width 16' 8" x depth 17' 10"
