PLAN 51-1119
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 51'
Height : 31'
Width : 67'
Area
First Floor: 1699 sq/ft height 9'
Garage: 893 sq/ft height 9'
Second Floor: 1614 sq/ft height 8'
Roof
Primary Pitch : 9:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Sunroom
Outdoor Spaces
Covered Front Porch
Deck
Screened Porch
Rooms
Bedroom 2:
152 sq/ft width 12' 8" x depth 12'
Bedroom 3:
145 sq/ft width 11' 4" x depth 12' 10"
Bedroom 4:
158 sq/ft width 11' 8" x depth 13' 7"
Covered Porch:
258 sq/ft width 32' 4" x depth 8'
Dinette:
190 sq/ft width 12' 8" x depth 15'
Dining Room:
187 sq/ft width 11' 8" x depth 16' 1"
Foyer:
92 sq/ft width 7' 4" x depth 12' 7"
Garage:
852 sq/ft width 21' 8" x depth 39' 4"
Great Room:
330 sq/ft width 19' 4" x depth 17' 1"
Kitchen:
216 sq/ft width 12' 8" x depth 17' 1"
Library:
168 sq/ft width 11' 8" x depth 14' 5"
Master Suite:
293 sq/ft width 19' 4" x depth 15' 2"
Master Walk-In Closet:
130 sq/ft width 7' 11" x depth 16' 6"
Sun Room:
101 sq/ft width 12' 8" x depth 8'
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

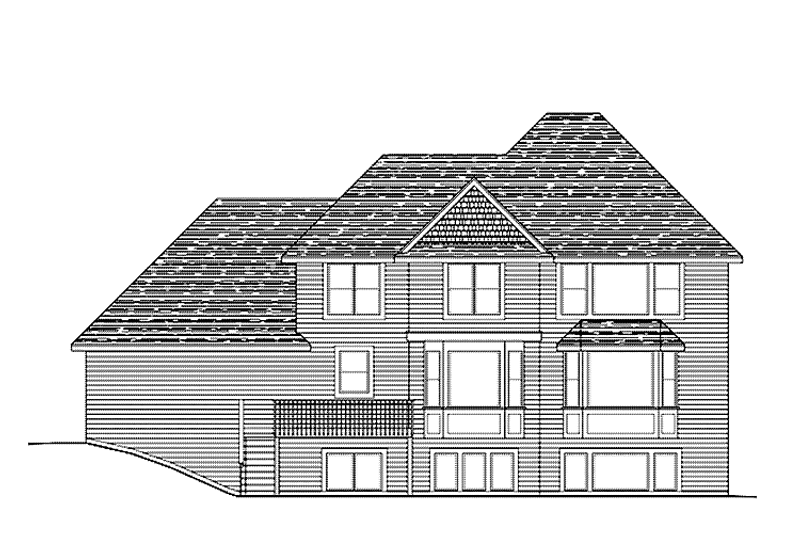

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.

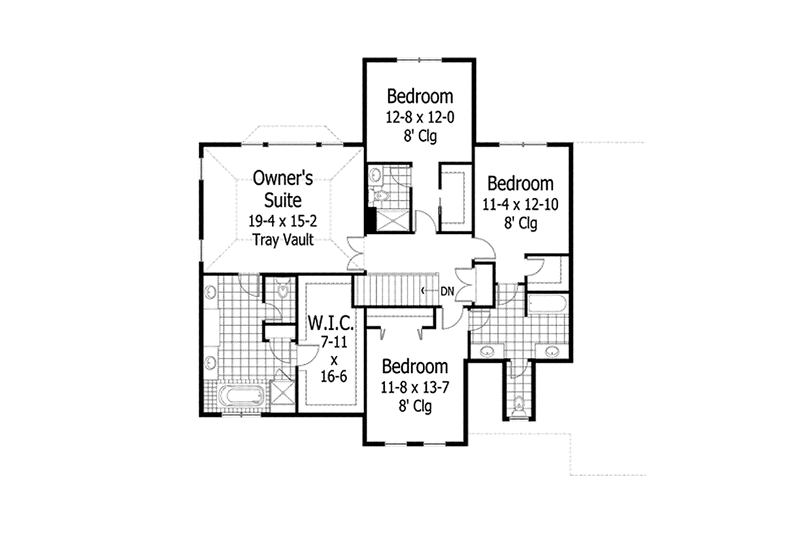

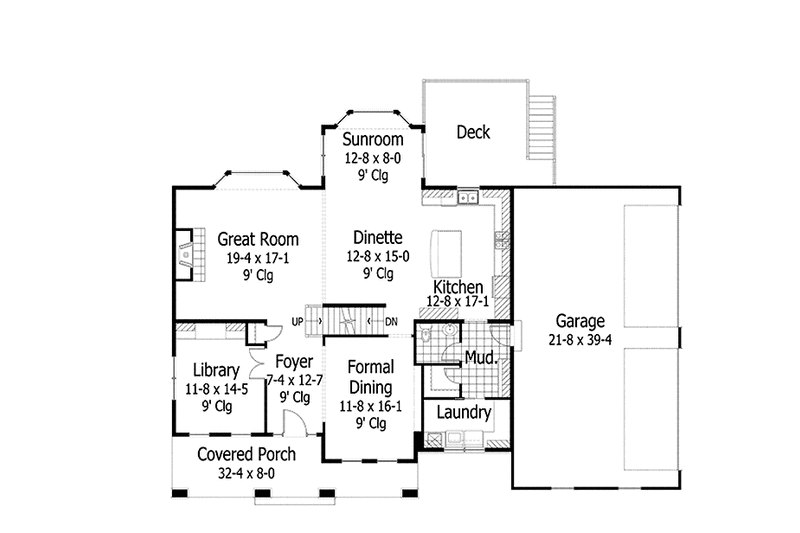

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
- Note: These plans will not contain an electrical layout.
Plan Set
$1200.00
$1400.00
$1420.00
$1840.00
Foundation
$0.00
Framing
$0.00
$200.00
Additional Options
$200.00
$48.00
$132.00
$31.20
$132.00
$40.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
