Plan Description
This mediterranean design floor plan is 3355 sq ft and has 3 bedrooms and 3 bathrooms.
Floor Plans

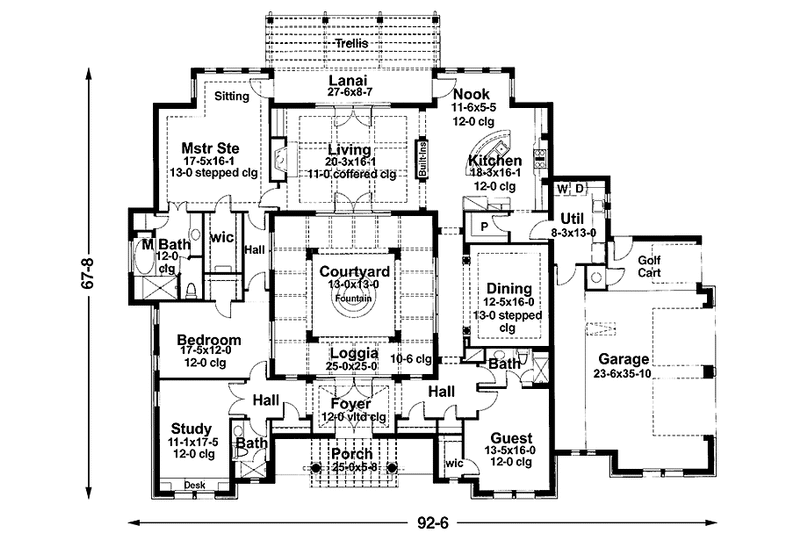

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 68'
Height : 19'
Width : 93'
Area
Basement Unfinished: 3355 sq/ft
First Floor: 3355 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : ICF (Insulated Concrete Forms)
Bedroom Features
Fireplace
Formal Dining Room
Guest Suite
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Main Floor Laundry
Master Sitting Area
Outdoor Spaces
Courtyard
Rooms
Bedroom 2:
209 sq/ft width 17' 5" x depth 12'
Breakfast Nook:
62 sq/ft width 11' 6" x depth 5' 5"
Dining Room:
198 sq/ft width 12' 5" x depth 16'
Entry:
117 sq/ft width 13' x depth 9'
Guest Bedroom:
214 sq/ft width 13' 5" x depth 16'
Kitchen:
294 sq/ft width 18' 4" x depth 16' 1"
Living Room:
327 sq/ft width 20' 4" x depth 16' 1"
Master Bathroom:
143 sq/ft width 11' x depth 13'
Master Bedroom:
280 sq/ft width 17' 5" x depth 16' 1"
Study:
193 sq/ft width 11' 1" x depth 17' 5"
Utility Room:
108 sq/ft width 8' 4" x depth 13'
