PLAN 84-619

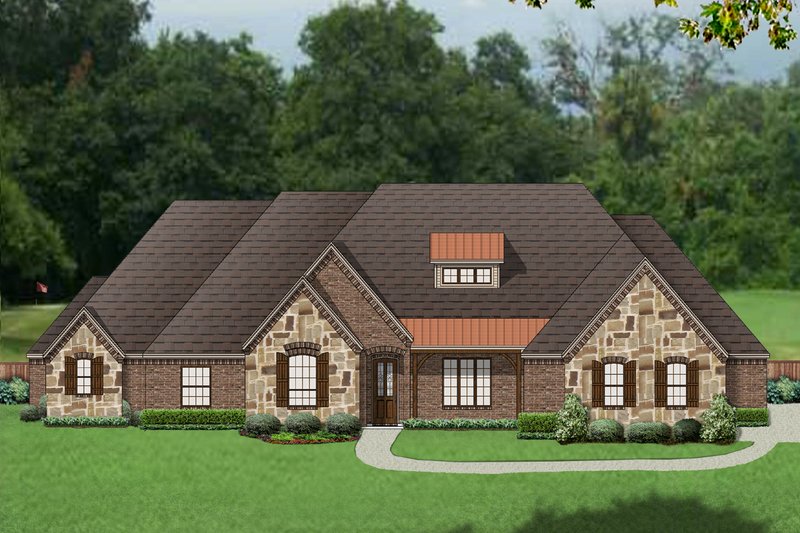

European Exterior - Front Elevation Plan #84-619
European Exterior - Rear Elevation Plan #84-619

Select Plan Set Options

What's included?
Additional Construction Sets
$45.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
$67.50
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
NOW $922.50
You save $102.50
(10% savings)
Sale ends soon!
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?

We do our best to get back within 24 - 48 business hours.
Need an answer fast? Call us now.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

See Terms & Conditions and Privacy Policy.

PLAN 84-619

Key Specs


3364
sq ft

4
Beds

2.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


There is a place for all of your dreams in this comfortable & spacious home. A generously sized dining room open to the entry with large family open to the gourmet kitchen & dinette. A pool bath & rear foyer are handy to the oversized 3 car garage. An elegant master & 3 bedrooms with walk-in closets & 2 baths round out the lower floor. Media room & large deck are perfect for watching movies or sunsets. Stone & Cedar add warmth to the front elevation, featuring a porch for waving to neighbors.

Floor Plans


Floor Plan - Main Floor Plan
Reverse
Save
Floor Plan - Upper Floor Plan
Reverse
Save

Full Specs & Features


Dimension
Depth : 53'
Height : 29' 3"
Width : 90'
Area
Deck: 219 sq/ft
First Floor: 3030 sq/ft
Garage: 796 sq/ft height 9'
Porch: 260 sq/ft
Second Floor: 334 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : 10' tier vault in master 9' tier in media
Garage Ceiling : 9'
Main Ceiling : 10'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Gables
Secondary Pitch : 14:12
Exterior Wall Framing
Exterior Wall Finish : Brick, stone
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Mud Room
Garage Features
Side Entry Garage
Entryway
Friend S Entry
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
Rooms

Bedroom 2:

width 11' 10" x depth 12' 8"

Bedroom 3:

width 11' 10" x depth 12' 8"

Bedroom 4:

width 12' 4" x depth 13'

Deck:

219 sq/ft width 23' x depth 10' 4"

Dinette:

width 12' 6" x depth 12'

Dining Room:

width 13' 6" x depth 12'

Family Room:

width 21' 8" x depth 20'

Front Porch:

96 sq/ft

Garage:

796 sq/ft width 21' x depth 32' 2"

Kitchen:

width 12' 4" x depth 15' 10"

Master Suite:

width 16' x depth 18' 4"

Media Room:

width 14' 4" x depth 20'

Rear Porch:

260 sq/ft width 32' 2" x depth 10' 4"

What's Included In This Plan Set


See a sample plan set
  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale
  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.
  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
» See important information before purchasing.

Plan Set

PDF Set :
$922.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1035.00
5 printed plan sets mailed to you.
8 Copy Set :
$1125.00
8 printed plan sets mailed to you.
Reproducible Set :
$1125.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$1845.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$810.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse :
$180.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
$45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$90.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$180.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
$67.50
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
