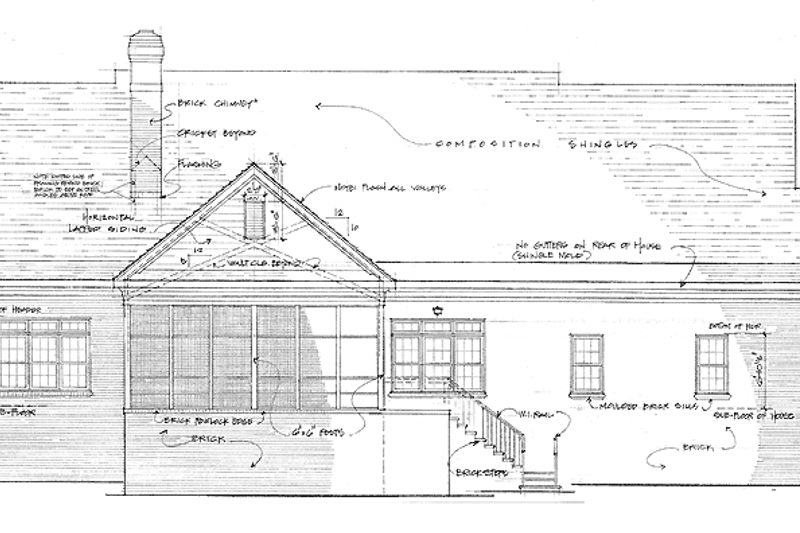

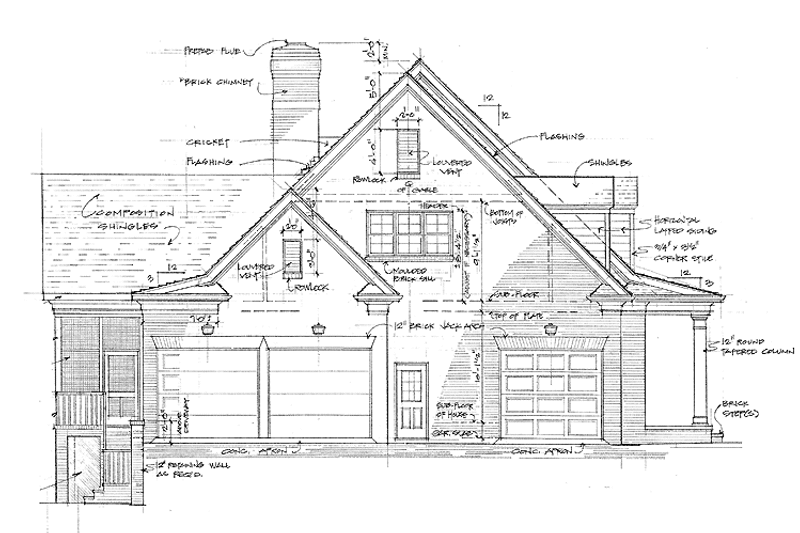

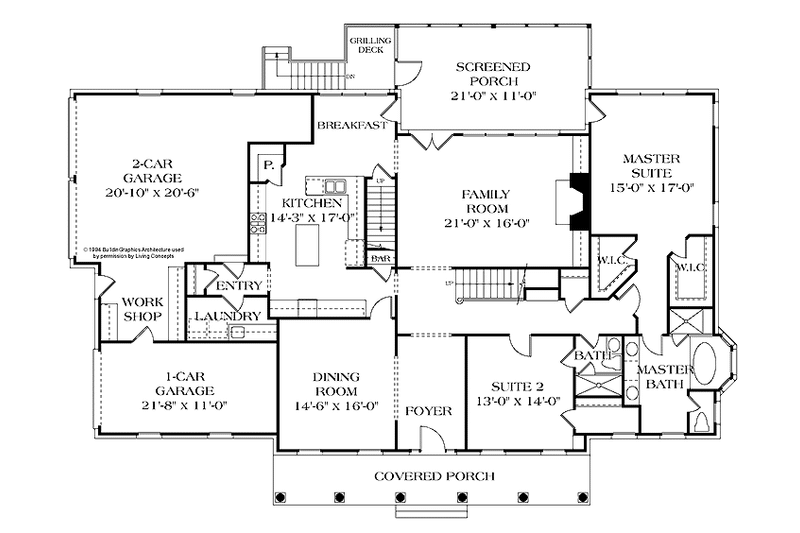

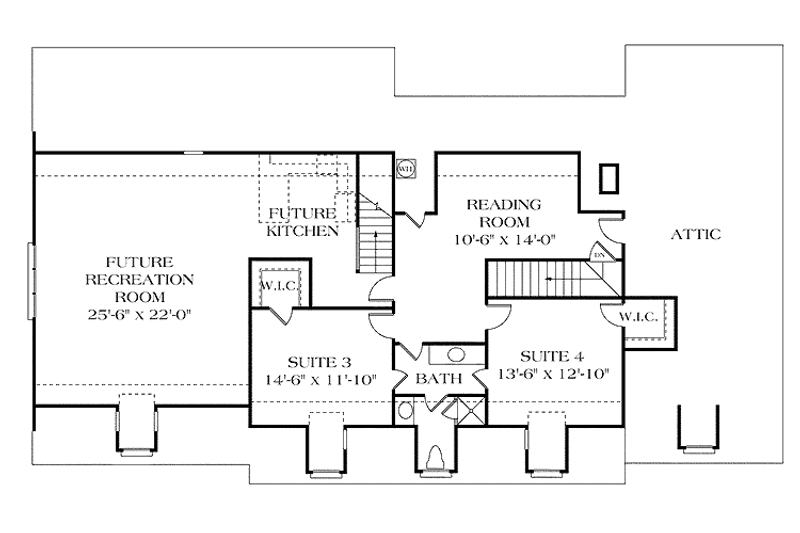

Six exterior pillars along the front porch, five dormers, tall windows, and a symmetrical, brick facade combine to produce an elongated appearance to this western/ranch design. The foyer opens immediately to the formal dining room on the left, and the main hallway leading to the family room straight ahead. The kitchen with breakfast area, pantry, and L-shaped island, and alternate stairway is to the left, accessible from the hall and the dining room. Both the breakfast nook and family room provide access to the screened porch. Separate single and double garages sit at the left of the plan. A family bedroom and the master suite are at the right wing. The upper floor plan provides for an attic, two more family bedrooms, a separate reading room, and future kitchen and recreation room.
182 sq/ft width 13' x depth 14'
171 sq/ft width 14' 6" x depth 11' 10"
173 sq/ft width 13' 6" x depth 12' 10"
232 sq/ft width 14' 6" x depth 16'
336 sq/ft width 21' x depth 16'
561 sq/ft width 25' 6" x depth 22'
427 sq/ft width 20' 10" x depth 20' 6"
238 sq/ft width 21' 8" x depth 11'
242 sq/ft width 14' 3" x depth 17'
255 sq/ft width 15' x depth 17'
Porch - Screened:
231 sq/ft width 21' x depth 11'
