PLAN 54-202
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 65' 7"
Height : 32'
Width : 68' 2"
Area

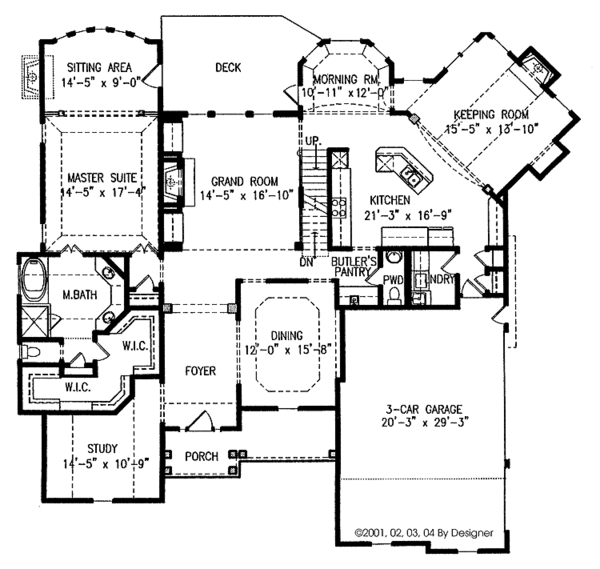

First Floor: 2523 sq/ft height 9'

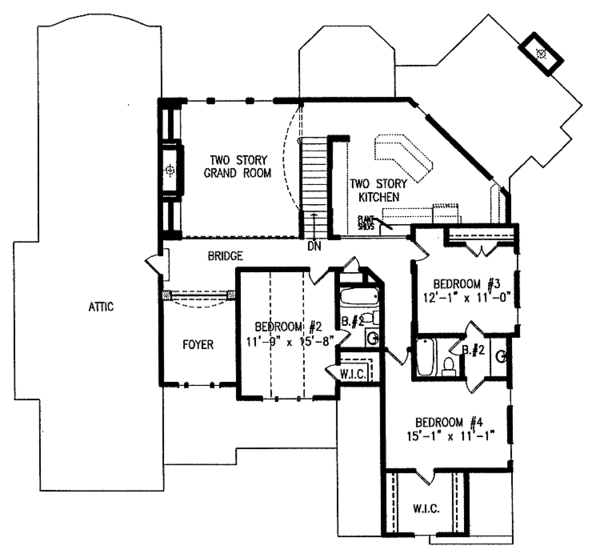

Second Floor: 870 sq/ft
Roof
Primary Pitch : 9:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Loft
Main Floor Laundry
Master Sitting Area
Open Floor Plan
Storage Area
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Covered Front Porch
Deck
Rooms
Bedroom 2:
184 sq/ft width 11' 9" x depth 15' 8"
Bedroom 3:
132 sq/ft width 12' 1" x depth 11'
Bedroom 4:
167 sq/ft width 15' 1" x depth 11' 1"
Breakfast Room:
131 sq/ft width 10' 11" x depth 12'
Dining Room:
188 sq/ft width 12' x depth 15' 8"
Garage:
592 sq/ft width 20' 3" x depth 29' 3"
Grand Room:
242 sq/ft width 14' 5" x depth 16' 10"
Keeping Room:
213 sq/ft width 15' 5" x depth 13' 10"
Kitchen:
355 sq/ft width 21' 3" x depth 16' 9"
Laundry Room:
40 sq/ft width 5' 9" x depth 7'
Master Bedroom:
249 sq/ft width 14' 5" x depth 17' 4"
Study:
154 sq/ft width 14' 5" x depth 10' 9"
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1695.75
$2588.25
$2669.00
Foundation
$0.00
$297.50
$297.50
Framing
$0.00
$297.50
Additional Options
$212.50
$59.50
$140.25
$335.75
$33.15
$140.25
$46.75
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
