PLAN 17-3349
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Full Specs & Features
Dimension
Depth : 59'
Height : 23' 10"
Width : 79'
Height : 23' 10"
Width : 79'
Area
Basement Living: 1744 sq/ft height 8'
Bonus: 402 sq/ft height 8'
First Floor: 1655 sq/ft height 9'
Garage: 1223 sq/ft height 9'
Bonus: 402 sq/ft height 8'
First Floor: 1655 sq/ft height 9'
Garage: 1223 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Unfinished Future Space
Great Room Living Room
Hobby Rec Room Game Room
Unfinished Future Space
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Covered Front Porch
Covered Rear Porch

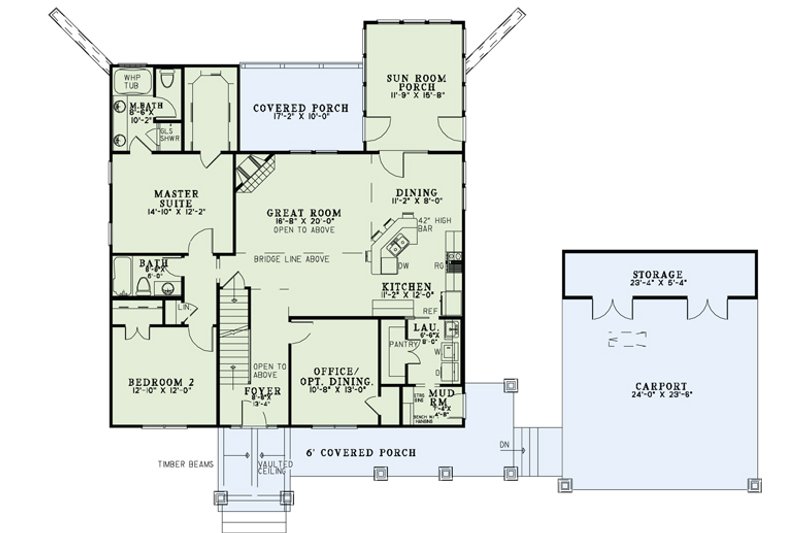

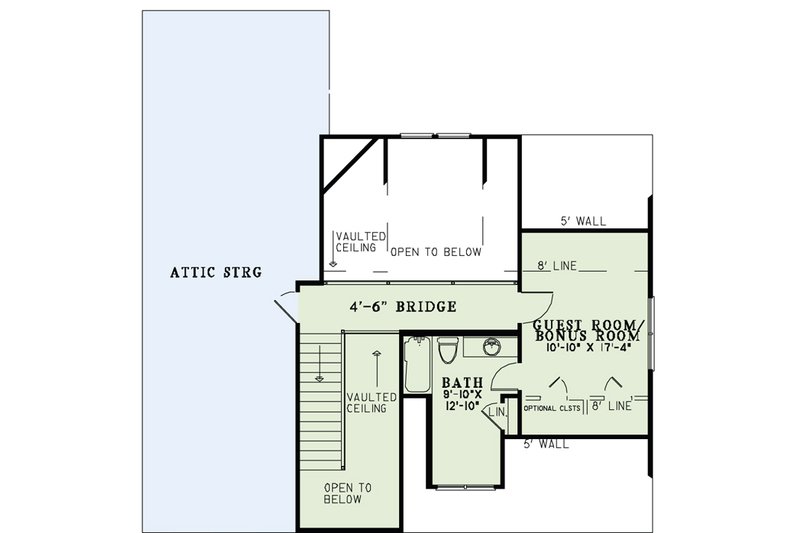

Rooms
Bathroom 3:
198 sq/ft width 14' 6" x depth 13' 8"
Bathroom 4:
126 sq/ft width 9' 10" x depth 12' 10"
Bedroom 2:
144 sq/ft width 12' x depth 12'
Carport:
564 sq/ft width 24' x depth 23' 6"
Covered Porch:
171 sq/ft width 17' 2" x depth 10'
Dining Room:
89 sq/ft width 11' 2" x depth 8'
Game Room:
187 sq/ft width 10' 10" x depth 17' 4"
Great Room:
333 sq/ft width 16' 8" x depth 20'
Guest Bedroom:
187 sq/ft width 10' 10" x depth 17' 4"
Kitchen:
134 sq/ft width 11' 2" x depth 12'
Master Bathroom:
86 sq/ft width 8' 6" x depth 10' 2"
Master Suite:
180 sq/ft width 14' 10" x depth 12' 2"
Mechanical/Equipment Room:
116 sq/ft width 12' 6" x depth 9' 4"
Office:
138 sq/ft width 10' 8" x depth 13'
Storage:
151 sq/ft width 20' 2" x depth 7' 6"
Sun Room:
184 sq/ft width 11' 9" x depth 15' 8"
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
- Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
Questions? Call 1-888-447-1946
Plan Set
| PDF Set : $1650.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy Set : $1750.00 |
5 printed plan sets mailed to you. |
| 5 Copy and PDF Set : $2000.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
Foundation
| Basement: $299.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Daylight Basement: $299.00 |
Ideal for sloping lot, lower level of home partially underground. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
| Wood 2x6: $299.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse : $199.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $75.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
