PLAN 17-2497

Key Specs

3415
sq ft

4
Beds

4.5
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Floor Plans

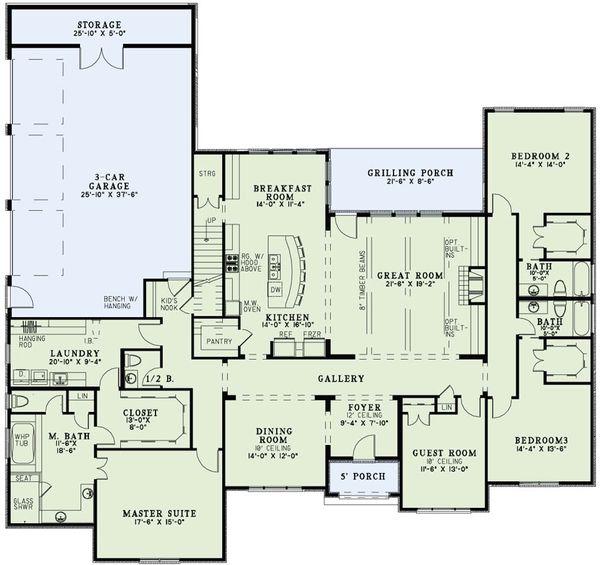

Floor Plan - Main Floor Plan

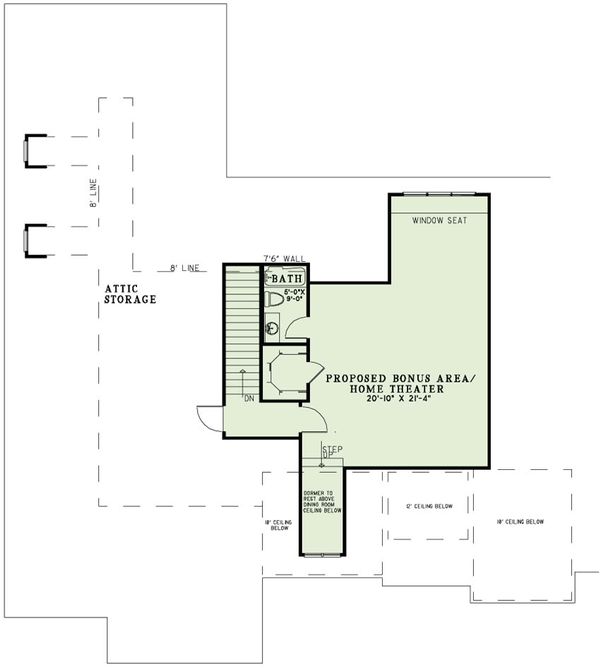

Floor Plan - Upper Floor Plan

Full Specs & Features

Dimension

Depth : 77' 2"
Height : 30' 5"
Width : 81' 4"

Area

Bonus: 747 sq/ft
First Floor: 3415 sq/ft
Garage: 1110 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details :
Main Ceiling : 9'

Roof

Primary Pitch : 10:12
Roof Framing : Stick
Roof Load : 45
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stone Veneer
Framing : 2x4
Insulation : R-13

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Main Floor Laundry
Mud Room

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Rooms

Bedroom 2:

width 14' 4" x depth 14'

Bedroom 3:

width 14' 4" x depth 13' 6"

Bonus:

747 sq/ft width 20' 10" x depth 21' 4"

Breakfast:

width 14' x depth 11' 4"

Dining:

width 14' x depth 12'

Great Room:

width 21' 6" x depth 19' 2"

Grilling Porch:

185 sq/ft width 21' 6" x depth 8' 6"

Guest Suite:

width 11' 8" x depth 13'

Kitchen:

width 14' x depth 16' 10"

Laundry:

width 20' 10" x depth 9' 4"

Master Bath:

width 11' 6" x depth 18' 6"

Master Bedroom:

width 17' 6" x depth 15'

Master Closet:

width 13' x depth 8'

Porch Front:

width 47' x depth 0"

What's Included In This Plan Set

Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.

» See important information before purchasing.

Plan Set

PDF Set : $800.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set : $1636.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace: $0.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab: $0.00	Ideal for level lot, single layer concrete poured directly on grade.
Basement: $250.00	Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement: $250.00	Ideal for sloping lot, lower level of home partially underground.

Additional Options

Additional Construction Sets : $50.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner : $19.00	This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design : $200.00	Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
