Full Specs & Features
Height : 34' 4"
Width : 73'

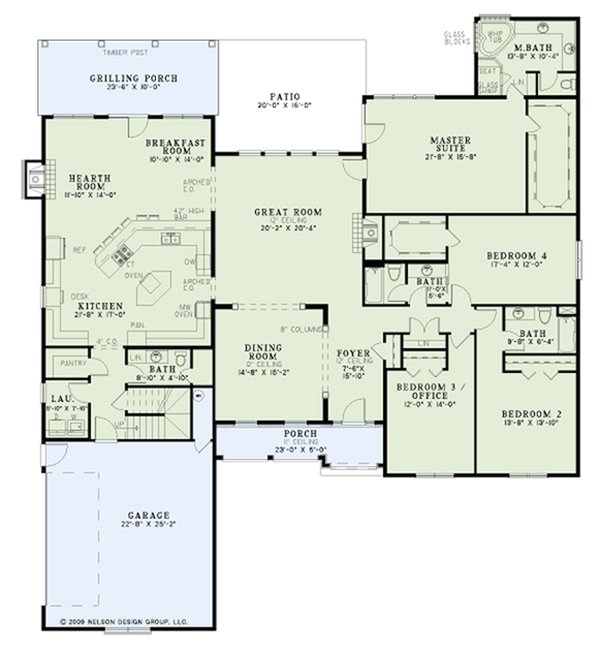

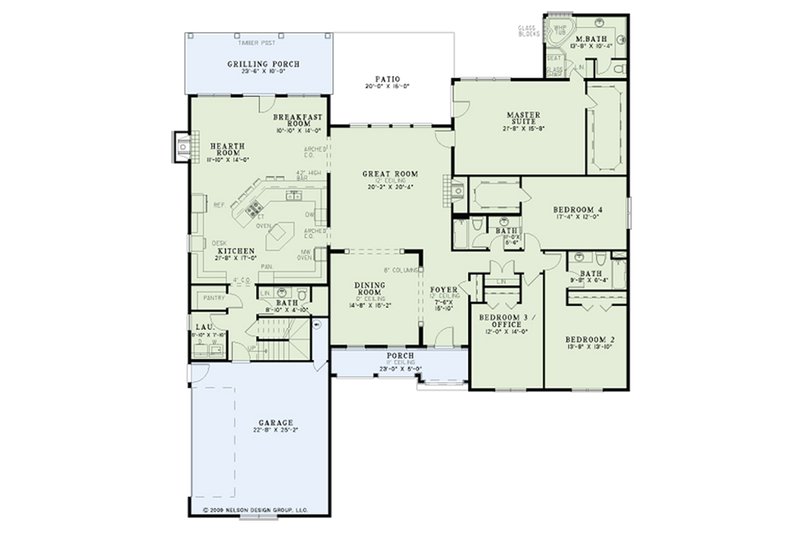

First Floor: 3456 sq/ft height 9'
Garage: 626 sq/ft height 9'
Porch: 371 sq/ft
Roof Framing : Conventional
Roof Type : Shingle
Framing : Wood - 2x4
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Unfinished Future Space
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Bathroom 2:
61 sq/ft width 9' 8" x depth 6' 4"
Bathroom 3:
60 sq/ft width 11' x depth 5' 6"
Bedroom 2:
189 sq/ft width 13' 8" x depth 13' 10"
Bedroom 2 closet:
22 sq/ft width 9' x depth 2' 5"
Bedroom 3:
168 sq/ft width 12' x depth 14'
Bedroom 3 closet:
10 sq/ft width 5' x depth 2'
Bedroom 4:
207 sq/ft width 17' 4" x depth 12'
Bedroom 4 closet:
48 sq/ft width 8' x depth 6'

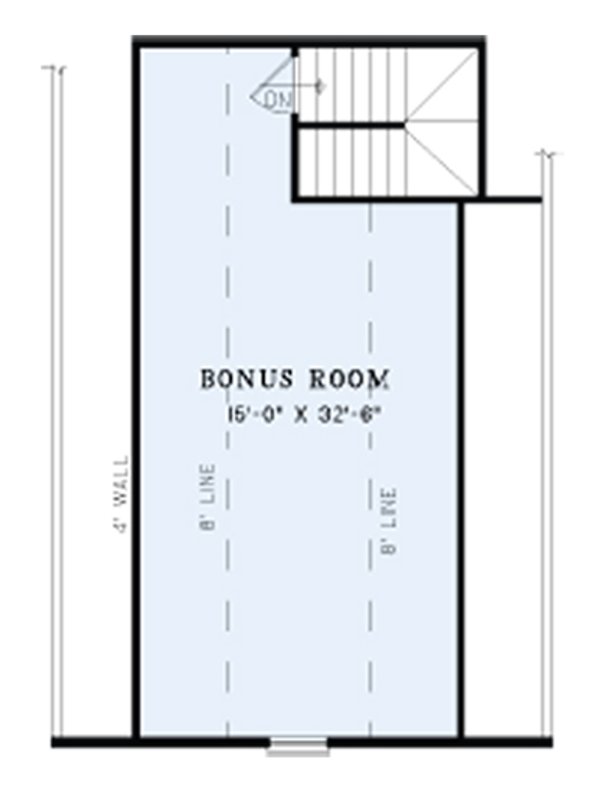

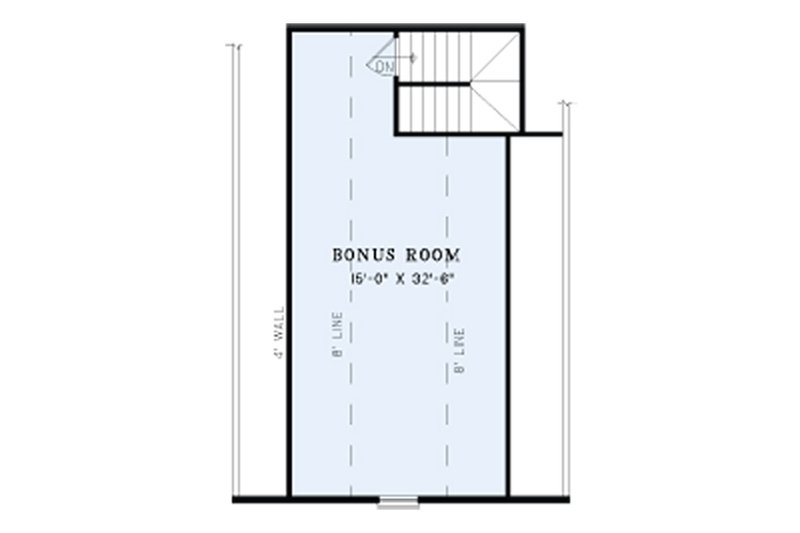

Bonus Room - Finished:
520 sq/ft width 16' x depth 32' 6"
Breakfast Room:
151 sq/ft width 10' 10" x depth 14'
Dining Room:
222 sq/ft width 14' 8" x depth 15' 2"
Foyer:
118 sq/ft width 7' 6" x depth 15' 10"
Garage:
570 sq/ft width 22' 8" x depth 25' 2"
Great Room:
410 sq/ft width 20' 2" x depth 20' 4"
Grilling Porch:
235 sq/ft width 23' 6" x depth 10'
Half Bathroom:
42 sq/ft width 8' 10" x depth 4' 10"
Hearth Room:
165 sq/ft width 11' 10" x depth 14'
Kitchen:
368 sq/ft width 21' 8" x depth 17'
Laundry Room:
53 sq/ft width 6' 10" x depth 7' 10"
Master Bathroom:
141 sq/ft width 13' 8" x depth 10' 4"
Master Suite:
339 sq/ft width 21' 8" x depth 15' 8"
Master WIC:
90 sq/ft width 6' x depth 15'
Pantry:
20 sq/ft width 5' x depth 4'
Patio:
320 sq/ft width 20' x depth 16'
Porch - Front:
115 sq/ft width 23' x depth 5'
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

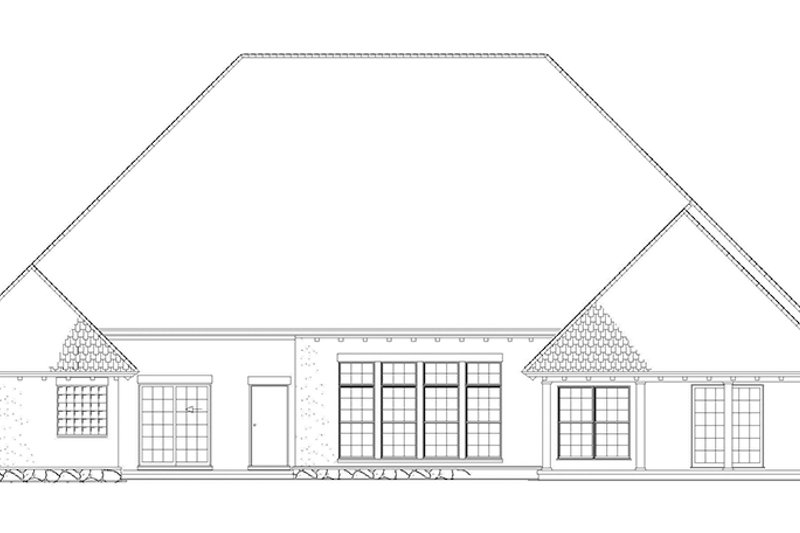

- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
