PLAN 17-2754
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description

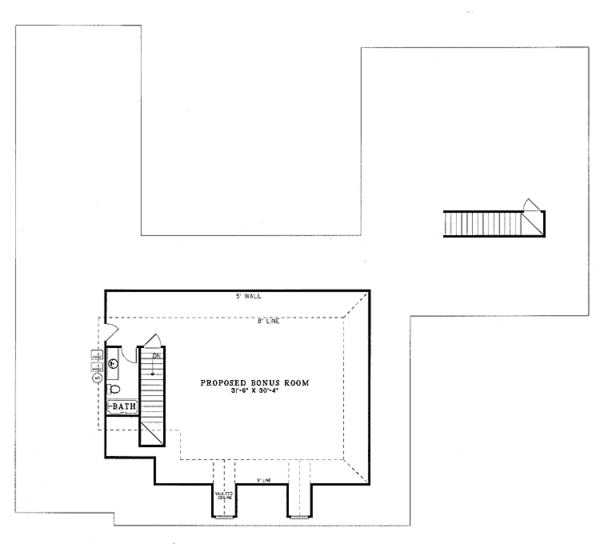

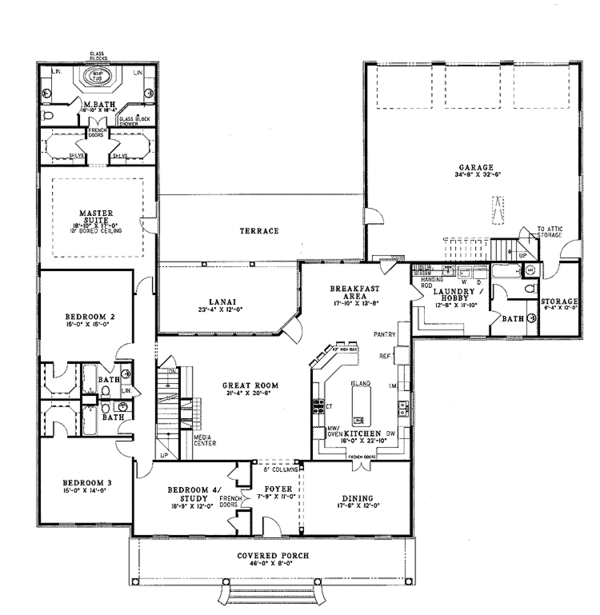

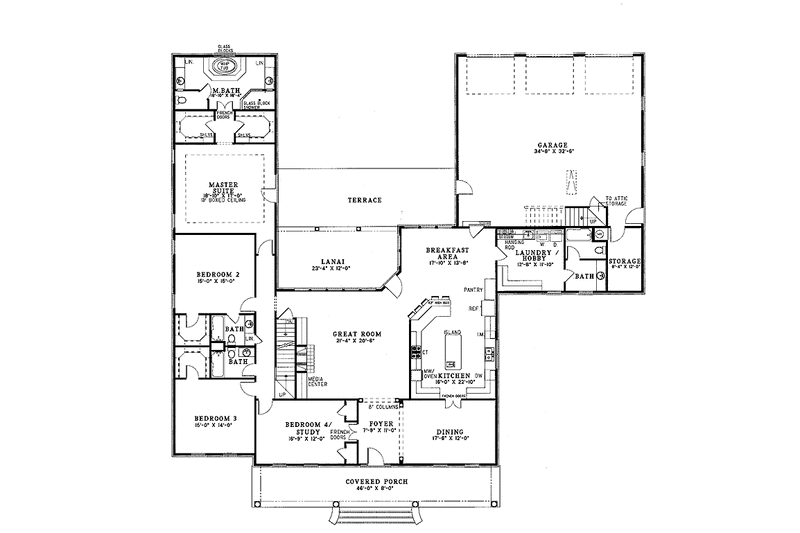

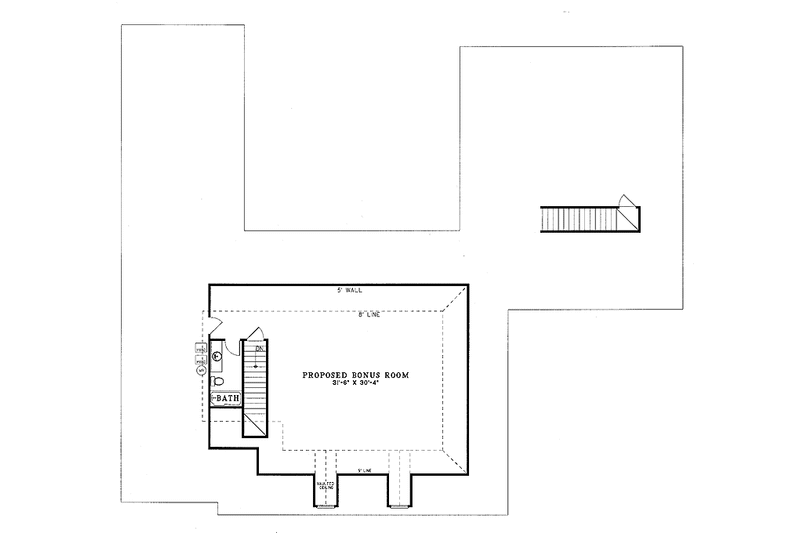

You're sure to enjoy the large great room featuring a built-in media center and fireplace in this home. A spacious kitchen holds a magnificent island and large, eat-at bar that easily serves the adjacent breakfast room. Relax in style on the spacious lanai and connecting terrace. The master suite accommodates a private terrace entrance, and raised whirlpool tub backed by sleek glass blocks. Upstairs, a mammoth bonus area with a full bath is capable of handling a variety of household activities.
Full Specs & Features
Dimension
Depth : 86' 4"
Height : 28' 3"
Width : 89'
Height : 28' 3"
Width : 89'
Area
Bonus: 1371 sq/ft
First Floor: 3474 sq/ft height 9'
Garage: 1127 sq/ft
Porch: 244 sq/ft
First Floor: 3474 sq/ft height 9'
Garage: 1127 sq/ft
Porch: 244 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 9:12
Roof Framing : Conventional
Roof Type : Shingle
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Bedroom Features
Fireplace
Formal Dining Room
Formal Dining Room
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Great Room Living Room
Main Floor Laundry
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
225 sq/ft width 15' x depth 15'
Bedroom 3:
224 sq/ft width 16' x depth 14'
Bonus Room - Finished:
955 sq/ft width 31' 6" x depth 30' 4"
Breakfast Room:
243 sq/ft width 17' 10" x depth 13' 8"
Dining Room:
210 sq/ft width 17' 6" x depth 12'
Foyer:
85 sq/ft width 7' 9" x depth 11'
Garage:
1126 sq/ft width 34' 8" x depth 32' 6"
Gathering Room:
437 sq/ft width 21' 4" x depth 20' 6"
Kitchen:
365 sq/ft width 16' x depth 22' 10"
Laundry Room:
149 sq/ft width 12' 8" x depth 11' 10"
Master Bathroom:
307 sq/ft width 18' 10" x depth 16' 4"
Master Bedroom:
320 sq/ft width 18' 10" x depth 17'
Storage:
75 sq/ft width 6' 4" x depth 12'
Study:
201 sq/ft width 16' 9" x depth 12'
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
- Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
Questions? Call 1-888-447-1946
Plan Set
| PDF Set : $1200.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy Set : $1300.00 |
5 printed plan sets mailed to you. |
| 5 Copy and PDF Set : $1550.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set : $2400.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
| Basement: $299.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Daylight Basement: $299.00 |
Ideal for sloping lot, lower level of home partially underground. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
| Wood 2x6: $299.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse : $199.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $75.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $200.00 |
