PLAN 928-210

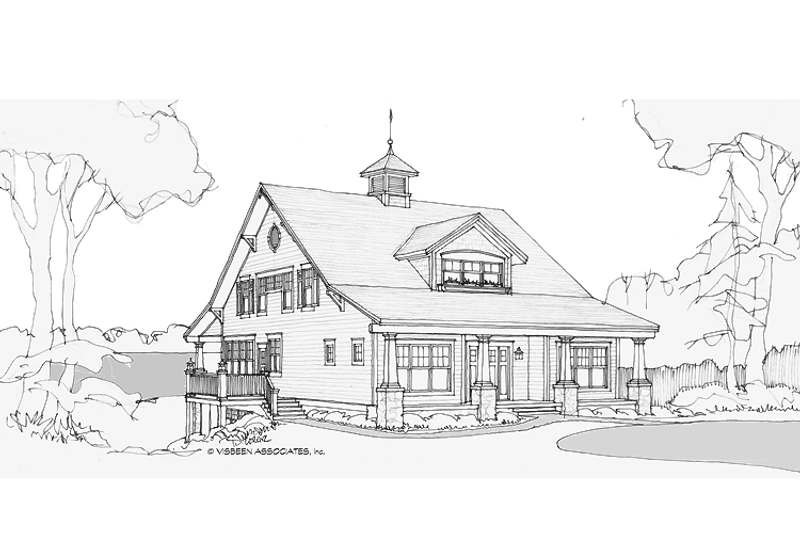

Home Plan - Craftsman Exterior - Front Elevation Plan #928-210
Home Plan - Craftsman Exterior - Front Elevation Plan #928-210

Key Specs


3480
sq ft

6
Beds

3
Baths

2
Floors

0
Garages

Select Plan Set Options

What's included?
Subtotal
NOW $1196.00
You save $299.00
(20% savings)
Sale ends soon!
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
Now Just $17.99 for a Limited Time
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 928-210

Key Specs


3480
sq ft

6
Beds

3
Baths

2
Floors

0
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


Recalling both Arts & Crafts bungalows and Southern coastal cottages, this six-bedroom, four-bath Visbeen Associates home is the perfect design for a vacation house or lakeside living, with two stories of windows allowing you to take complete advantage of a view. Other highlights include a full covered porch at the entrance and an easygoing floor plan that puts the island kitchen, dining room, family room, and sitting room as well as two bedrooms (including the master suite with a walk-in closet) on the main level, four additional bedrooms and a loft above, and a family room, game room, additional kitchen, and dining space on the optional lower level.

Full Specs & Features


Dimension
Depth : 36'
Height : 31'
Width : 54'
Area

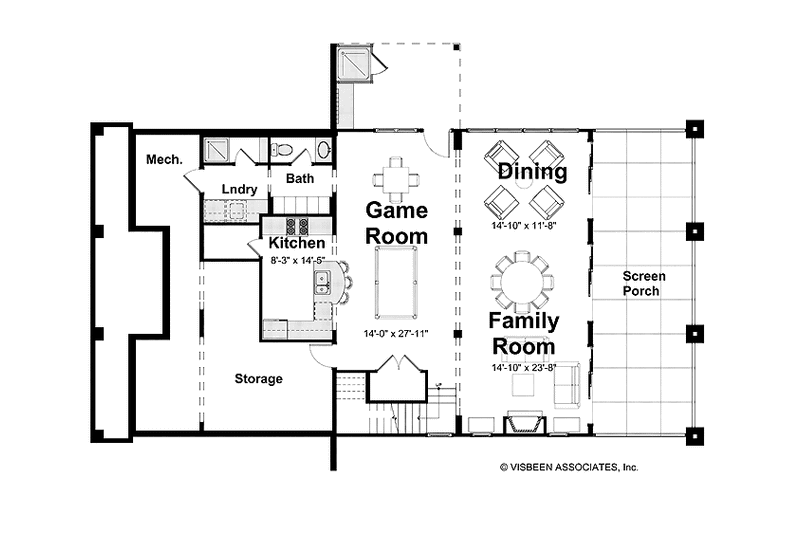

Basement Unfinished: 1334 sq/ft height 9'

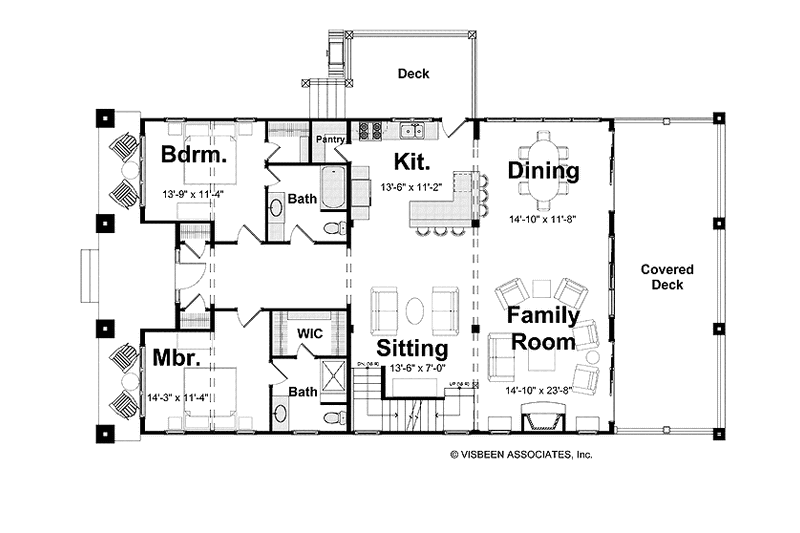

First Floor: 1896 sq/ft height 9'

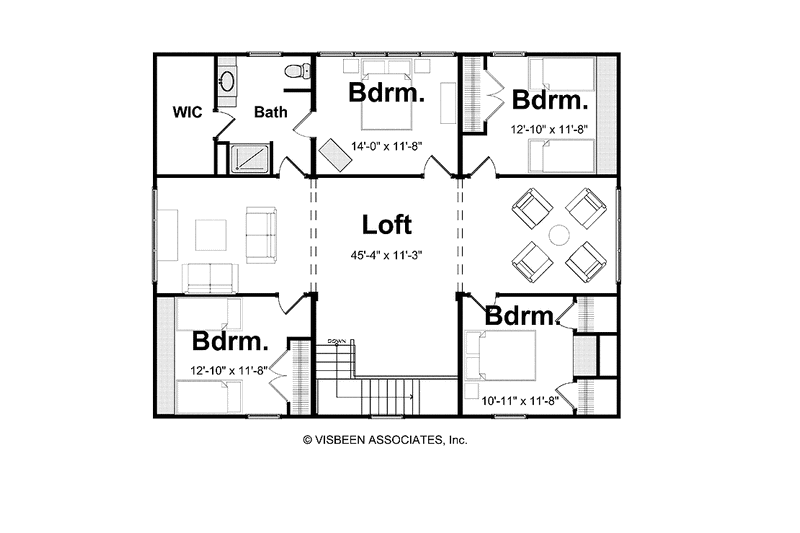

Second Floor: 1584 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Master Sitting Area
Media Room
Mud Room
Open Floor Plan
Sunroom
Vaulted / Cathedral Ceilings
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Screened Porch
Rooms

Bedroom 2:

147 sq/ft width 13' x depth 11' 4"

Bedroom 3:

163 sq/ft width 14' x depth 11' 8"

Bedroom 4:

127 sq/ft width 10' 11" x depth 11' 8"

Bedroom 5:

149 sq/ft width 12' 10" x depth 11' 8"

Bedroom 6:

149 sq/ft width 12' 10" x depth 11' 8"

Dining Room:

173 sq/ft width 14' 10" x depth 11' 8"

Dining Room:

173 sq/ft width 14' 10" x depth 11' 8"

Family Room:

341 sq/ft width 14' 10" x depth 23'

Family Room:

351 sq/ft width 14' 10" x depth 23' 8"

Game Room:

390 sq/ft width 14' x depth 27' 11"

Kitchen:

119 sq/ft width 8' 3" x depth 14' 6"

Kitchen:

150 sq/ft width 13' 6" x depth 11' 2"

Loft:

509 sq/ft width 45' 4" x depth 11' 3"

Master Bedroom:

161 sq/ft width 14' 3" x depth 11' 4"

Sitting Area:

94 sq/ft width 13' 6" x depth 7'

What's Included In This Plan Set


Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.
Questions? Call 1-888-447-1946
Plan Set
PDF Set :
$1196.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$2796.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Right-Reading Reverse :
$156.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design :
$80.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$160.00
Receive an overlay sheet with suggested placement of lighting fixtures.
