PLAN 17-2644

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

The first floor of this attractive home consists of a formal dining room to the left of the foyer, a cozy study with built-in bookshelves to the right, and a spacious great room with a gas fireplace and French-door access to the rear covered deck directly ahead. The U-shaped kitchen features a work island, built-in desk, snack-bar peninsula and adjacent hearth room. The lavish master suite includes two walk-in closets, a corner shower, whirlpool tub and rear-deck access. The lower level offers two large bedrooms, two full baths, a huge game room with outdoor access, and a wet bar. Please specify basement, crawlspace, slab or block foundation when ordering.

Floor Plans

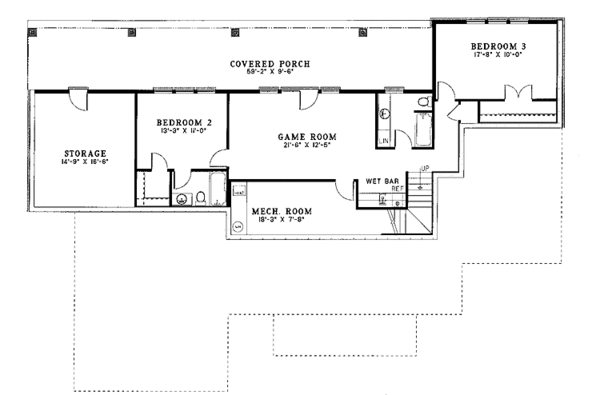

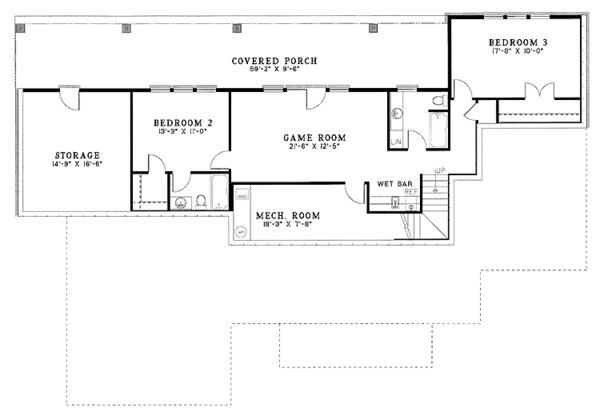

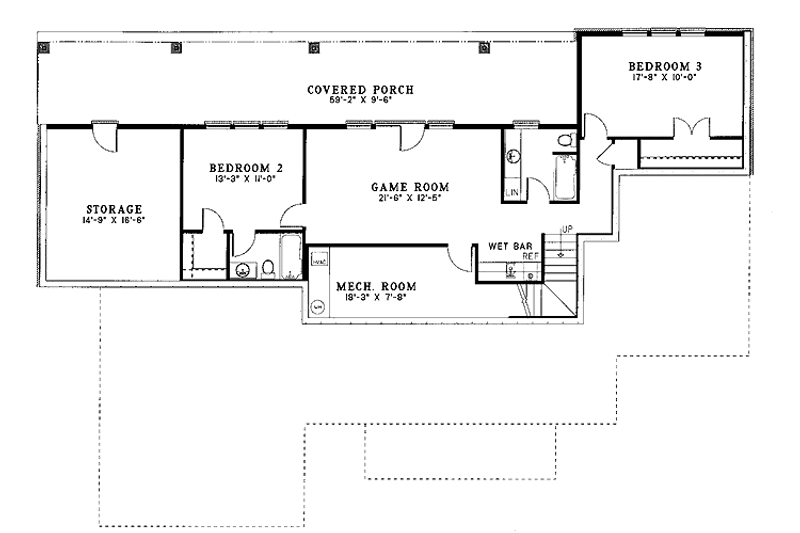

Floor Plan - Lower Floor Plan

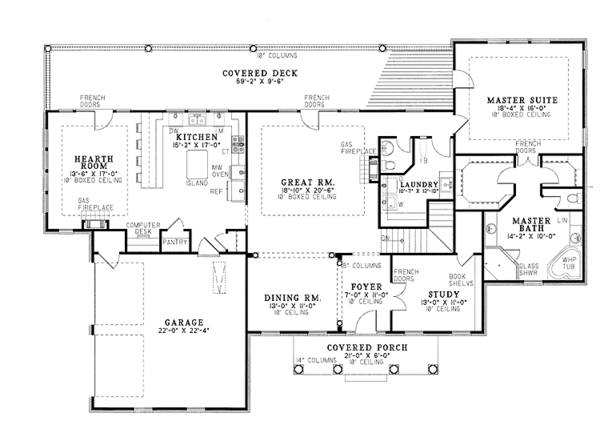

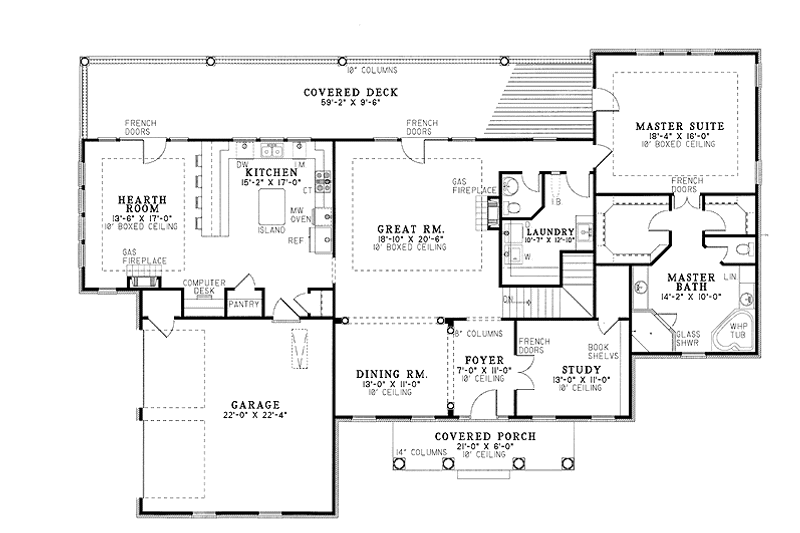

Floor Plan - Main Floor Plan

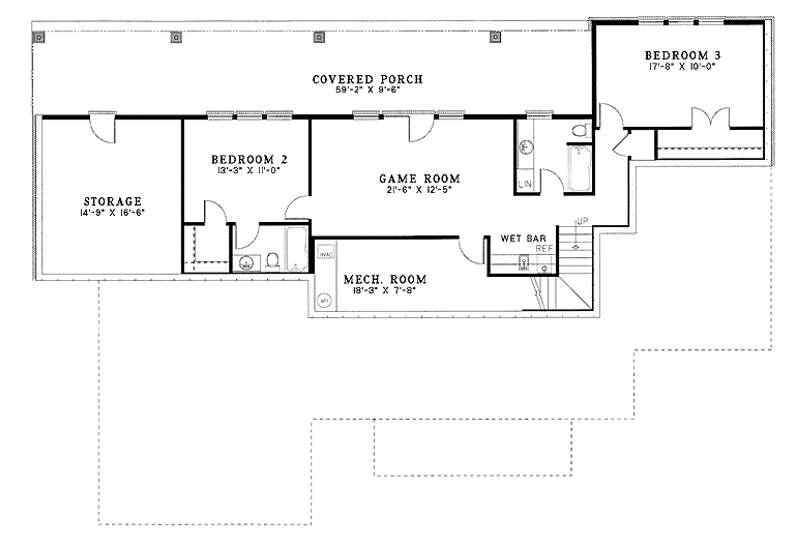

Floor Plan - Upper Floor Plan

Full Specs & Features

Depth : 53' 8"
Width : 78' 2"
Basement Living: 1250 sq/ft
First Floor: 2235 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 8:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Additional Room Features
Den Office Study Computer
Great Room Living Room
Media Room
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Rear Porch

Bedroom 2:

143 sq/ft width 11' x depth 13'

Bedroom 3:

176 sq/ft width 10' x depth 17' 8"

Dining Room:

143 sq/ft width 11' x depth 13'


77 sq/ft width 11' x depth 7'

Game Room:

266 sq/ft width 12' 5" x depth 21' 6"


491 sq/ft width 22' 4" x depth 22'

Gathering Room:

386 sq/ft width 20' 6" x depth 18' 10"


257 sq/ft width 17' x depth 15' 2"

Master Bathroom:

141 sq/ft width 10' x depth 14' 2"

Master Bedroom:

293 sq/ft width 16' x depth 18' 4"

Porch - Front:

126 sq/ft width 6' x depth 21'

Porch - Left:

562 sq/ft width 9' 6" x depth 59' 2"

Porch - Rear:

562 sq/ft width 9' 6" x depth 59' 2"


243 sq/ft width 16' 6" x depth 14' 9"


143 sq/ft width 11' x depth 13'

Wash Room:

135 sq/ft width 12' 10" x depth 10' 7"

What's Included In This Plan Set

See a sample plan set
  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
» See important information before purchasing.

Plan Set

PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.


Wood 2x4:
Wood 2x4
Wood 2x6:
Wood 2x6

Additional Options

Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Roof Framing Detail :
Get a detailed plan for your roof framing.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Browse Similar Plans

Recently Viewed Floor Plans
