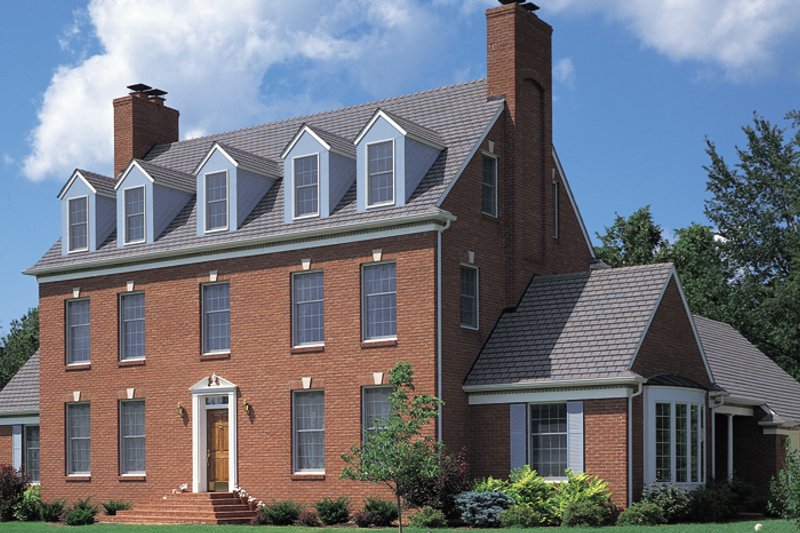

Three floors of livability are available in this stately brick Federal design. From the two chimney stacks to the five dormer windows, the appeal is pure Americana. First-floor features include fireplaces in the gathering room, the breakfast room and the study, as well as a built-in barbecue in the gourmet kitchen. A handy mud room with a powder room connects the kitchen to the laundry and to the garage beyond. The second floor is dominated by a sumptuous master suite and two family bedrooms that share a full bath. A third floor holds two additional bedrooms that might serve well as guest rooms or as a studio or study space. A full bath with a double vanity finishes this floor.
Full Specs & Features
Height : 35'
Width : 64'
Garage: 514 sq/ft
Second Floor: 1075 sq/ft
Third Floor: 746 sq/ft
Roof Framing : Combination Truss/Conventional
Roof Type : Shingle
Framing : Wood - 2x4
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Kitchenette Wet Bar
Great Room Living Room
Loft
Main Floor Laundry
Courtyard
Covered Front Porch
3rd BR Closet:
13 sq/ft width 2' 1" x depth 6' 6"
Basement Foundation:
1120 sq/ft width 40' x depth 28'
Bathroom 2:
71 sq/ft width 10' 4" x depth 6' 11"
Bedroom 2:
193 sq/ft width 14' 4" x depth 13' 6"
Bedroom 2 Closet:
13 sq/ft width 2' 1" x depth 6' 6"
Bedroom 3:
139 sq/ft width 13' 4" x depth 10' 6"
Bedroom 3 Closet:
13 sq/ft width 2' 1" x depth 6' 6"
Bedroom 4:
165 sq/ft width 11' 10" x depth 14'
Bedroom 4 Closet:
11 sq/ft width 2' 1" x depth 5' 8"
Bedroom 5:
165 sq/ft width 11' 10" x depth 14'
Breakfast Room:
172 sq/ft width 10' 4" x depth 16' 8"
Crawlspace Foundation:
216 sq/ft width 12' x depth 18'
Dining Room:
188 sq/ft width 14' 4" x depth 13' 2"
Foyer:
72 sq/ft width 9' 4" x depth 7' 9"
Garage:
513 sq/ft width 22' 8" x depth 22' 8"
Gathering Room:
267 sq/ft width 20' 4" x depth 13' 2"
Hall:
158 sq/ft width 9' 4" x depth 17'
Hall Bathroom:
61 sq/ft width 10' 4" x depth 5' 11"
Hall Closet:
10 sq/ft width 2' 1" x depth 5' 1"
Kitchen:
215 sq/ft width 16' 4" x depth 13' 2"
Laundry Room:
42 sq/ft width 7' x depth 6'
Master Bathroom:
108 sq/ft width 12' x depth 9'
Master Bedroom:
250 sq/ft width 14' 4" x depth 17' 6"
Master Closet:
18 sq/ft width 2' 1" x depth 9'
Parlor:
188 sq/ft width 14' 4" x depth 13' 2"
Porch - Front:
98 sq/ft width 14' x depth 7'
Porch - Right:
93 sq/ft width 17' x depth 5' 6"
Powder Room:
26 sq/ft width 5' 8" x depth 4' 8"
Study:
172 sq/ft width 10' 4" x depth 16' 8"
Wash Room:
42 sq/ft width 11' 4" x depth 3' 9"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

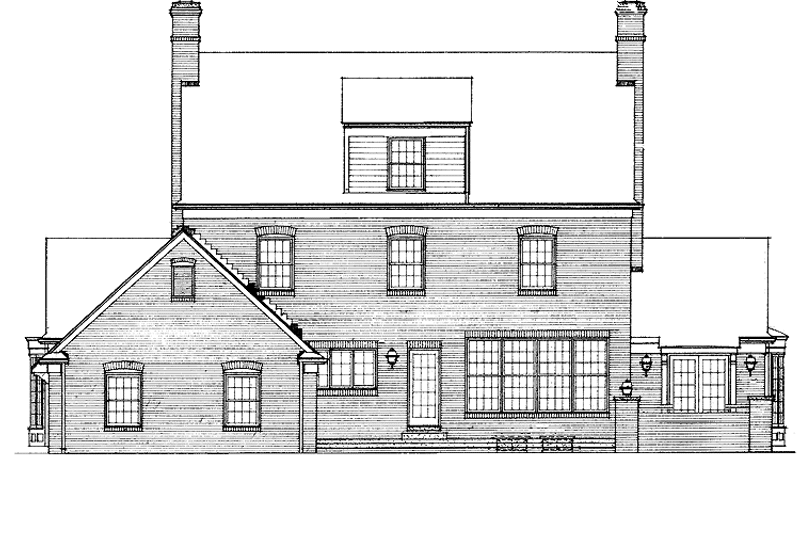

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

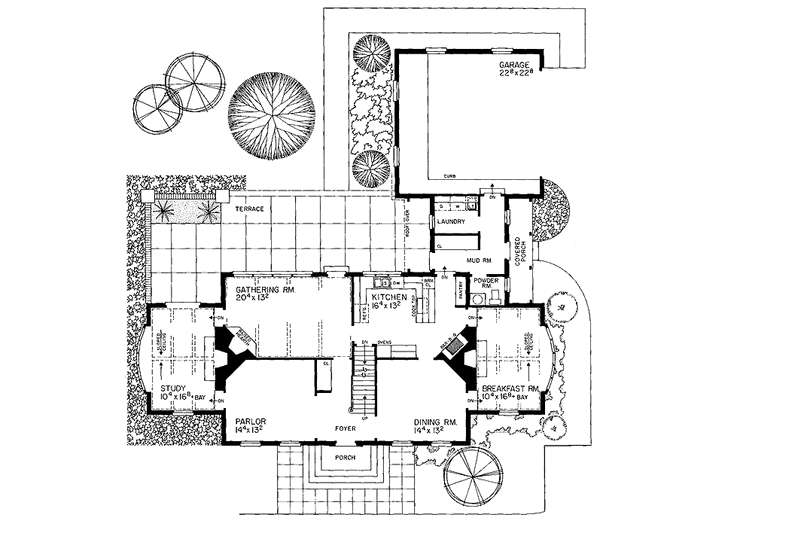

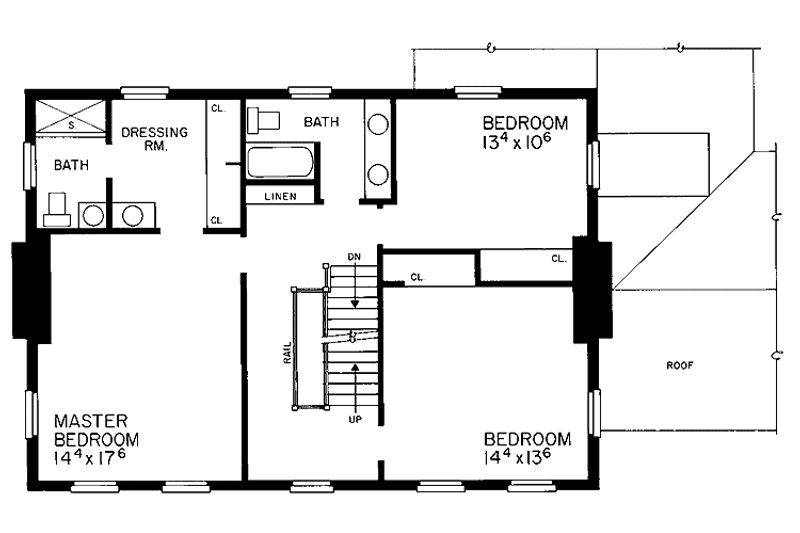

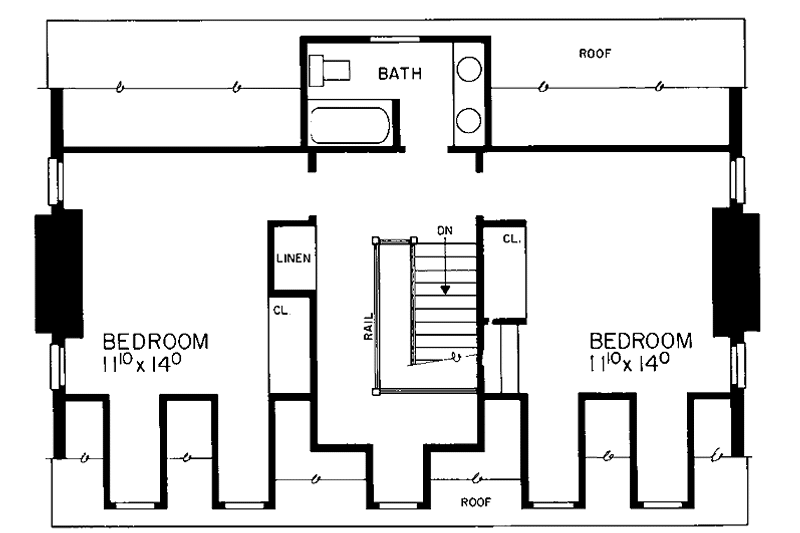

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
