PLAN 927-406
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description

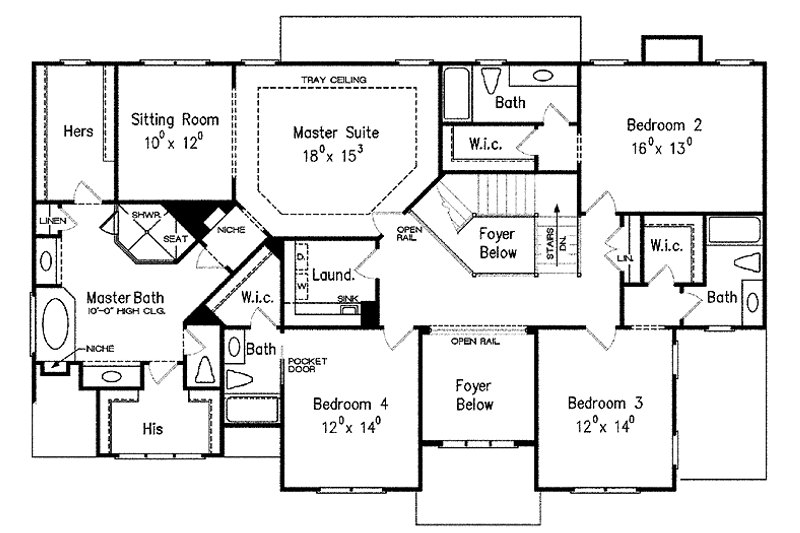

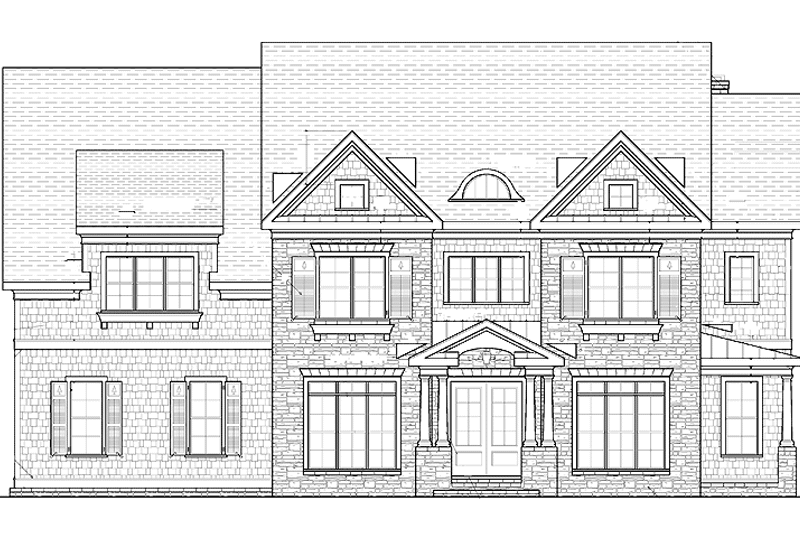

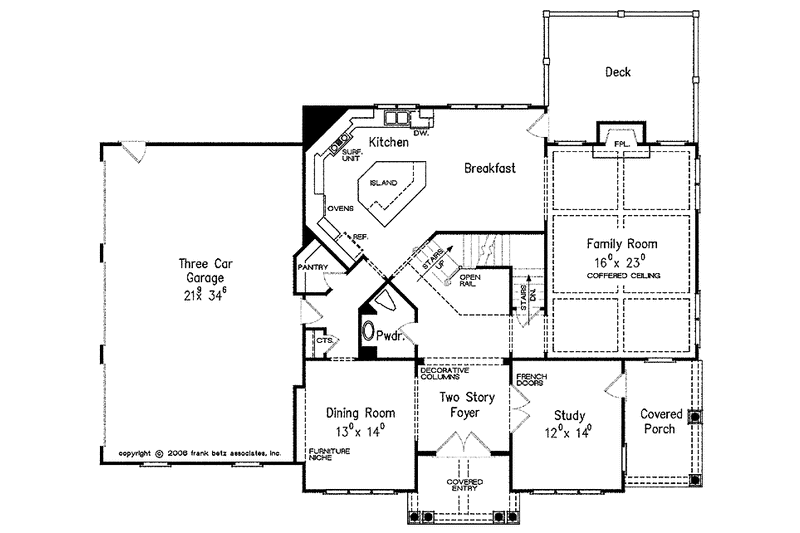

Stone and shingles add a rustic touch to this traditional exterior. The interior, however, offers every modern convenience. Your family will love the spacious kitchen, which offers an extra-large, angled island and snack bar that's perfect for casual meals. On one side of the kitchen, the sunny breakfast nook opens to the deck. On the other, a walk-in pantry sits on the way to the dining room. A decorative coffered ceiling tops the large family room nearby. Upstairs, relax in the super-deluxe master bathroom (complete with two huge closets and a big shower) or in the cozy private sitting room. The laundry room sits nearby.
Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.
Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.
Full Specs & Features
Dimension
Depth : 45'
Height : 36' 6"
Width : 65'
Height : 36' 6"
Width : 65'
Area
Basement Unfinished: 1599 sq/ft
First Floor: 1599 sq/ft height 9'
Garage: 757 sq/ft
Second Floor: 1987 sq/ft height 9'
First Floor: 1599 sq/ft height 9'
Garage: 757 sq/ft
Second Floor: 1987 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Upstairs Master Bedrooms
Upstairs Master Bedrooms
Additional Room Features
Den Office Study Computer
Master Sitting Area
Master Sitting Area
Garage Features
Side Entry Garage
Rooms
Bedroom 2:
208 sq/ft width 16' x depth 13'
Bedroom 3:
168 sq/ft width 12' x depth 14'
Bedroom 4:
168 sq/ft width 12' x depth 14'
Breakfast:
159 sq/ft width 12' x depth 13' 4"
Dining Room:
182 sq/ft width 13' x depth 14'
Family Room:
368 sq/ft width 16' x depth 23'
Foyer:
100 sq/ft width 10' x depth 10'
Garage:
750 sq/ft width 21' 9" x depth 34' 6"
Kitchen:
238 sq/ft width 14' x depth 17'
Laundry Room:
60 sq/ft width 8' x depth 7' 7"
Master Bathroom:
182 sq/ft width 13' x depth 14'
Master Bedroom:
274 sq/ft width 18' x depth 15' 3"
Master Closet - Hers:
59 sq/ft width 10' 9" x depth 5' 6"
Master Closet - His:
84 sq/ft width 7' x depth 12'
Master Sitting Room:
120 sq/ft width 10' x depth 12'
Porch - Right:
104 sq/ft width 8' x depth 13'
Study:
168 sq/ft width 12' x depth 14'
What's Included In This Plan Set
- Purchasing a CAD set, PDF set, or Reproducible set, gives you an unlimited build license. All other plan sets, allow you to build the home one time.
- All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
- Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
- Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
- The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
- Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
- The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
