PLAN 70-1185

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

Traditional in style, but craftsman in detail, this two-story home will blend easily into any neighborhood. As you enter the foyer, a formal den with double French doors is located on your left while the main living area lies ahead to the back of the home. Here, a large kitchen with center island overlooks the adjacent dining room and great room. This space is naturally lit with the light from the wall of windows while built-in cabinets flank the fireplace. The master suite along with three additional bedrooms are located on the second level with a 5th bedroom, perfect for your mother-in-law is located on the main level to the right of the entry. A three-stall garage completes this home.

Floor Plans

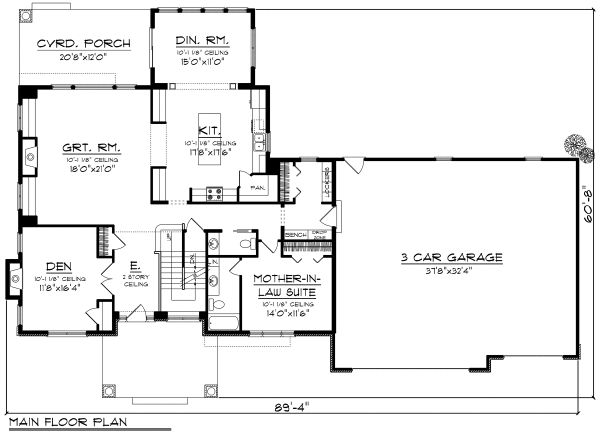

Floor Plan - Main Floor Plan
Craftsman Floor Plan - Main Floor Plan Plan #70-1185

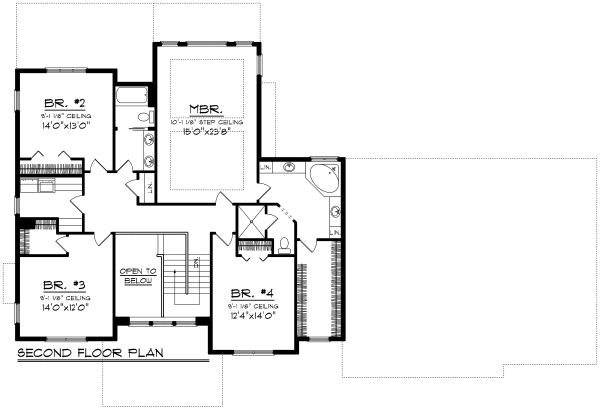

Floor Plan - Upper Floor Plan
Craftsman Floor Plan - Upper Floor Plan Plan #70-1185

Full Specs & Features

Depth : 60' 8"
Height : 33' 3"
Width : 89' 4"
First Floor: 1961 sq/ft height 10' 1"
Garage: 1227 sq/ft
Second Floor: 1699 sq/ft height 9' 1"
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Entry 2-Story,Master Bdrm 10' Step
Lower Ceiling : 9'
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Primary Pitch : 12:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Siding, Shake, Stone
Framing : 2x6
Bedroom Features
Guest Suite
Main Floor Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Mud Room
Unfinished Future Space
Upstairs Laundry
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bath 2:

width 5' x depth 11' 6"

Bedroom 2:

width 14' x depth 13'

Bedroom 2 Closet:

width 9' 5" x depth 2' 1"

Bedroom 3:

width 14' x depth 12'

Bedroom 3 Closet:

width 5' 7" x depth 5' 3"

Bedroom 4:

width 12' 4" x depth 14'

Bedroom 4 Closet:

width 5' 1" x depth 2' 1"

Covered Front Porch:

width 18' x depth 12' 4"

Covered Rear Porch:

width 20' 8" x depth 12'


width 11' 8" x depth 16' 4"

Dining Room:

width 15' x depth 11'


width 7' x depth 9' 9"


1227 sq/ft width 37' 8" x depth 32' 4"

Great Room:

width 18' x depth 21'


width 22' 10" x depth 4' 1"

Hall Bath:

width 6' x depth 12' 9"

Hall Closet 1:

width 2' 1" x depth 4' 7"

Hall Closet 2:

width 2' 1" x depth 6' 3"

In-Law Suite:

width 14' x depth 11' 6"

In-Law Suite Closet:

width 7' 8" x depth 2' 1"


width 17' 8" x depth 17' 6"

Laundry Room:

width 9' 5" x depth 6' 1"

Master Closet:

width 6' 8" x depth 14' 6"

Master Bath:

width 12' 4" x depth 11' 7"

Master Bedroom:

width 15' x depth 23' 8"

Mud Room:

width 5' 9" x depth 6' 7"

Mud Room Entry:

width 7' 6" x depth 5' 7"


width 6' 1" x depth 4' 3"

Powder Room:

width 7' 7" x depth 3' 6"

What's Included In This Plan Set

  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
