PLAN 928-295

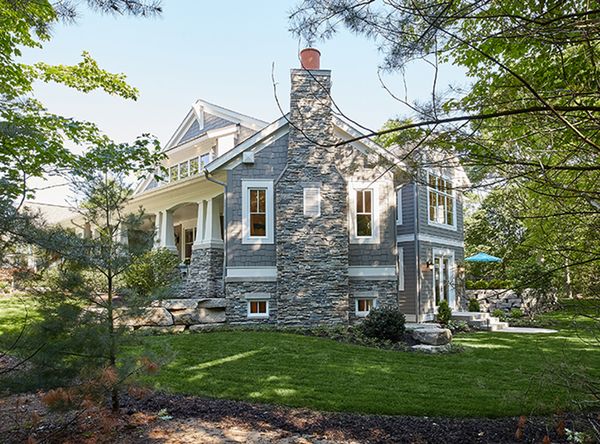

Photographs may show modified designs.

Save
Home  /  Style  /  Craftsman

Key Specs


Plan Sq Ft

3679
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Subtotal
NOW $1345.50
You save $149.50 (10% savings)
Sale ends soon!
Best Price Guaranteed*
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates

Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-888-447-1946
Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 928-295

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description


With the kitchen at the center of the home, this Craftsman-style design from Visbeen Architects presents a remarkably modern layout. The island hosts a variety of activities, with room for four to sit at the connected table, a range so that owners can chat with guests while cooking, and even a veggie-rinsing sink. Radiating from this main space like spokes on a wheel are the sunroom, the fireplace-warmed living room, and the open dining area. The master suite gives owners an ultra-spacious hideaway on this level, complete with a sitting area, curbless shower, and direct access to the laundry room. Upstairs, a spacious guest bedroom shares the level with a full bath and a flexible craft room. The lower level can be finished to hold a variety of entertainment spaces, including a unique boat-shaped wet bar.

Floor Plans

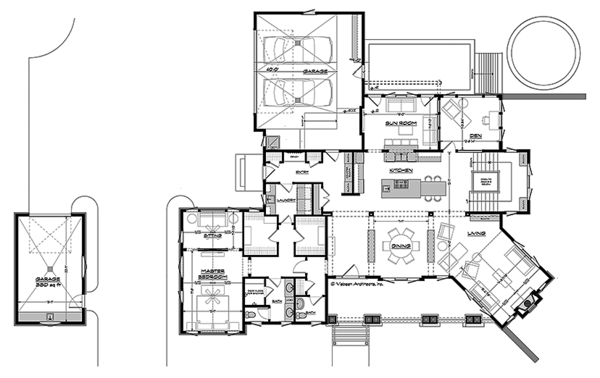

Floor Plan - Main Floor

Reverse
Save

BUILDER Advantage Program

https://www.homeplans.com

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

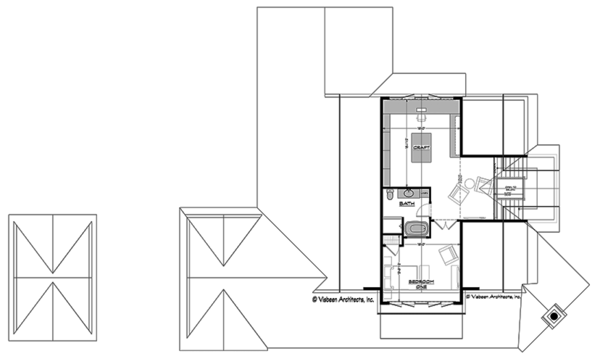

Floor Plan - Upper Floor

Reverse
Save

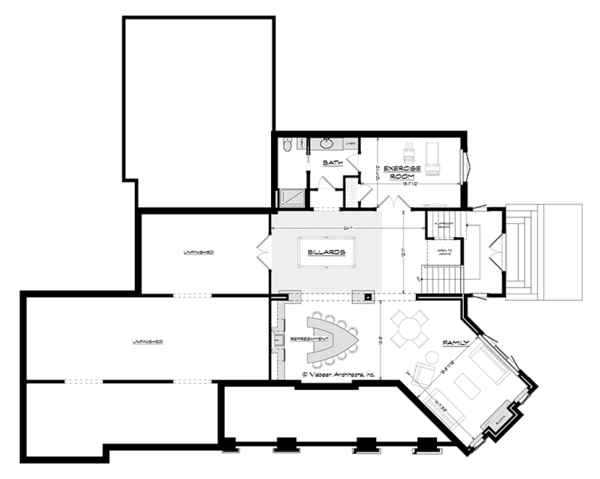

Floor Plan - Lower Floor

Reverse
Save

Floor Plan - Other Floor

Reverse
Save

Full Specs & Features


Dimension

Depth : 70'

Height : 22' 10"

Width : 81'

Area

Basement Unfinished: 2474 sq/ft

First Floor: 2698 sq/ft height 9'

Garage: 705 sq/ft

Second Floor: 981 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Shingle

Secondary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer

Great Room Living Room

Loft

Main Floor Laundry

Mud Room

Open Floor Plan

Vaulted / Cathedral Ceilings

Outdoor Spaces

Balcony

Covered Front Porch

What's Included In This Plan Set


Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in the state of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.
Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1345.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$3145.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Right-Reading Reverse:
$175.50
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$90.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$180.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
