PLAN 927-531
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description

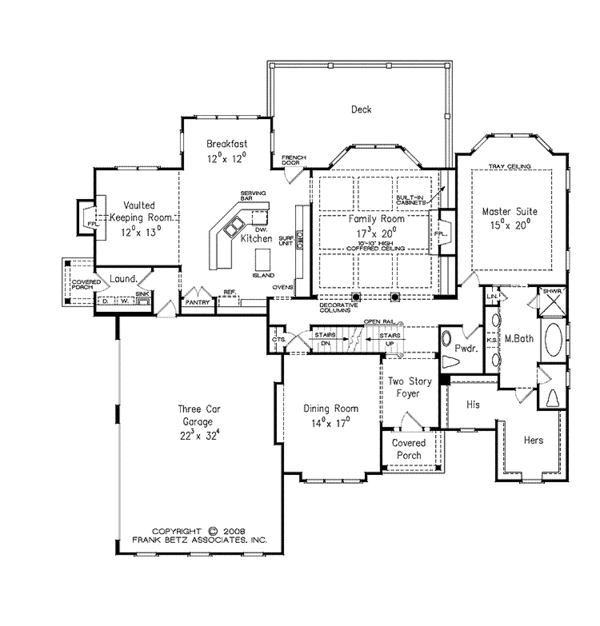

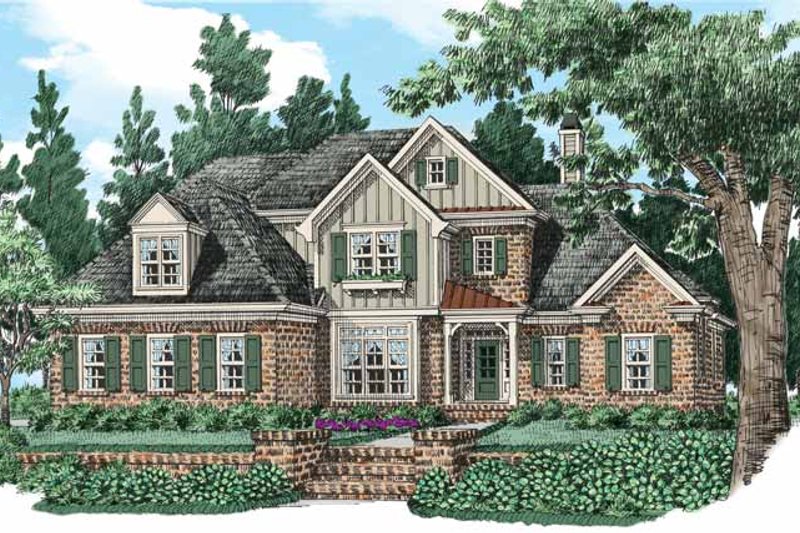

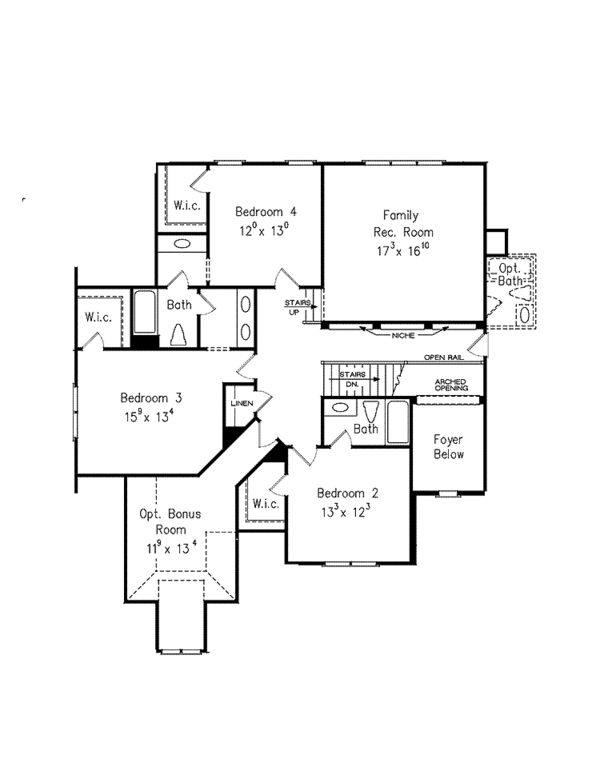

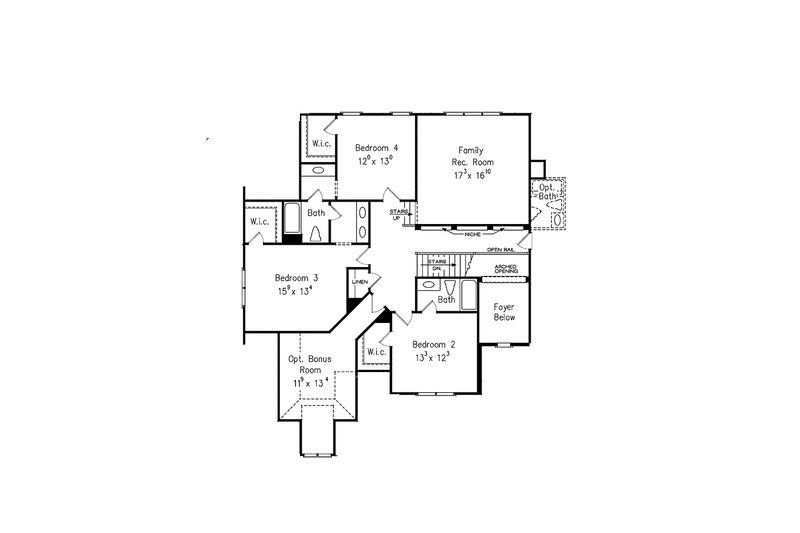

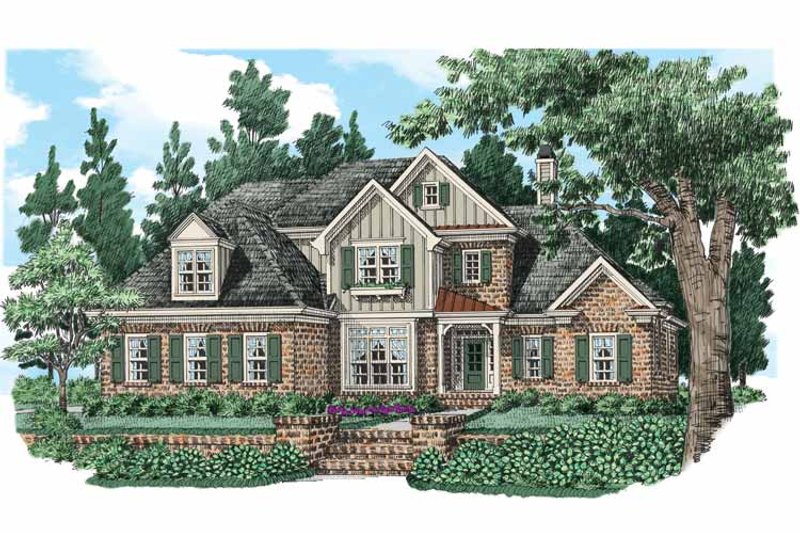

This New American beauty incorporates a variety of flexible spaces for family relaxation, including a fireplace-warmed keeping room that opens to the island kitchen, a large family room with another fireplace and a bay window, and a rec room with an optional bath upstairs. A bonus room up here can become a playroom, study center, or workout space. Each of the three family bedrooms has its own walk-in closet, while downstairs, the master suite boasts two of its own. It also features a tray ceiling, bay window, and a garden tub in the generous bathroom. Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.
Full Specs & Features
Dimension
Depth : 62'
Height : 33'
Width : 67' 4"
Height : 33'
Width : 67' 4"
Area
Basement Unfinished: 2289 sq/ft
Bonus: 221 sq/ft
First Floor: 2289 sq/ft
Garage: 726 sq/ft
Second Floor: 1404 sq/ft
Bonus: 221 sq/ft
First Floor: 2289 sq/ft
Garage: 726 sq/ft
Second Floor: 1404 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Mud Room
Unfinished Future Space
Vaulted / Cathedral Ceilings
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Mud Room
Unfinished Future Space
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Deck
Deck
More
Jack & Jill Bath
Rooms
Bedroom 2:
162 sq/ft width 13' 3" x depth 12' 3"
Bedroom 3:
209 sq/ft width 15' 9" x depth 13' 4"
Bedroom 4:
156 sq/ft width 12' x depth 13'
Bonus:
221 sq/ft width 11' 9" x depth 13' 4"
Bonus Room - Finished:
156 sq/ft width 11' 9" x depth 13' 4"
Breakfast:
144 sq/ft width 12' x depth 12'
Dining Room:
238 sq/ft width 14' x depth 17'
Family Room:
345 sq/ft width 17' 3" x depth 20'
Foyer:
79 sq/ft width 7' 9" x depth 10' 3"
Garage:
719 sq/ft width 22' 3" x depth 32' 4"
Keeping Room:
156 sq/ft width 12' x depth 13'
Kitchen:
261 sq/ft width 18' x depth 14' 6"
Laundry Room:
45 sq/ft width 7' 7" x depth 6'
Master Bathroom:
154 sq/ft width 11' x depth 14'
Master Closet - Hers:
116 sq/ft width 9' 6" x depth 12' 3"
Master Closet - His:
56 sq/ft width 7' 6" x depth 7' 6"
Master Suite:
300 sq/ft width 15' x depth 20'
Optional Bath:
43 sq/ft
Recreation Room:
290 sq/ft width 17' 3" x depth 16' 10"
What's Included In This Plan Set
- Purchasing a CAD set, PDF set, or Reproducible set, gives you an unlimited build license. All other plan sets, allow you to build the home one time.

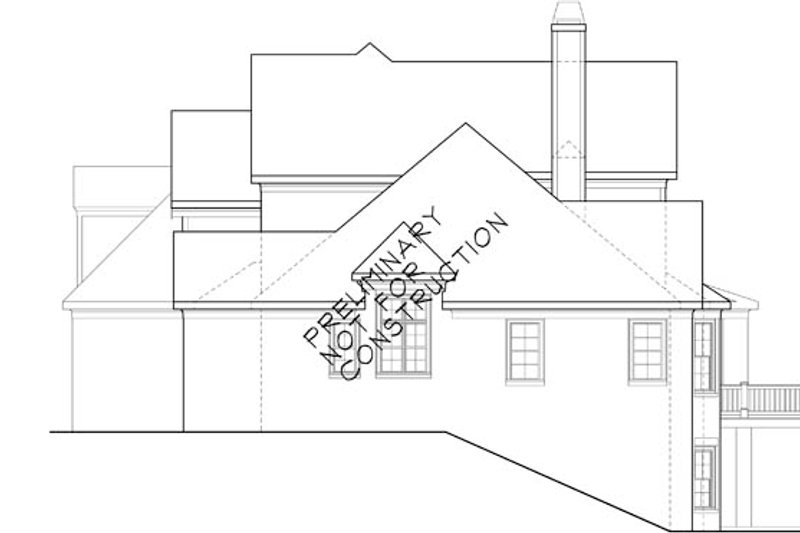

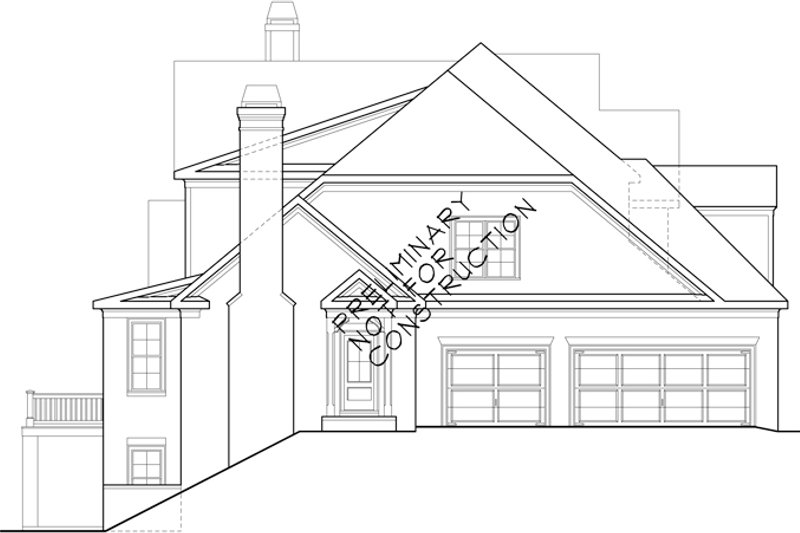

- All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
- Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.

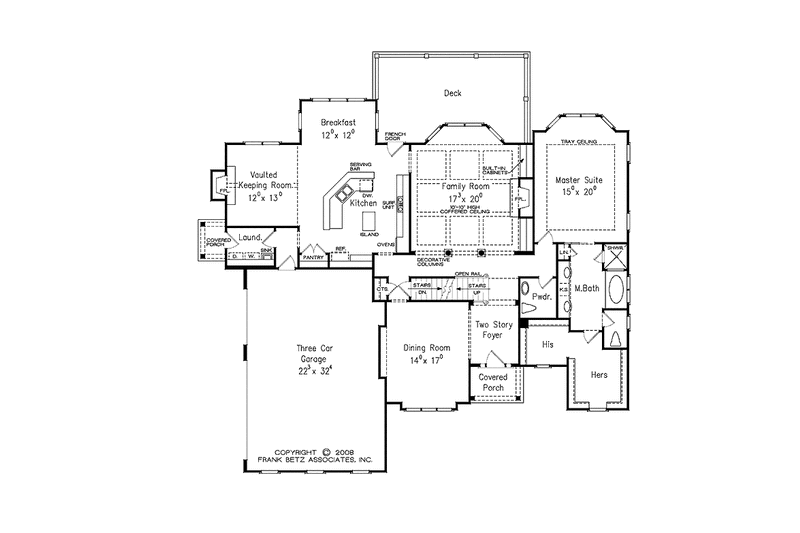

- Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
- The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
- Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
- The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
Questions? Call 1-888-447-1946
Plan Set
| 5 Copy Set : $1266.50 |
5 printed plan sets mailed to you. |
| 8 Copy Set : $1343.00 |
8 printed plan sets mailed to you. |
| PDF Set : $1470.50 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set : $1542.75 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set : $2805.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Daylight Basement: $0.00 |
Ideal for sloping lot, lower level of home partially underground. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Right-Reading Reverse : $212.50 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $38.25 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $85.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $33.15 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $170.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Material List : $72.25 |
A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options. |
| Mirror Reversed Sets : $46.75 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
