Full Specs & Features
Depth : 57'
Height : 28' 4"
Width : 75' 8"
Basement Living: 1482 sq/ft
First Floor: 2249 sq/ft
Garage: 755 sq/ft
Main Ceiling : 9'
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x6"
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Suited For Sloping Lot
Suited For View Lot
Covered Front Porch
What's Included In This Plan Set
- Cover sheet with front rendering

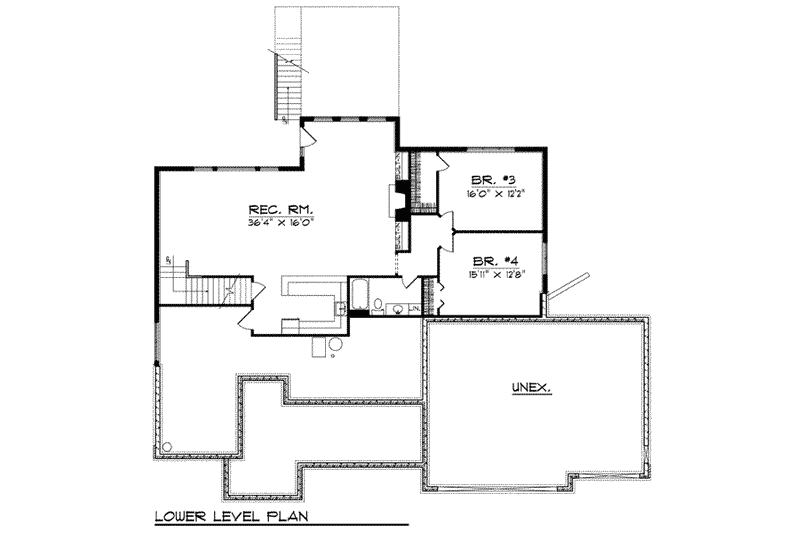

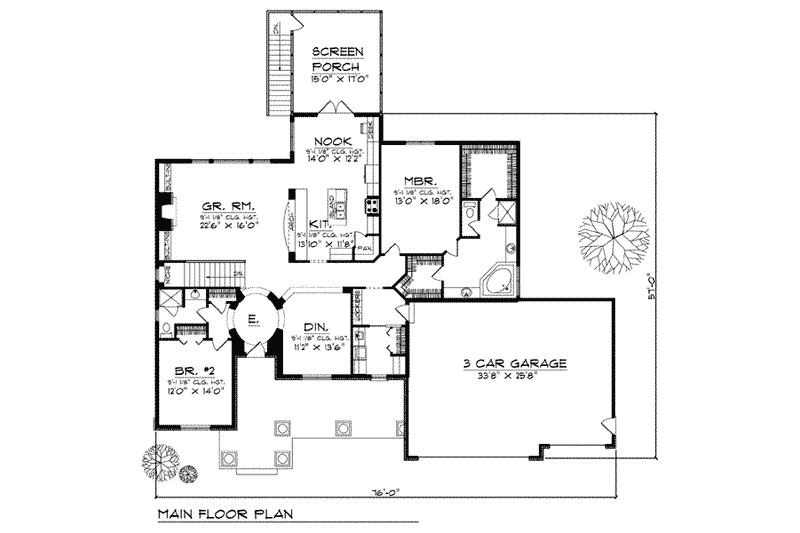

- Foundation and floor plans at 1/4" = 1' scale

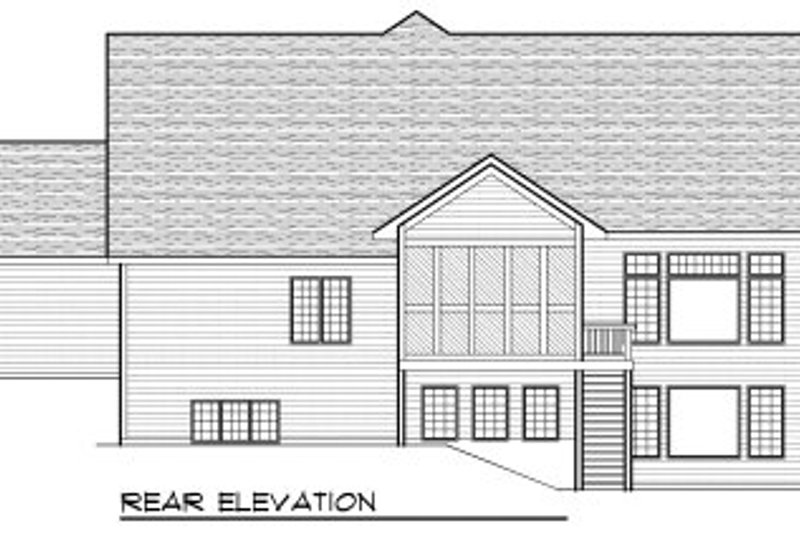

- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
