PLAN 84-613

Tudor Exterior - Front Elevation Plan #84-613
Tudor Exterior - Rear Elevation Plan #84-613

Select Plan Set Options

What's included?
Additional Construction Sets
$45.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
$67.50
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
NOW $990.00
You save $110.00
(10% savings)
Sale ends soon!
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 84-613

Key Specs


3702
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


Keeping up the Jones was never easier with this executive plan. A rich European elevation features stone, arched windows & metal bay roof. Huge gourmet kitchen is perfect for entertaining, & large family has room for everyone. Oversized bedrooms & walk-in closets & sophisticated master suite pamper the whole family. Upstairs gameroom has room for pool table & big screen TV seating, & has a generous deck in case you have a view of a lake or golf course.

Full Specs & Features


Dimension
Depth : 92' 6"
Height : 31' 10"
Width : 62' 10"
Area
Deck: 231 sq/ft
First Floor: 3072 sq/ft
Garage: 774 sq/ft
Second Floor: 630 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : 11' Tier in Master 10' Vault in Bdrm 4 9' Tier in Gameroom
Garage Ceiling : 9'
Main Ceiling : 12'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : gables
Secondary Pitch : 12;12
Exterior Wall Framing
Exterior Wall Finish : stone
Framing : 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Rooms

Bedroom 2:

width 14' x depth 12'

Bedroom 3:

width 14' x depth 12'

Bedroom 4:

width 14' x depth 12'

Deck:

231 sq/ft width 22' 6" x depth 10'

Dining:

width 16' x depth 13'

Family Room:

width 27' 4" x depth 21'

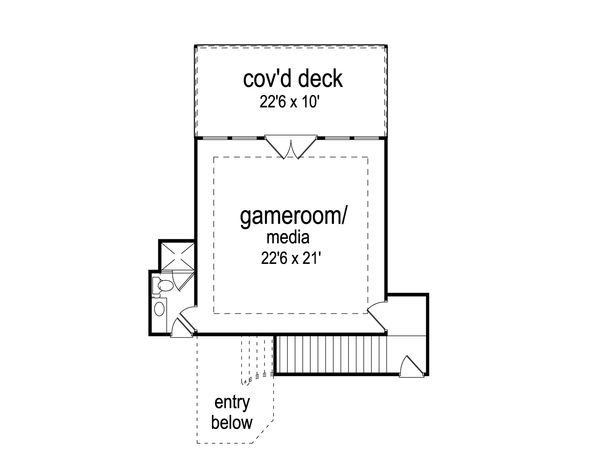

Game Room:

width 22' 6" x depth 21'

Garage:

774 sq/ft width 21' 8" x depth 30' 4"

Kitchen:

width 16' 4" x depth 14' 6"

Master Bedroom:

width 17' x depth 19'

Porch Front:

142 sq/ft

Porch Rear:

200 sq/ft width 21' x depth 9' 6"

What's Included In This Plan Set


  • FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
  • FRONT RENDERING: 1/4" Scale

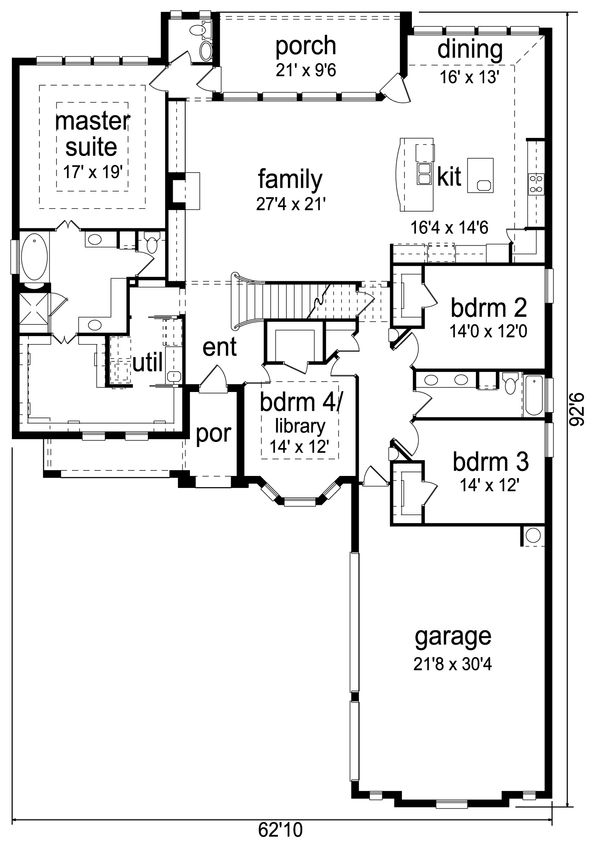

  • FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.
  • ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
  • ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
  • STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
» See important information before purchasing.
Questions? Call 1-888-447-1946
Plan Set
PDF Set :
$990.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1044.00
5 printed plan sets mailed to you.
8 Copy Set :
$1134.00
8 printed plan sets mailed to you.
Reproducible Set :
$1134.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$1912.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$864.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse :
$180.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
$45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$90.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$180.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
$67.50
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Recently Viewed Floor Plans
