Plan Description

This mediterranean design floor plan is 3752 sq ft and has 5 bedrooms and 4.5 bathrooms.

Floor Plans

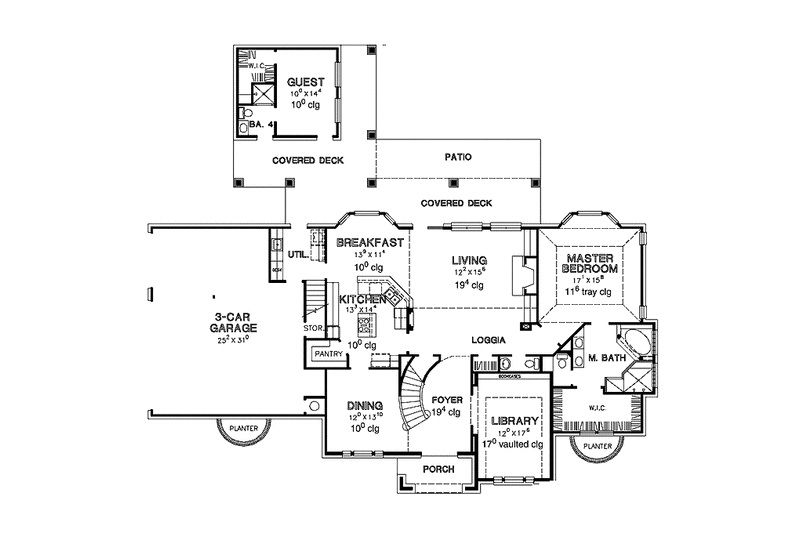

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

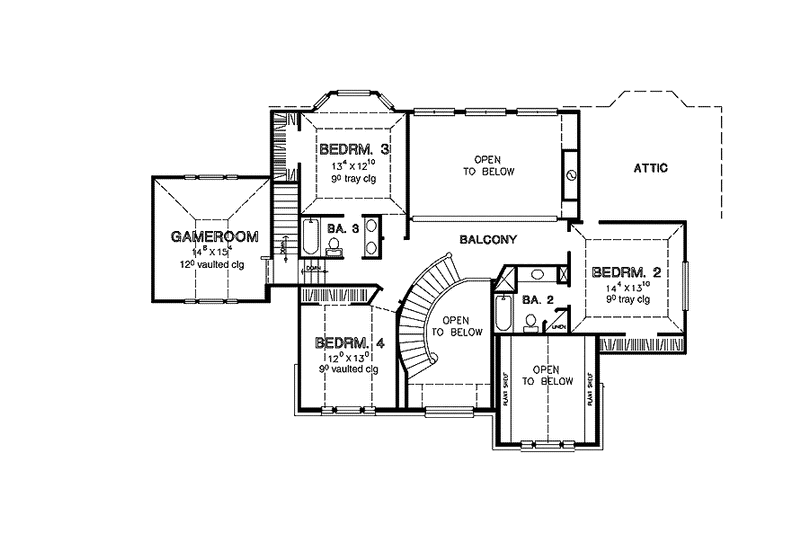

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 75'

Height : 28'

Width : 85'

Area

Basement Unfinished: 2225 sq/ft

First Floor: 2460 sq/ft height 10'

Second Floor: 1292 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Roof Framing : Conventional

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Guest Suite

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Hobby Rec Room Game Room

Loft

Master Sitting Area

Storage Area

Outdoor Spaces

Balcony

Courtyard

Covered Front Porch

Deck

What's Included In This Plan Set

See a sample plan set

ELECTRICAL SCHEMATIC
EXTERIOR ELEVATIONS
CABINET ELEVATIONS
CEILING FRAMING
ROOF FRAMING
FOUNDATION OF CHOICE AS AVAILABLE (SLAB, CRAWLSPACE OR BASEMENT) APPROPRIATE FOUNDATION DETAIL SHEET
BUILDING CROSS SECTION IF MULTISTORY
ALSO 4 PAGE FHA DESCRIPTION OF MATERIALS FORM (NOT A MATERIALS LIST OF QUANTITIES)
GENERIC WALL SECTIONS
