PLAN 119-419
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Floor Plans

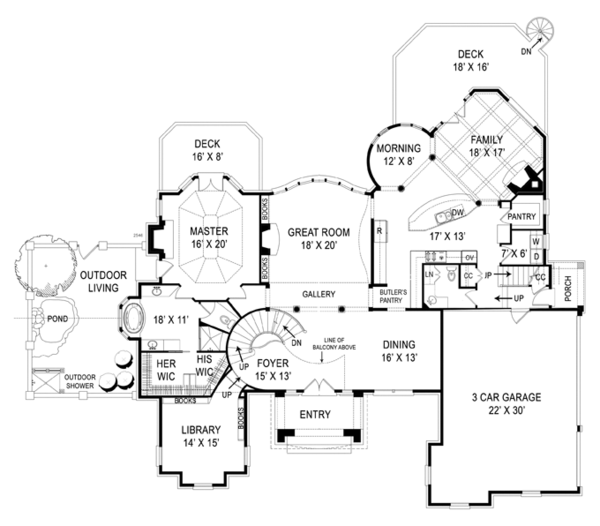

Floor Plan - Main Floor

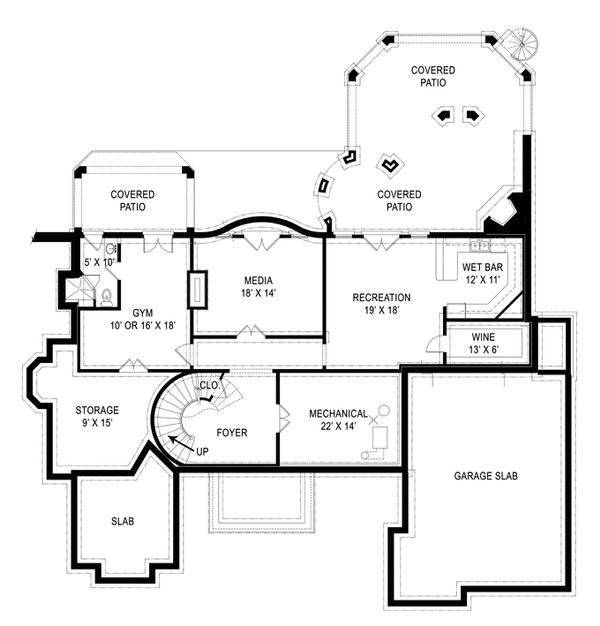

Floor Plan - Lower Floor

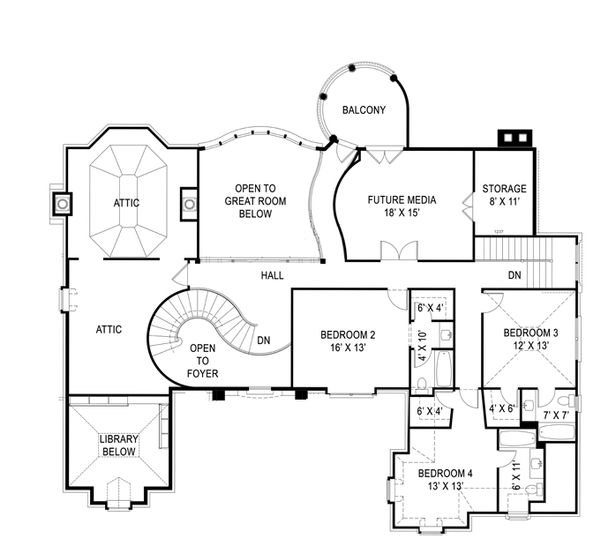

Floor Plan - Upper Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 68'
Height : 39' 6"
Width : 75'
Height : 39' 6"
Width : 75'
Area
Basement Unfinished: 1434 sq/ft height 10'
Bonus: 355 sq/ft
First Floor: 2565 sq/ft height 10'
Garage: 735 sq/ft
Second Floor: 1212 sq/ft height 9' 6"
Bonus: 355 sq/ft
First Floor: 2565 sq/ft height 10'
Garage: 735 sq/ft
Second Floor: 1212 sq/ft height 9' 6"
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 18:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 18:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Open Floor Plan
Unfinished Future Space
Vaulted / Cathedral Ceilings
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Open Floor Plan
Unfinished Future Space
Vaulted / Cathedral Ceilings
Garage Features
Side Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Covered Front Porch
Covered Rear Porch
Rooms
Bath 2:
width 4' x depth 10'
Bath 3:
width 7' x depth 7'
Bath 4:
width 6' x depth 11'
Bedroom 2:
width 16' x depth 13'
Bedroom 2 W/I Closet:
width 6' x depth 4'
Bedroom 3:
width 12' x depth 13'
Bedroom 3 W/I Closet:
width 4' x depth 6'
Bedroom 3 W/I Closet:
width 6' x depth 4'
Bedroom 4:
width 13' x depth 13'
Deck 1:
width 16' x depth 8'
Deck 2:
width 18' x depth 16'
Dining Room:
width 16' x depth 13'
Family Room:
width 18' x depth 17'
Foyer:
width 15' x depth 13'
Great Room:
width 18' x depth 20'
Kitchen:
width 17' x depth 13'
Laundry Room:
width 7' x depth 6'
Library:
width 14' x depth 15'
Master Bath:
width 18' x depth 11'
Master Bedroom:
width 16' x depth 20'
Morning Room:
width 12' x depth 8'
Storage:
width 8' x depth 11'
What's Included In This Plan Set
- Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
- Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
- First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
- Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
- Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
- Second Floor Lighting: The same details as provided for the first floor.
- Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.

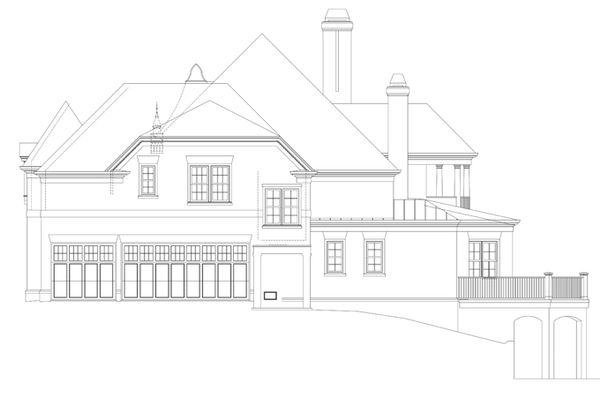

- Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
- Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
- Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
- Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
- General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
Questions? Call 1-888-447-1946
Plan Set
| PDF Set : $1695.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy Set : $1875.00 |
5 printed plan sets mailed to you. |
| 5 Copy and PDF Set : $1975.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Single Build : $2495.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Single Set : $1205.00 |
One printed set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Daylight Basement: $0.00 |
Ideal for sloping lot, lower level of home partially underground. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse : $200.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Unlimited Use License : $795.00 |
Unlimited Use License. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
