PLAN 17-2674
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans

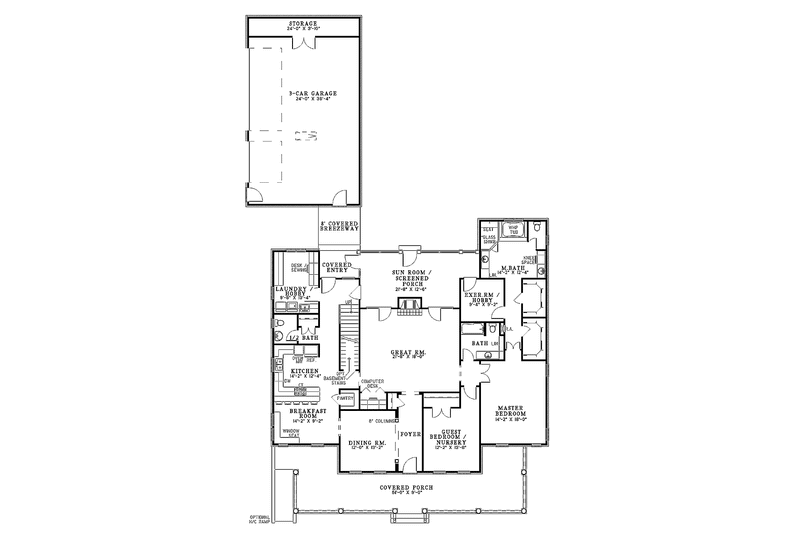

Floor Plan - Main Floor

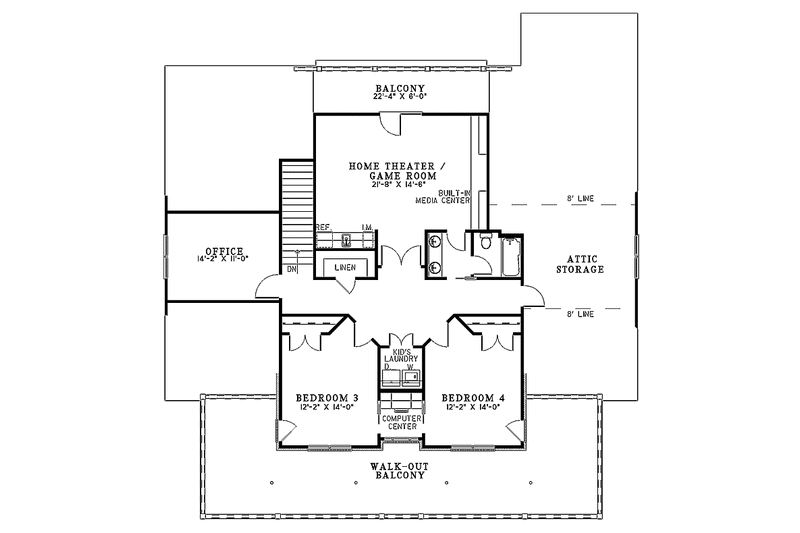

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 108' 6"
Height : 32' 2"
Width : 65' 6"
Area
First Floor: 2484 sq/ft height 9'
Second Floor: 1336 sq/ft height 9'
Roof
Primary Pitch : 10:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Walk In Closet
Kitchen Features
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Exercise Room
Great Room Living Room
Loft
Media Room
Storage Area
Sunroom
Outdoor Spaces
Balcony
Covered Front Porch
Screened Porch
Rooms
Balcony:
133 sq/ft width 22' 4" x depth 6'
Bedroom 3:
170 sq/ft width 12' 2" x depth 14'
Bedroom 4:
170 sq/ft width 12' 2" x depth 14'
Breakfast Area:
174 sq/ft width 14' 2" x depth 12' 4"
Covered Porch:
459 sq/ft width 51' x depth 9'
Dining Room:
158 sq/ft width 13' 2" x depth 12'
Exercise Room:
85 sq/ft width 9' 4" x depth 9' 2"
Garage:
871 sq/ft width 24' x depth 36' 4"
Garage Storage:
91 sq/ft width 24' x depth 3' 10"
Great Room:
390 sq/ft width 21' 8" x depth 18'
Guest Bedroom:
166 sq/ft width 12' 2" x depth 13' 8"
Home Theater:
314 sq/ft width 21' 8" x depth 14' 6"
Kitchen:
174 sq/ft width 14' 2" x depth 12' 4"
Laundry Room:
128 sq/ft width 9' 8" x depth 13' 4"
Master Bathroom:
174 sq/ft width 14' 2" x depth 12' 4"
Master Bedroom:
255 sq/ft width 14' 2" x depth 18'
Office:
155 sq/ft width 14' 2" x depth 11'
Sun Room:
270 sq/ft width 21' 8" x depth 12' 6"
