Key Specs


3857
sq ft

3
Beds

4.5
Baths

3
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


Ornate Italianate styling belies the surprising modernity of this narrow-lot layout. Inside, the kitchen offers lots of counter space and a view of both the family room and breakfast nook. Take the swirling staircase or the handy elevator (a terrific feature for long-term accessibility in the home) to the second or third floors. The master suite displays a sitting room, two huge walk-in closets (one opens directly into the laundry room for supreme convenience), and a spacious bathroom. Two more bedrooms (each with its own bathroom) plus a study complete the floor. On the top level, a large game room with a full bathroom creates the perfect spot for a party or visiting guests.

Floor Plans

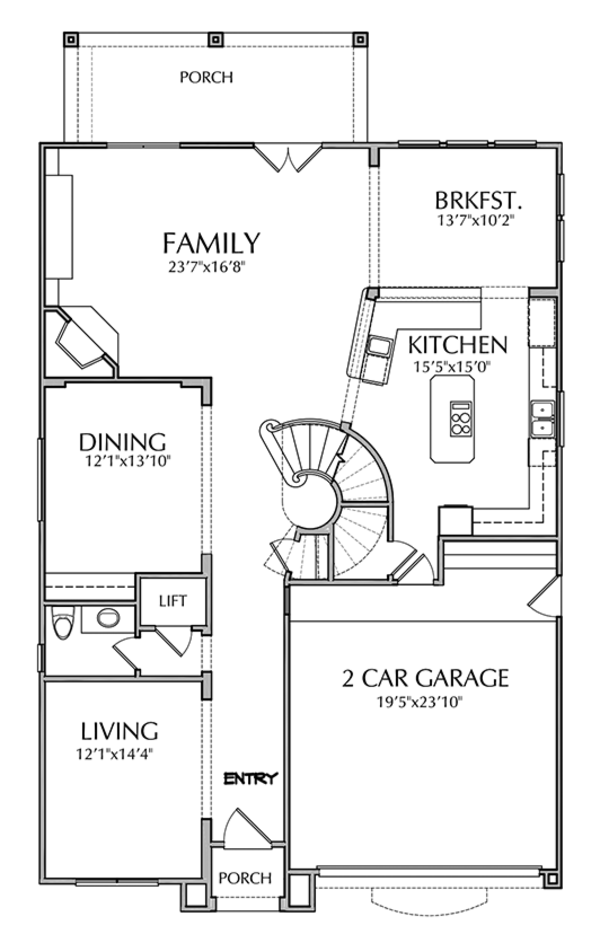

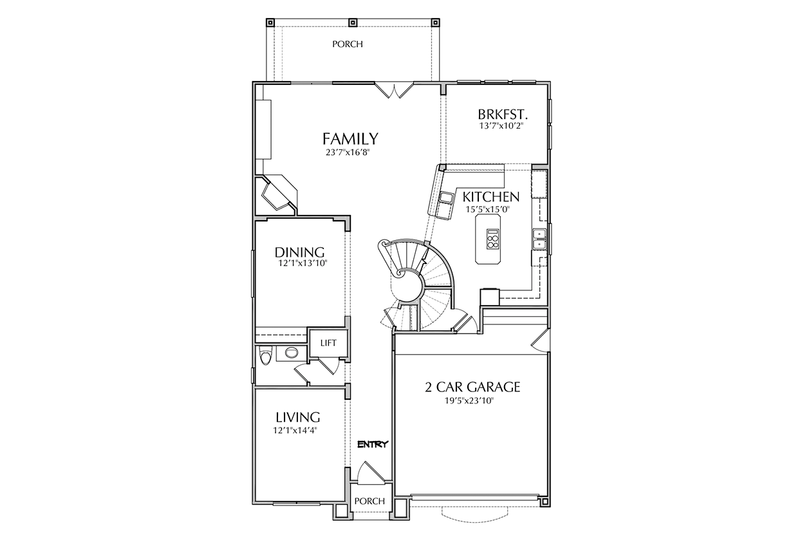

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #1021-15

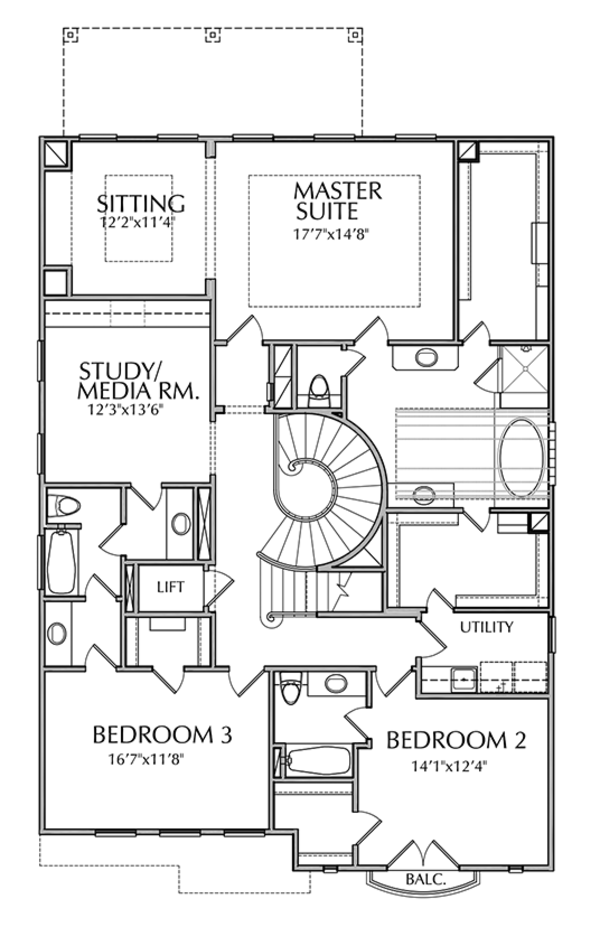

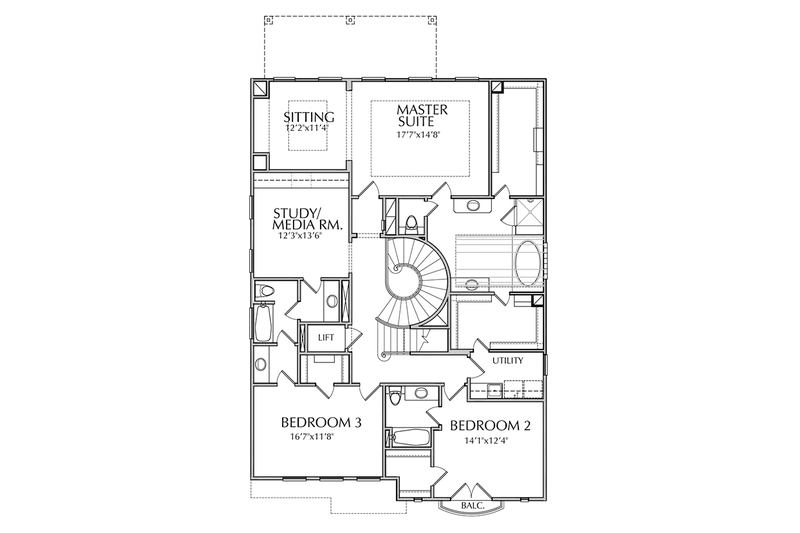

Floor Plan - Upper Floor Plan
Mediterranean Floor Plan - Upper Floor Plan Plan #1021-15

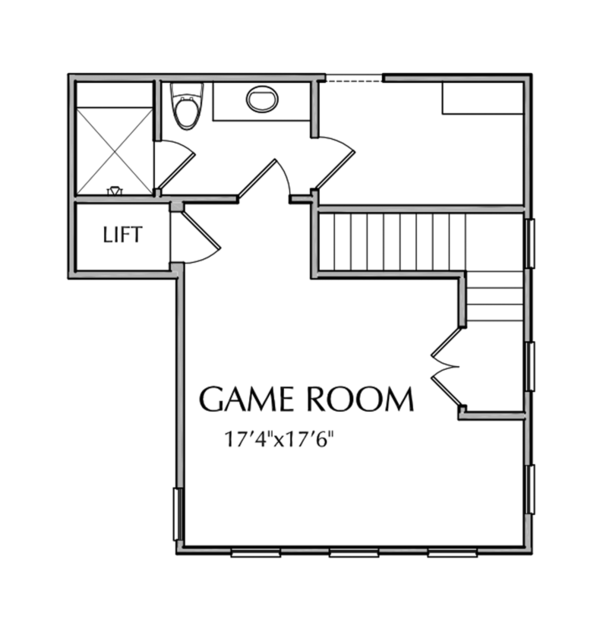

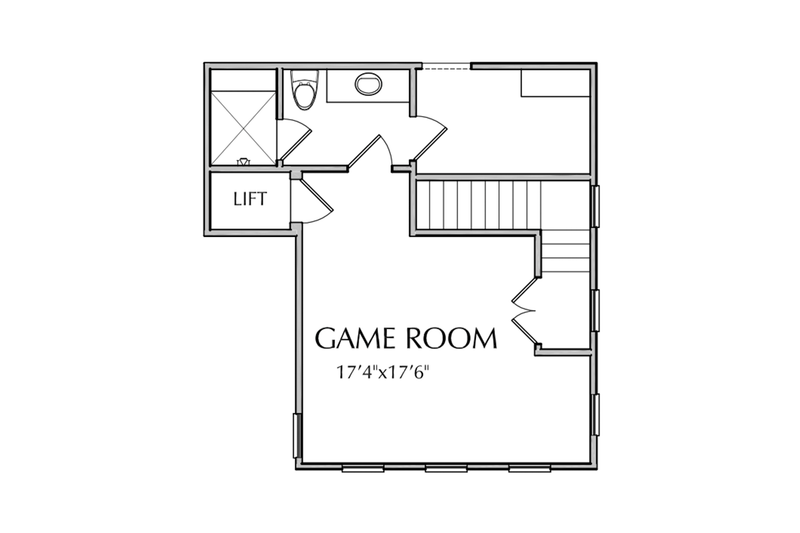

Floor Plan - Other Floor Plan
Mediterranean Floor Plan - Other Floor Plan Plan #1021-15

Full Specs & Features


Dimension
Depth : 63' 8"
Height : 36' 9"
Width : 37' 10"
Area
First Floor: 1560 sq/ft height 10'
Garage: 449 sq/ft
Second Floor: 1919 sq/ft height 10'
Third Floor: 378 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 5:12
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Fireplace
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Master Sitting Area
Storage Area
Upstairs Laundry
Loft
Open Floor Plan
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Balcony
More
Wheelchair Adaptable
Rooms

Bedroom 2:

174 sq/ft width 14' 1" x depth 12' 4"

Bedroom 3:

192 sq/ft width 16' 5" x depth 11' 8"

Breakfast:

138 sq/ft width 13' 7" x depth 10' 2"

Dining Room:

167 sq/ft width 12' 1" x depth 13' 10"

Family Room:

393 sq/ft width 23' 7" x depth 16' 8"

Game Room:

243 sq/ft width 12' 10" x depth 18' 10"

Garage:

470 sq/ft width 19' 5" x depth 23' 10"

Kitchen:

231 sq/ft width 15' 5" x depth 15'

Living Room:

173 sq/ft width 12' 1" x depth 14' 4"

Master Sitting:

138 sq/ft width 12' 2" x depth 11' 4"

Master Suite:

258 sq/ft width 17' 7" x depth 14' 8"

Study/ Media:

165 sq/ft width 12' 3" x depth 13' 6"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
