PLAN 928-184

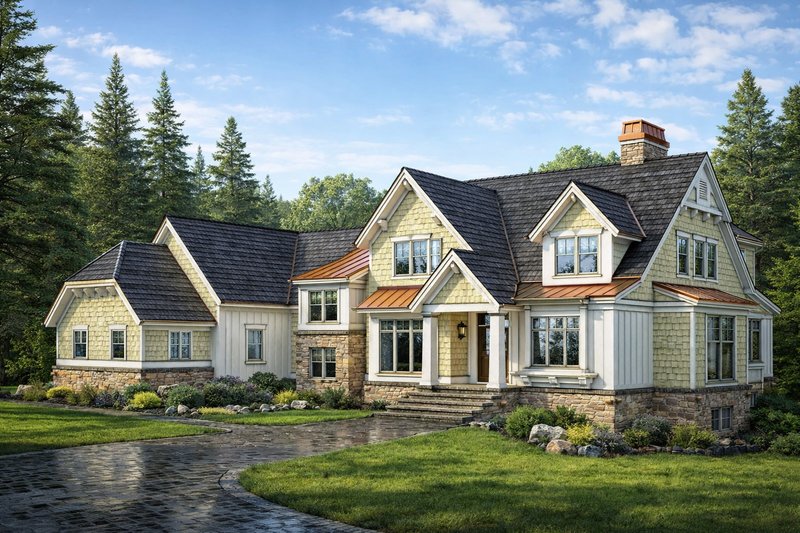

Craftsman Exterior - Front Elevation Plan #928-184

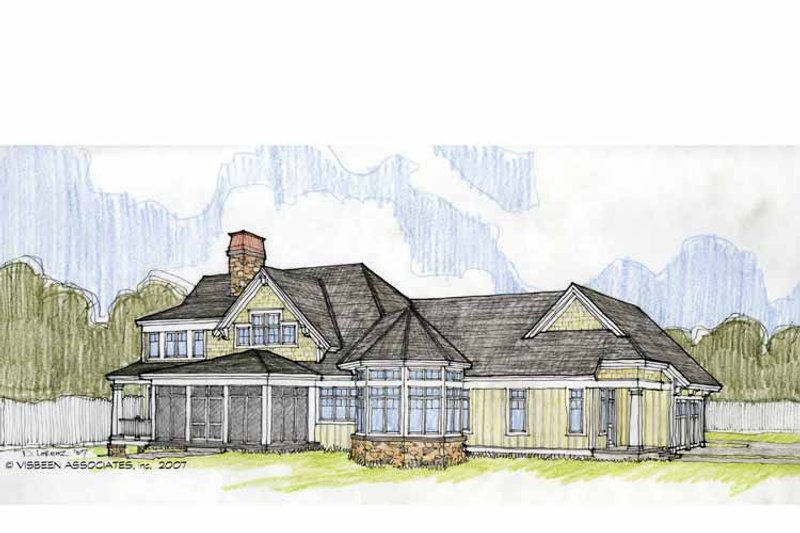

Craftsman Exterior - Rear Elevation Plan #928-184

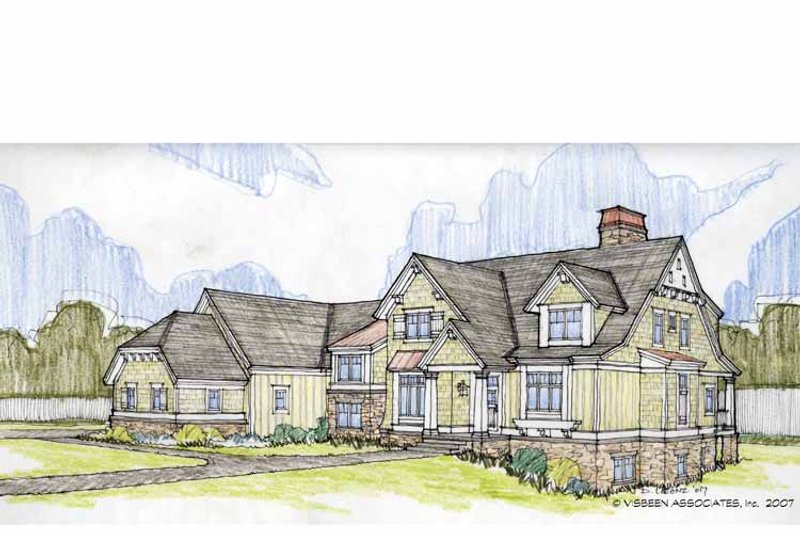

Craftsman Exterior - Front Elevation Plan #928-184

Select Plan Set Options

What's included?
NOW $1345.50
You save $149.50
(10% savings)
Sale ends soon!
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 928-184

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

Loaded with farmhouse flavor, this Shingle-style design from Visbeen Associates has a rustic charm that would be welcome on any street. Interesting roof lines, transom windows, and a columned entrance mark the exterior. A large living area dominates the home’s core, leading to an equally large screened patio. The right side of the floor plan is occupied by a private master bedroom suite, which enjoys access to a covered deck. The spacious kitchen and octagonal dining area are to the left. Upstairs are two additional family bedrooms and a bunk room. If finished, the lower level holds an expansive recreation area, a guest bedroom, and a wine cellar.

Floor Plans

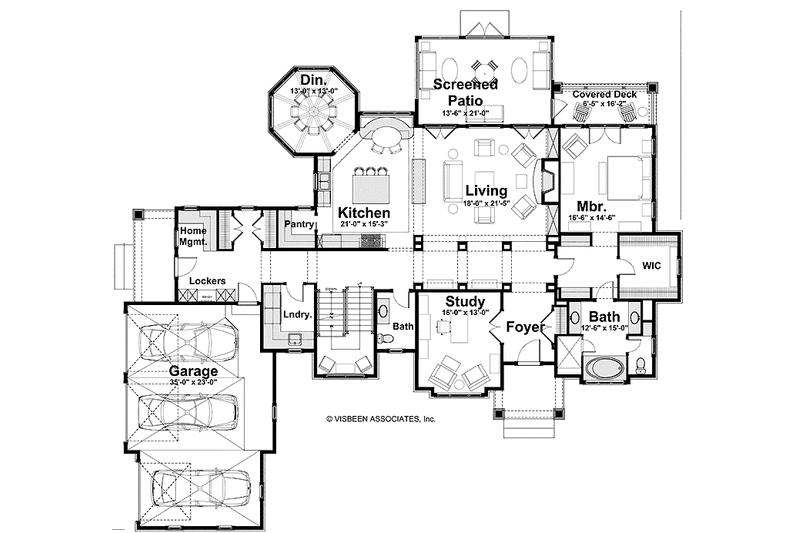

Floor Plan - Main Floor Plan

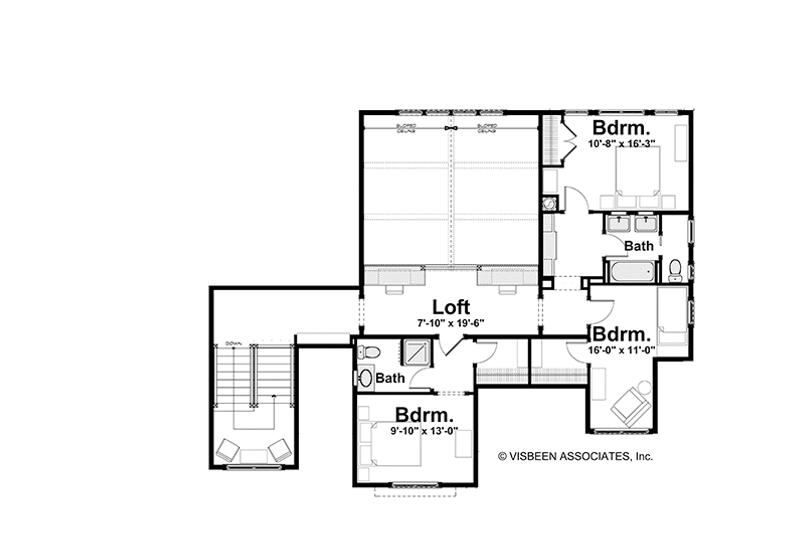

Floor Plan - Upper Floor Plan

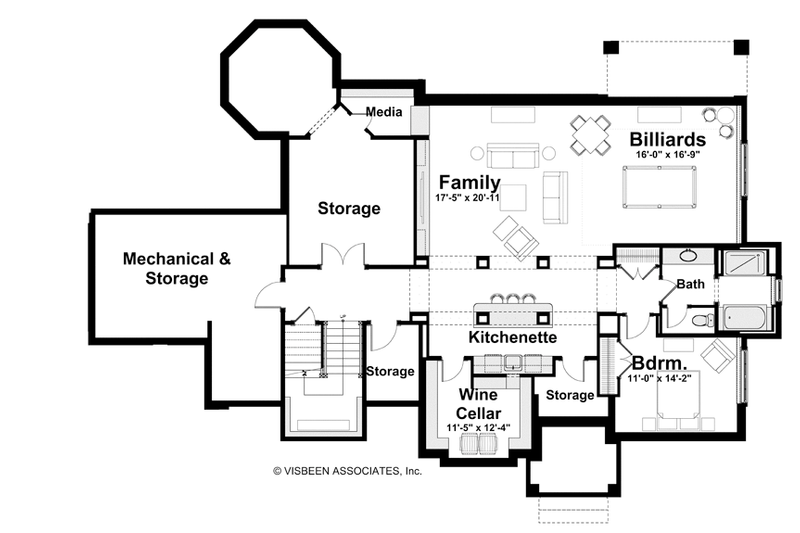

Floor Plan - Lower Floor Plan

Full Specs & Features

Depth : 88'
Height : 32' 6"
Width : 88'
Basement Unfinished: 2769 sq/ft height 9'
First Floor: 2769 sq/ft height 10'
Second Floor: 1109 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Mud Room
Open Floor Plan
Unfinished Future Space
Vaulted / Cathedral Ceilings
Wine Cellar
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Rear Porch
Screened Porch

Bedroom 2:

176 sq/ft width 16' x depth 11'

Bedroom 3:

127 sq/ft width 9' 10" x depth 13'

Bedroom 4:

173 sq/ft width 10' 8" x depth 16' 3"

Bedroom 5:

155 sq/ft width 11' x depth 14' 2"

Billiards Room:

268 sq/ft width 16' x depth 16' 9"

Family Room:

364 sq/ft width 17' 5" x depth 20' 11"


805 sq/ft width 35' x depth 23'


320 sq/ft width 21' x depth 15' 3"

Living Room:

385 sq/ft width 18' x depth 21' 5"


152 sq/ft width 7' 10" x depth 19' 6"

Master Bathroom:

187 sq/ft width 12' 6" x depth 15'

Master Bedroom:

239 sq/ft width 16' 6" x depth 14' 6"


283 sq/ft width 13' 6" x depth 21'


208 sq/ft width 16' x depth 13'

Wine Cellar:

140 sq/ft width 11' 5" x depth 12' 4"

What's Included In This Plan Set

Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.
Questions? Call 1-888-447-1946
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.


Wood 2x6:
Wood 2x6

Additional Options

Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
